Air Injection Hose/Tube: Service and Repair

REMOVAL

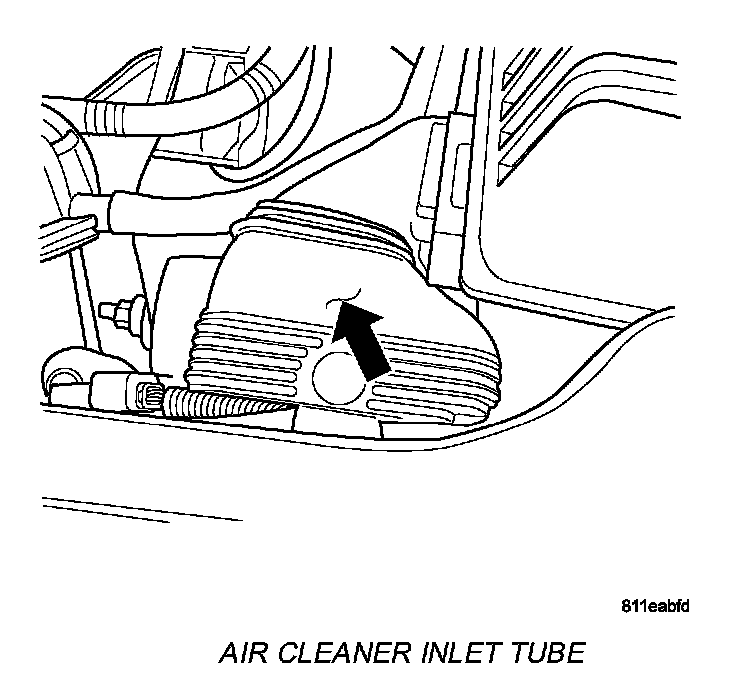

Air Cleaner Inlet Tube:

1. Remove air inlet duct to air cleaner box.

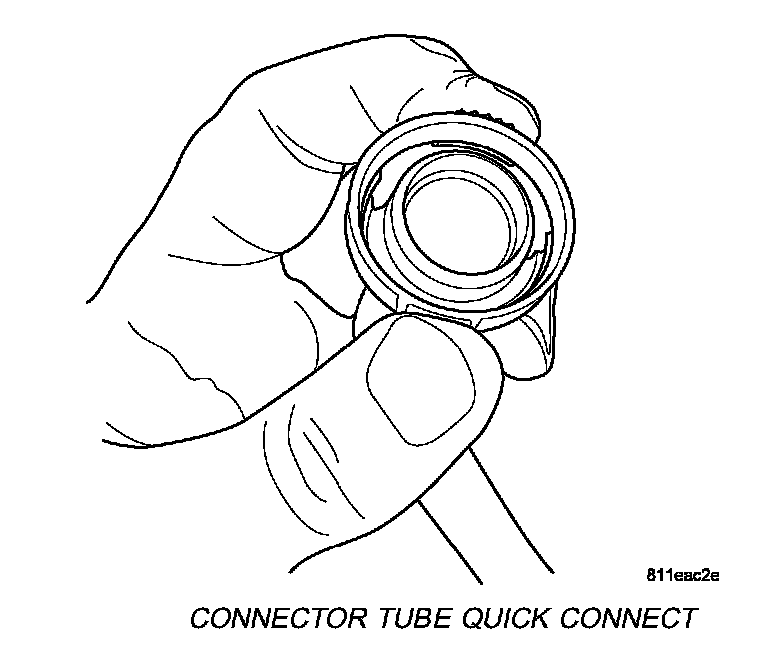

Connector Tube Quick Connect:

2. Squeeze the quick connect on the tube to release it.

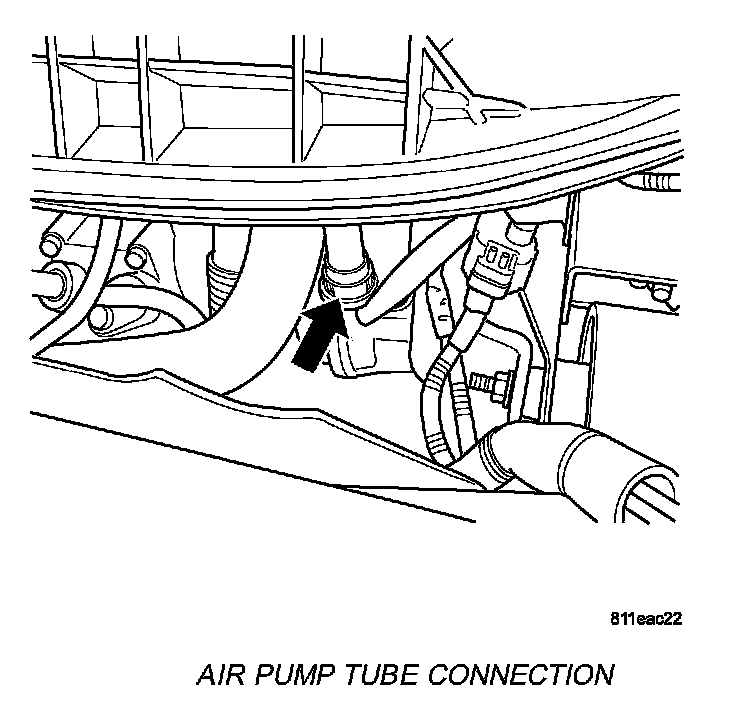

Air Pump Tube Connection:

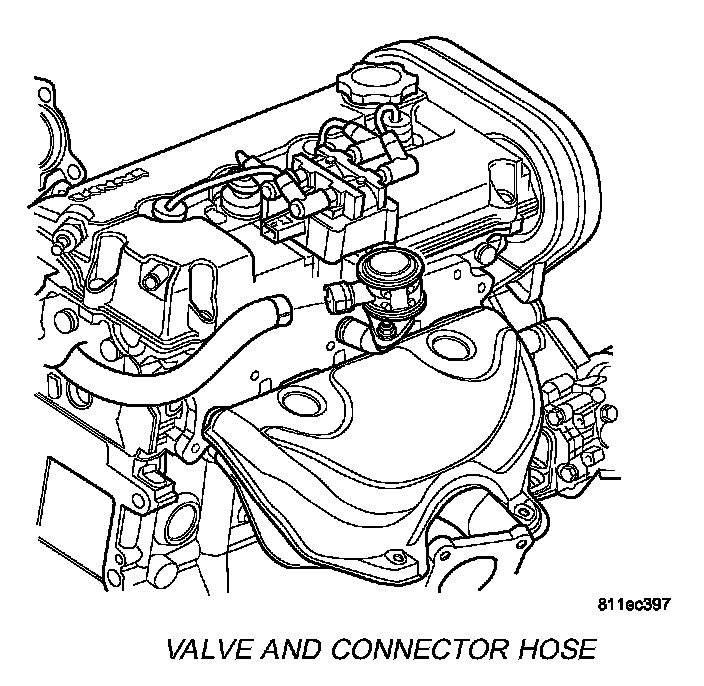

Valve And Connector Hose:

3. Disconnect connector tube at air pump and one way check valve.

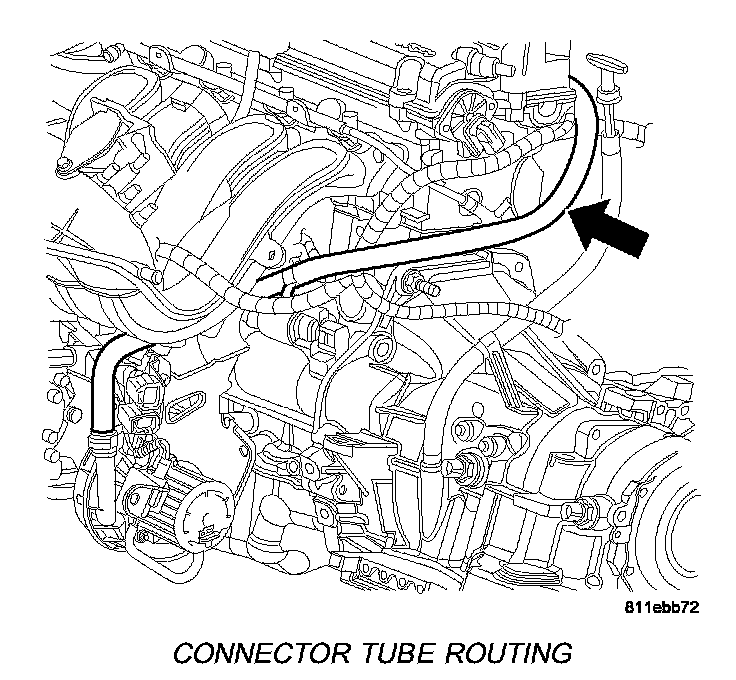

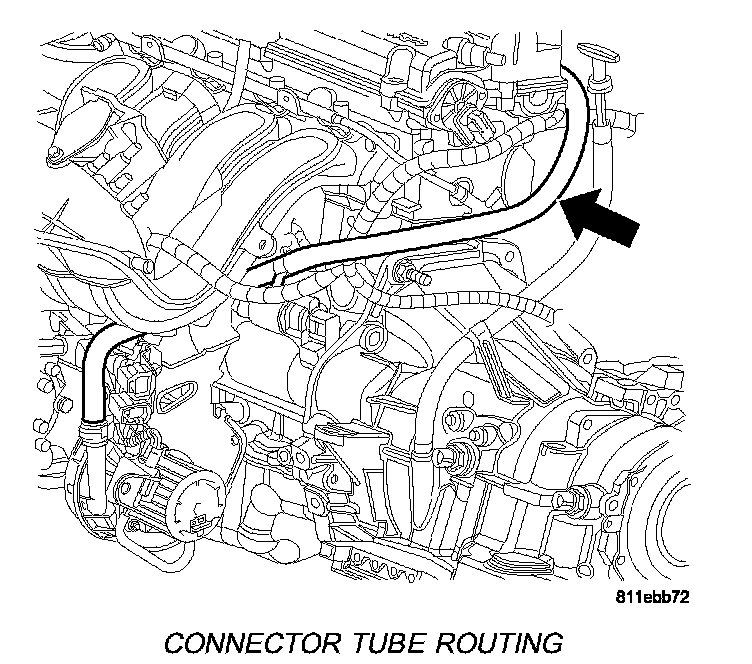

Connector Tube Routing:

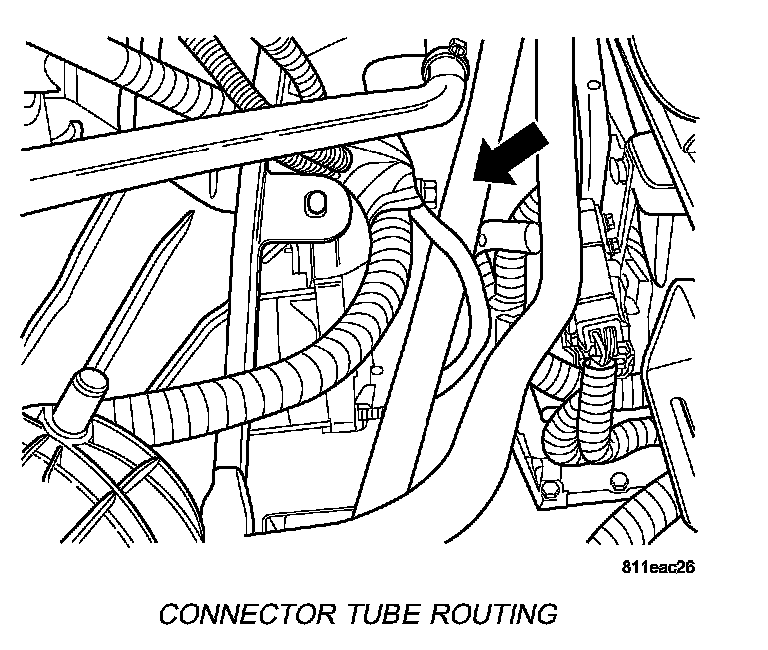

Connector Tube Routing:

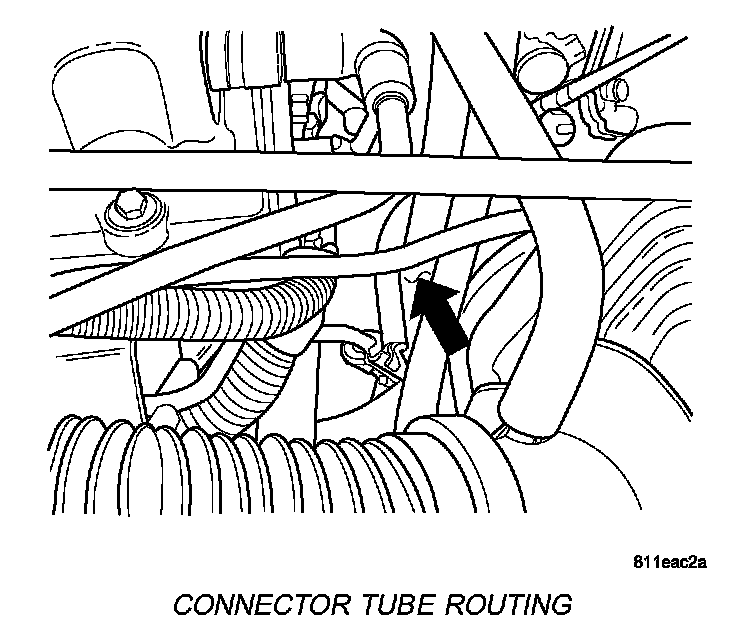

Connector Tube Routing:

4. Remove connector tube, note routing of tube.

INSTALLATION

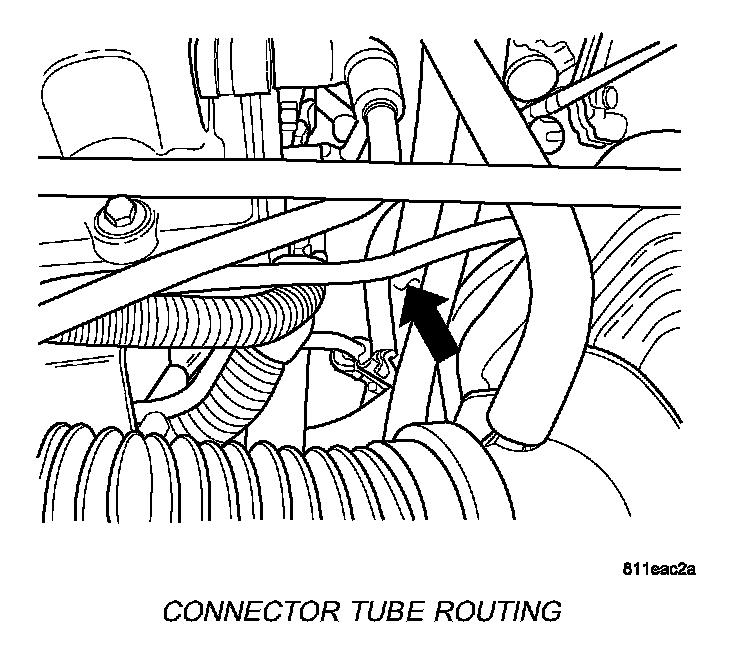

Connector Tube Routing:

Connector Tube Routing:

Connector Tube Routing:

1. Route tube.
2. Connect to one way check valve and tube to air pump.
3. Install air inlet duct to air cleaner box.
