Traction Control Indicator Always on

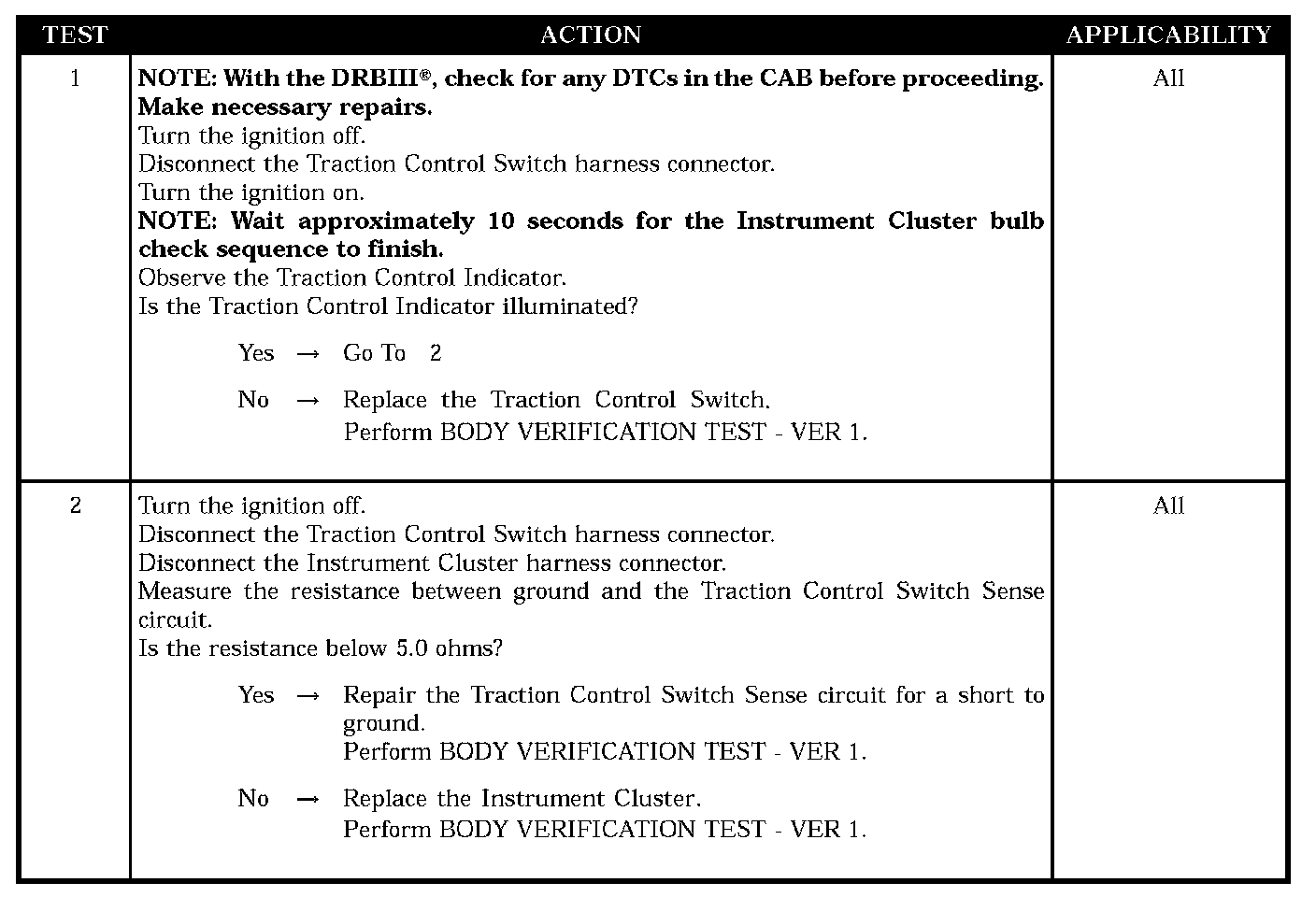

Test 1 - Test 2:






SYMPTOM
TRACTION CONTROL INDICATOR ALWAYS ON

POSSIBLE CAUSES
- Traction control switch
- Traction control switch sense circuit short to ground
- Instrument cluster
