Home >> Chrysler >> 2006 >> Sebring Convertible V6-2.7L VIN R >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Instrument Cluster / Carrier >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Malfunction Indicator Lamp Not Operating Properly

Malfunction Indicator Lamp Not Operating Properly

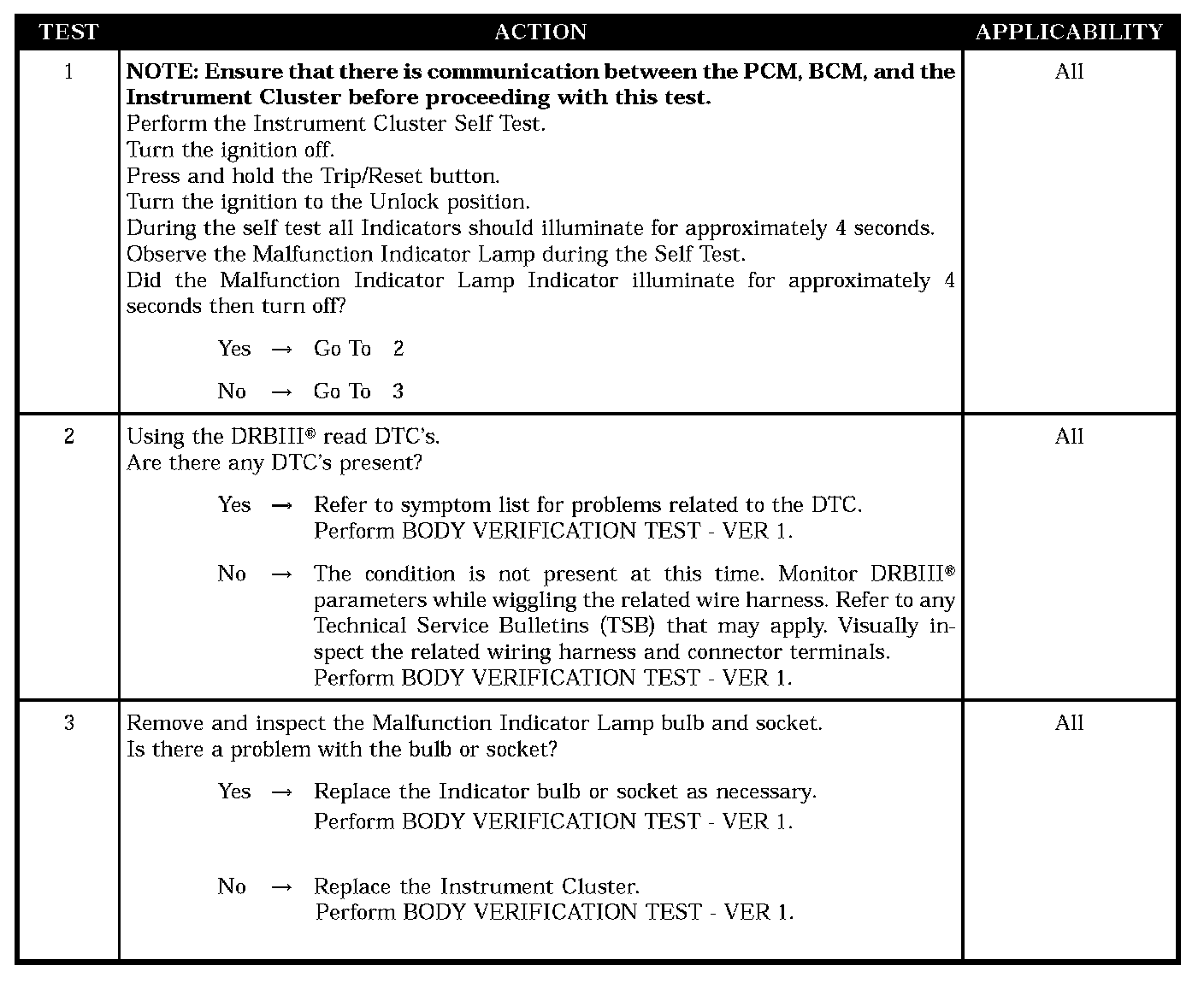

Test 1 - Test 3:






SYMPTOM
MALFUNCTION INDICATOR LAMP NOT OPERATING PROPERLY

POSSIBLE CAUSES
- DTC present
- Intermittent condition
- Indicator bulb or socket
- Instrument cluster
