Chime Sounds With Drivers Door Open and Key Removed From Ignition

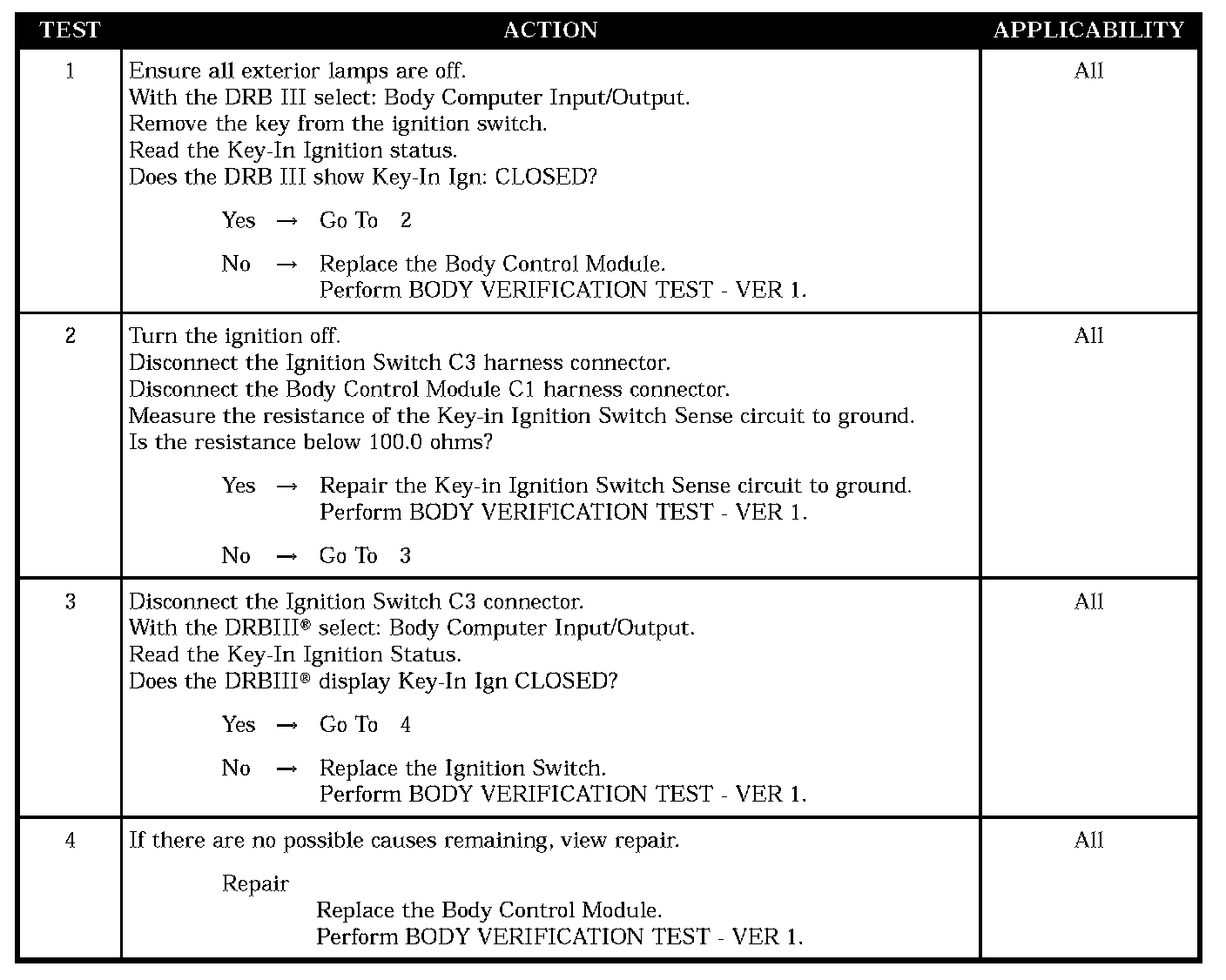

Test 1 - Test 4:






SYMPTOM
CHIME SOUNDS WITH DRIVERS DOOR OPEN AND KEY REMOVED FROM IGNITION

POSSIBLE CAUSES
- KEY-IN ignition switch status wrong
- KEY-IN ignition switch status wrong
- KEY-IN ignition SW sense short to ground
- Body control module - KEY-IN ignition shorted
