Chime Inoperative With Key In Ignition & Driver Door Open

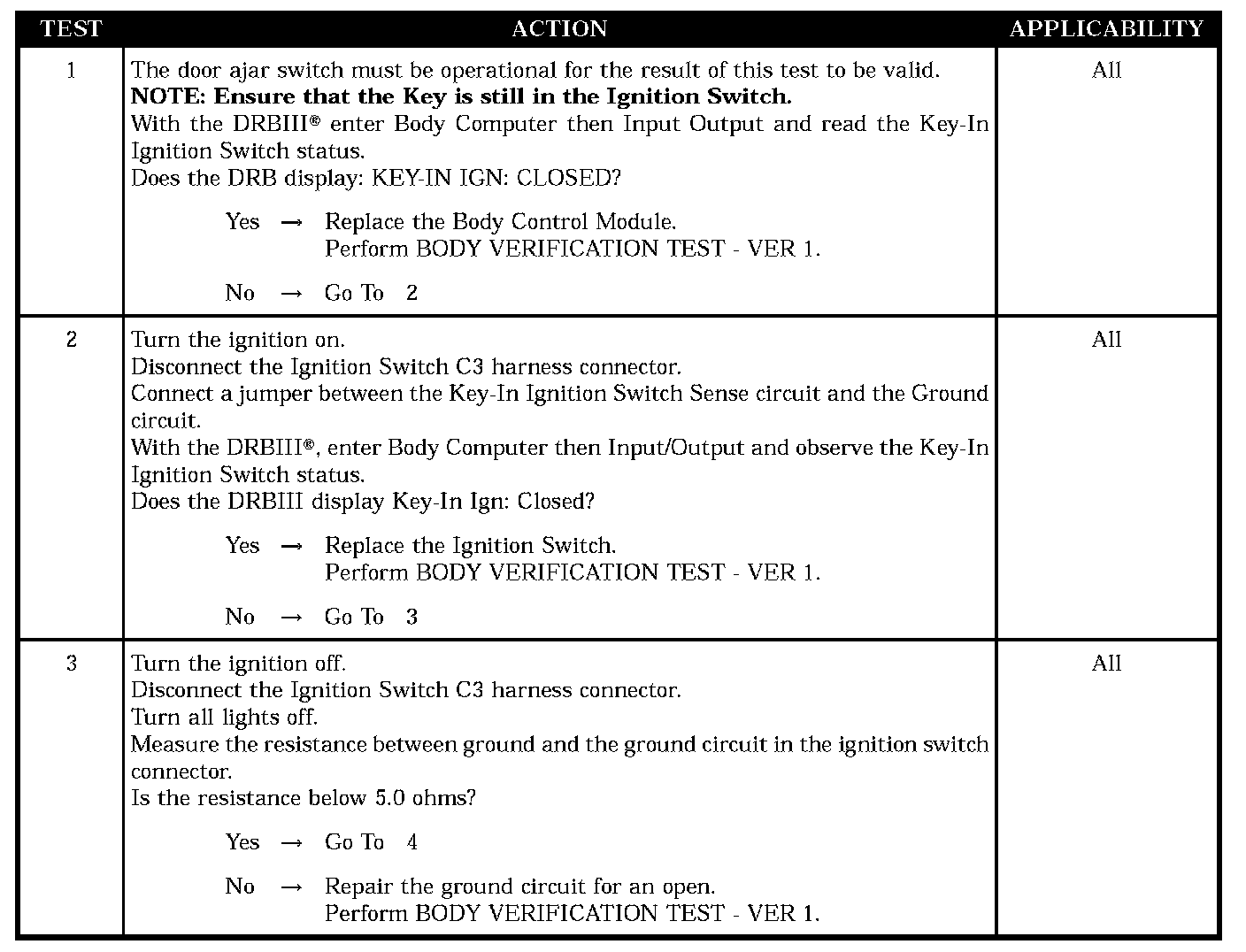

Test 1 - Test 3:

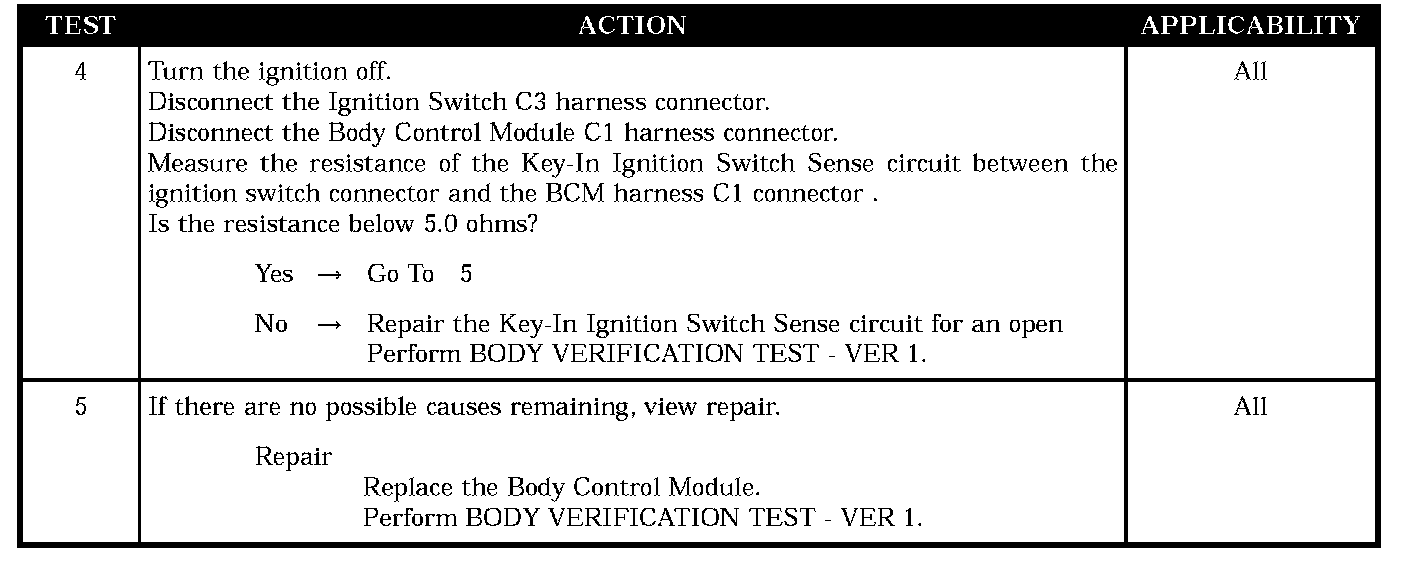

Test 4 - Test 5:

SYMPTOM
CHIME INOPERATIVE WITH KEY-IN IGNITION AND DRIVER DOOR OPEN

POSSIBLE CAUSES
- Observe the KEY-IN ignition switch status
- KEY-IN ignition switch open
- KEY-IN ignition switch ground circuit open
- KEY-IN ignition switch sense circuit open
- BCM - incorrect KEY - IN ignition switch status
