Home >> Chrysler >> 2006 >> Sebring Convertible V6-2.7L VIN R >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Audible Warning Device >> Testing and Inspection >> Chime Inoperative With Exterior Lamps On and Driver Door Open

Chime Inoperative With Exterior Lamps On and Driver Door Open

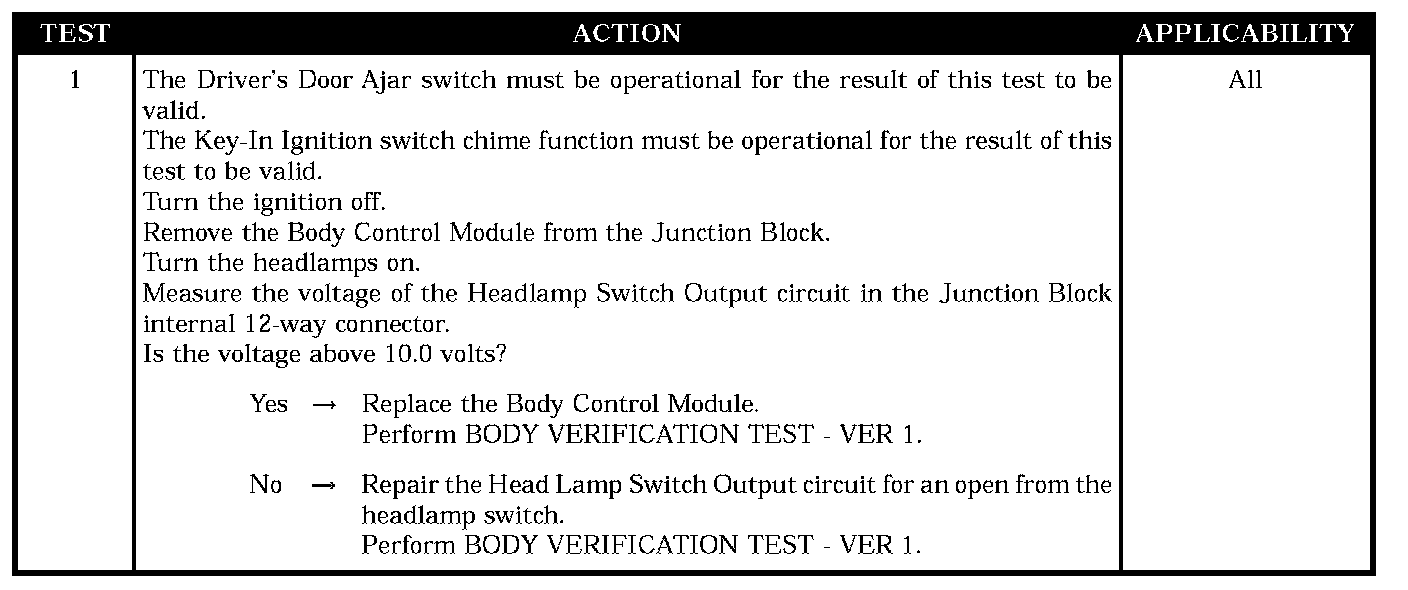

Test 1:






SYMPTOM
CHIME INOPERATIVE WITH EXTERIOR LIGHTS ON AND DRIVERS DOOR OPEN

POSSIBLE CAUSES
- Open headlamp switch output
- Body control module
