Rear Floor Heat Ducts
REAR FLOOR HEAT DUCTSREMOVAL
1. Disconnect and isolate the negative battery cable.
2. Remove the driver and passenger seats.
3. Remove the floor console.

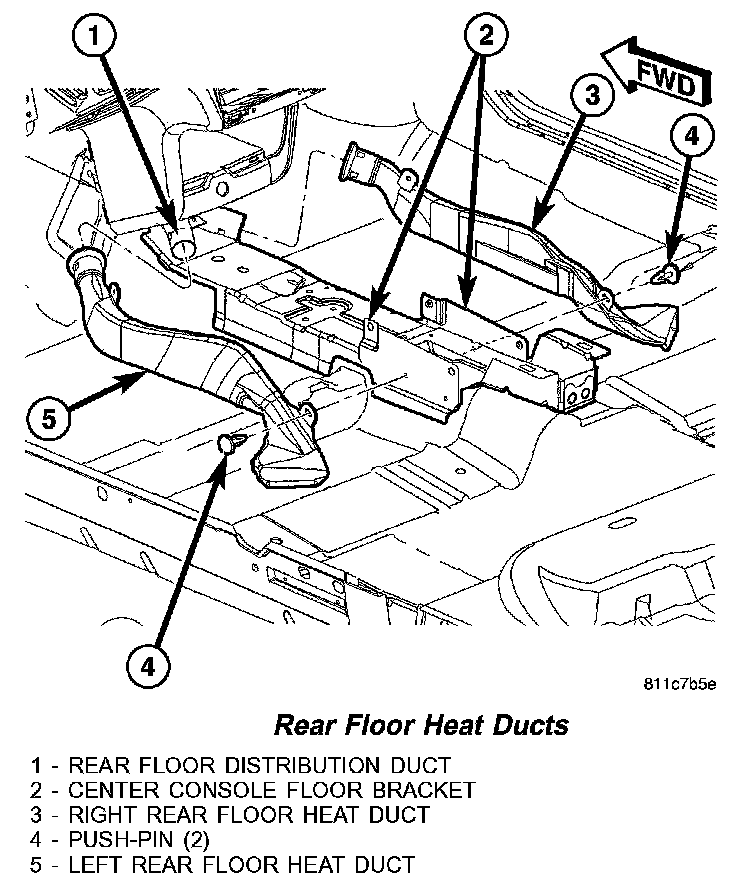

Rear Floor Heat Ducts:
4. Pull the carpet back to gain access to the left and right side rear floor heat ducts.
5. Remove the push-pin that secures the left and right side rear floor heat ducts to the center console floor bracket.
6. Disconnect the left and right side rear floor heat ducts from the rear floor distribution duct and remove them from the vehicle.
7. If required, remove the rear floor distribution duct from the bottom of the HVAC housing.
INSTALLATION
1. Install the rear floor distribution duct to the bottom of the HVAC housing.
2. Install the left and right side rear floor heat ducts to the rear floor distribution duct.
3. Install the push-pin that secures the left and right side rear floor heat ducts to the center console floor bracket.
4. Install the carpet.
5. Install the floor console.
6. Install the driver and passenger seats.
7. Reconnect the negative battery cable.
