Defroster Duct

DEFROSTER DUCT

REMOVAL
1. Remove the instrument panel top pad.

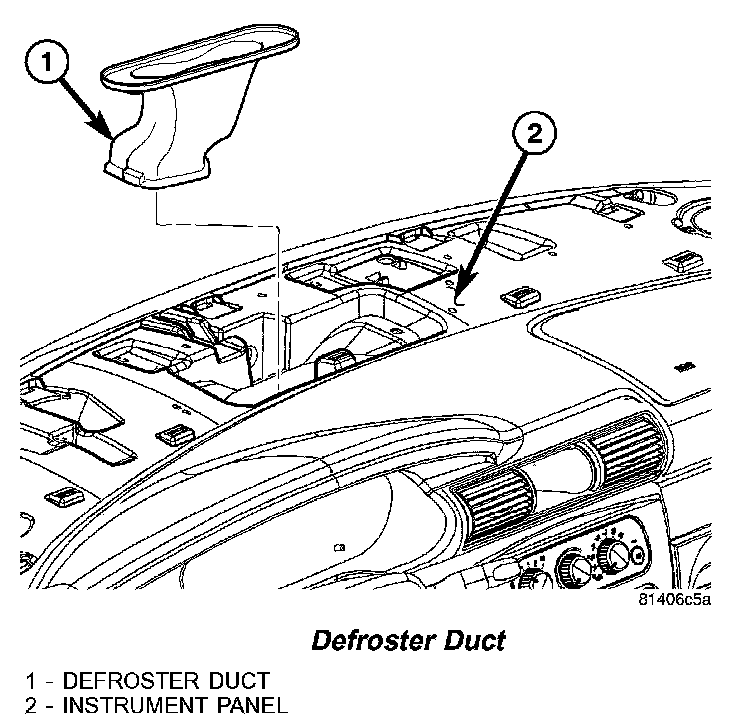

Defroster Duct:

2. Pull the defroster duct straight up to disconnect it from the top of the HVAC housing.
3. Remove the defroster duct from instrument panel.

INSTALLATION
1. Position the defroster duct onto the top of the instrument panel.
2. Install the defroster duct to the HVAC housing through the opening in the instrument panel. Make sure that the defroster duct is fully engaged to the HVAC housing.
3. Install the instrument panel top pad.
