Air Outlet Barrels

AIR OUTLET BARRELS

REMOVAL

NOTE: The instrument panel air outlet barrels are retained to the pivots within the air outlets by a snap fit.

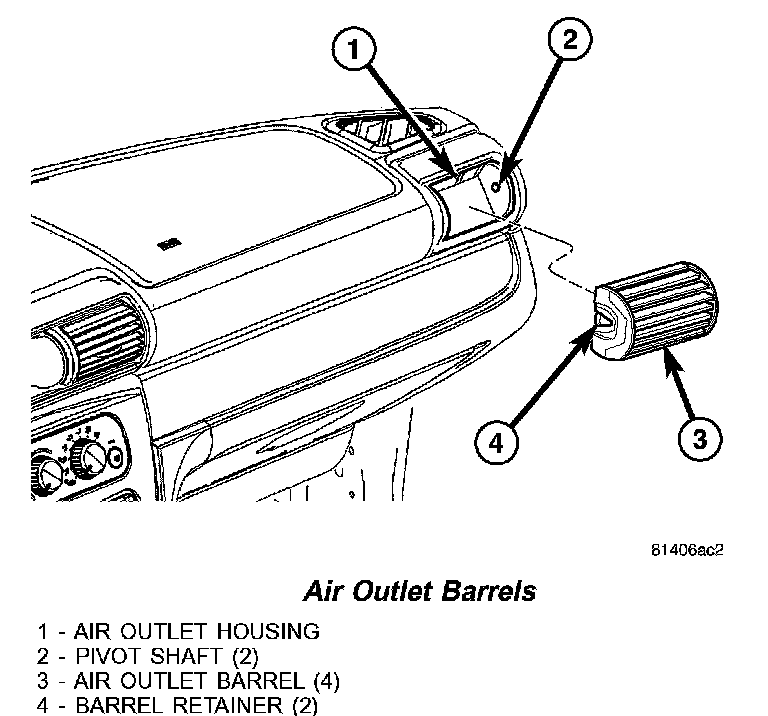

Air Outlet Barrels:

1. Using a trim stick or another suitable wide flat-bladed tool, gently pry on the air outlet barrel until the barrel retainers release from the barrel pivots of the air outlet housing.
2. Remove the air outlet barrel(s) from the instrument panel air outlet(s) as required. If needed, use a trim stick to help remove the barrels.

INSTALLATION
1. Position the air outlet barrel(s) to the air out-let(s) as required.
2. Install the air outlet barrel onto the pivot shaft on the right side of the air outlet.
3. Gently push the air outlet barrel onto the pivot shaft on the left side of the instrument panel air outlet until it snaps into position on the pivot shaft.
