Air Outlet

AIR OUTLET

NOTE: Only the right outboard air outlet can be removed individually for service replacement. The other instrument panel air outlets are part of the instrument cluster bezel and cannot be serviced separately.

REMOVAL
1. Remove the right instrument panel trim bezel.

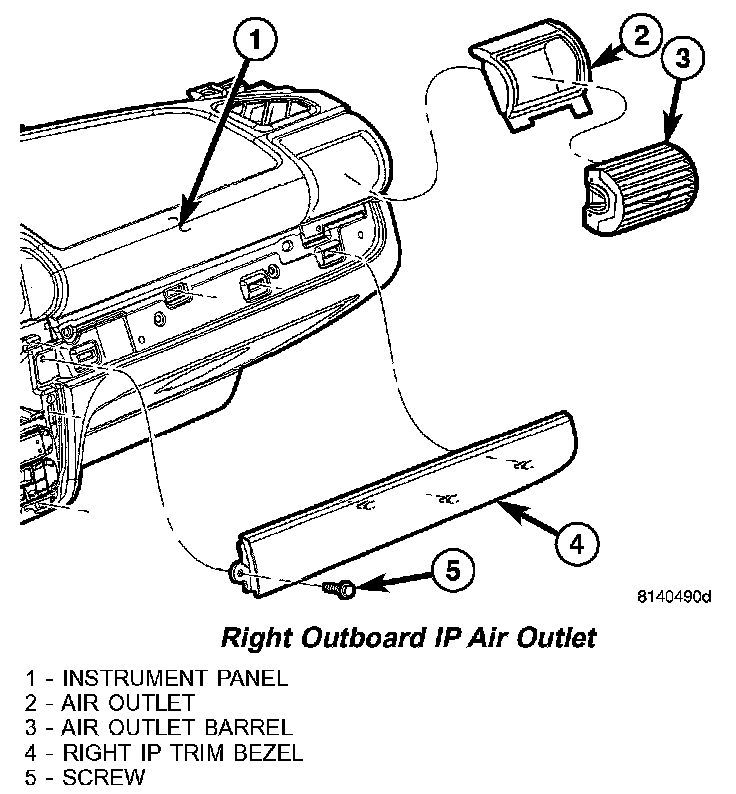

Right Outboard IP Air Outlet:

2. Using a trim stick or another suitable wide flat-bladed tool, gently pry out the air outlet barrel from the instrument panel air outlet located on the right outboard end of the instrument panel.
3. Remove the screws that secure the air outlet to the right outboard end of the instrument panel and remove the outlet.

INSTALLATION
1. Position the air outlet onto the right outboard end of the instrument panel.
2. Install the screws that secure the air outlet to the instrument panel. Tighten the screws to 2 N.m (17 in. lbs.).
3. Install the air outlet barrel into the air outlet by gently pushing the barrel into the outlet until it snaps firmly into position.
4. Install the right instrument panel trim bezel.
