Front Crankshaft Seal: Service and Repair

CRANKSHAFT OIL SEAL FRONT

REMOVAL
1. Remove crankshaft vibration damper.

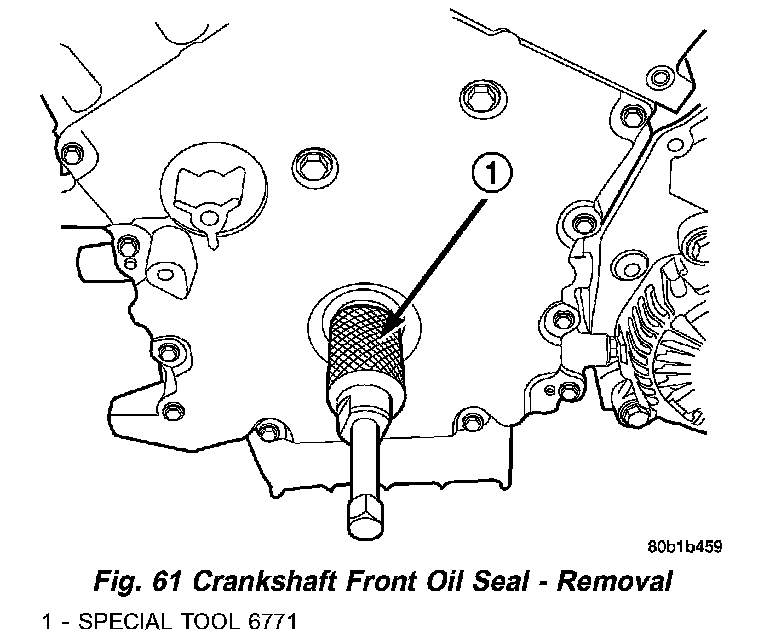

Fig. 61:

2. Install Special Tool 8194, Insert into crankshaft nose. Remove seal using Special Tool 6771, Remover (Fig. 61).

INSTALLATION

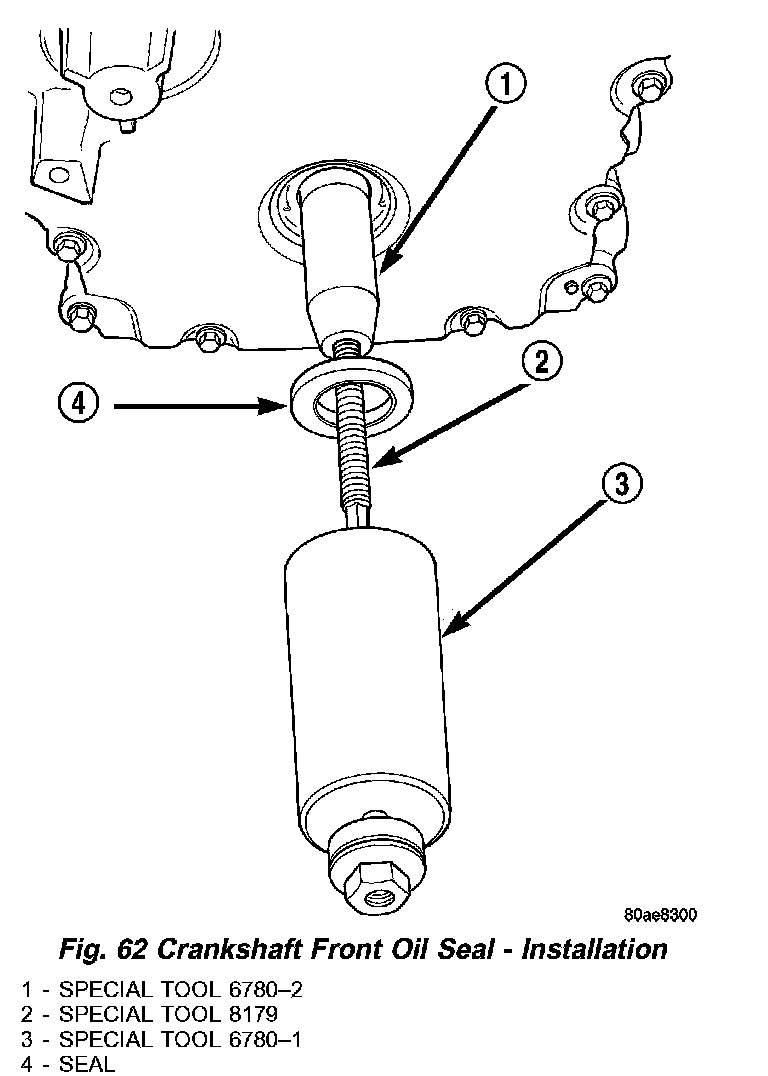

Fig. 62:

1. Install new seal using Special Tools 6780-2 Sleeve, 6780-1 Installer, and 8179 Stud (Fig. 62).
2. Install crankshaft vibration damper.
