Ignition Coil
Ignition Coil

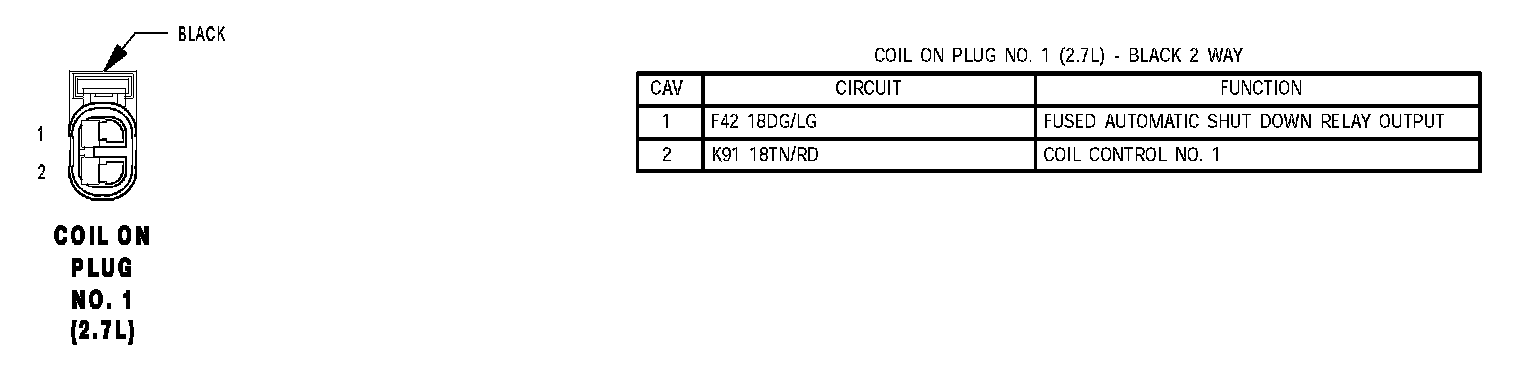

Coil On Plug No.1 (2.7L):

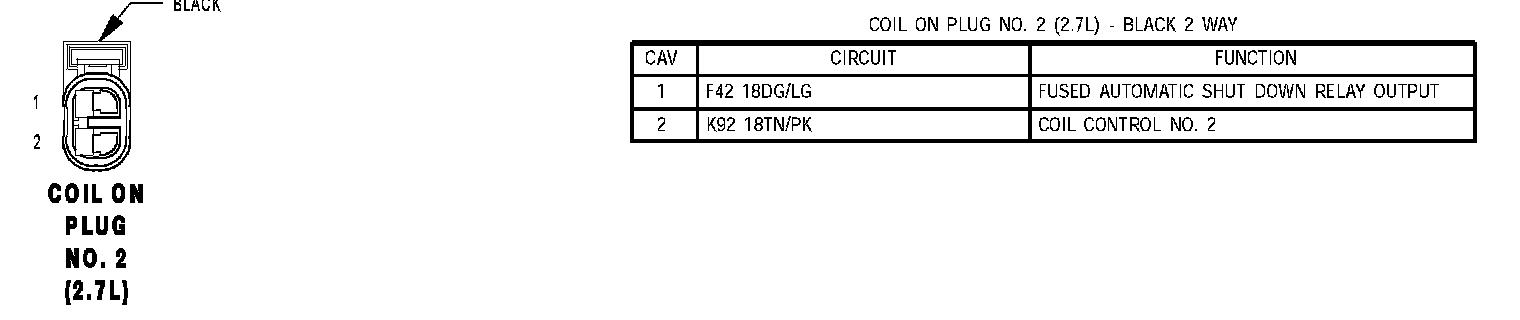

Coil On Plug No.2 (2.7L):

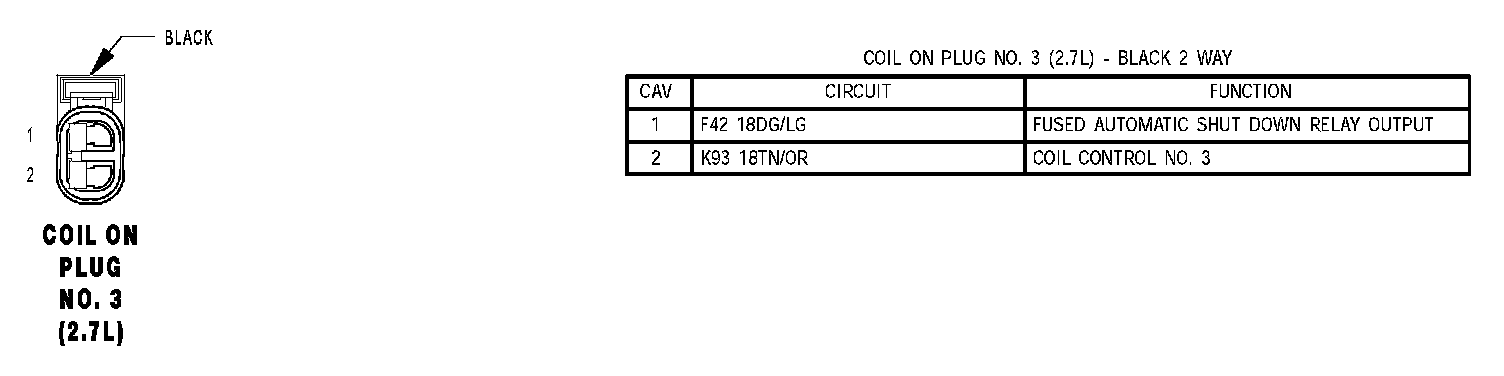

Coil On Plug No.3 (2.7L):

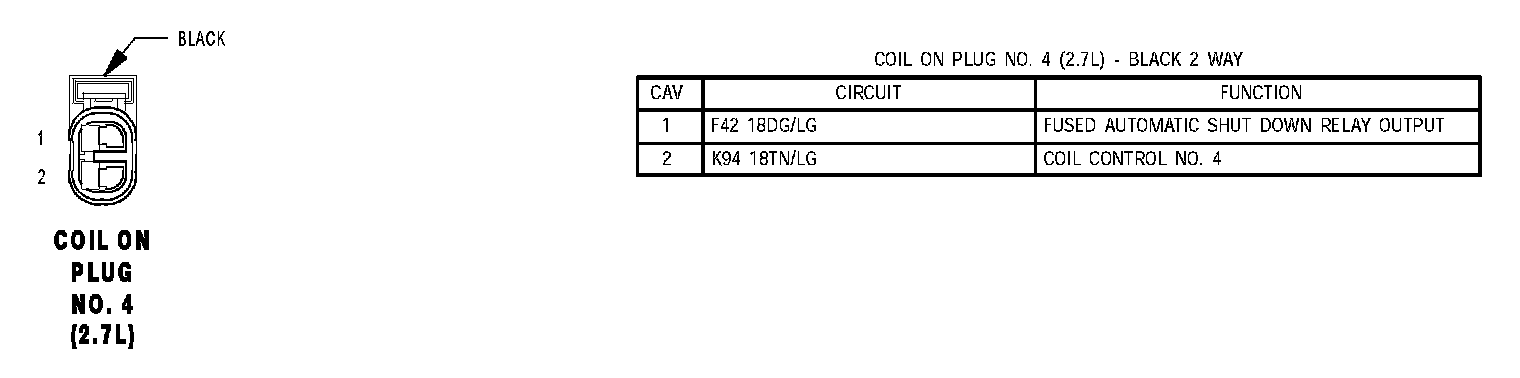

Coil On Plug No.4 (2.7L):

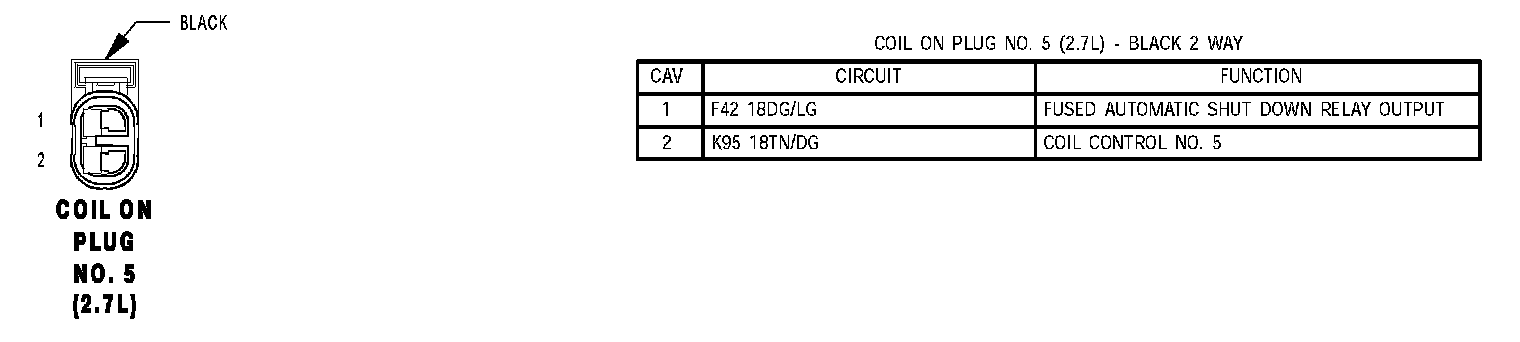

Coil On Plug No.5 (2.7L):

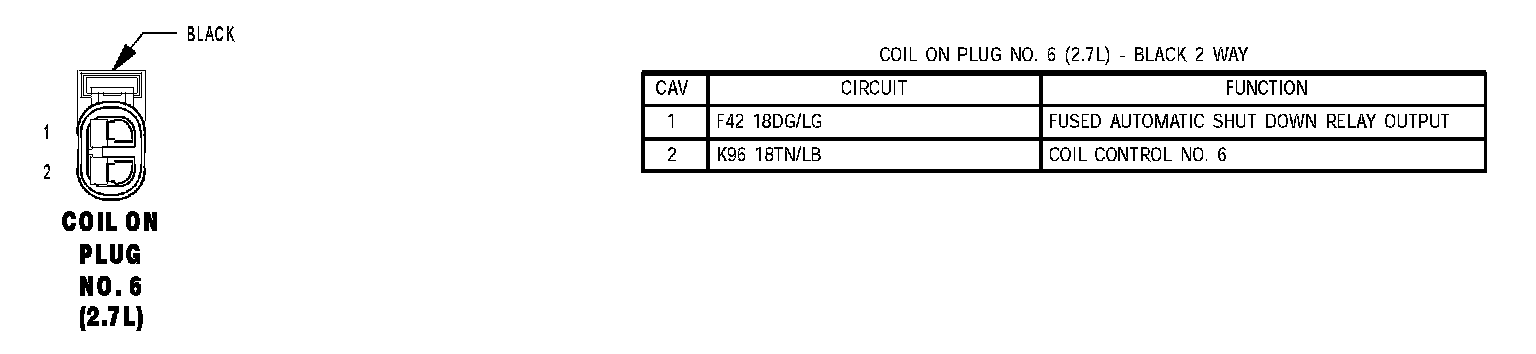

Coil On Plug No.6 (2.7L):
