Cruise Control Vacuum Reservoir: Service and Repair
REMOVALVacuum Reservoir:

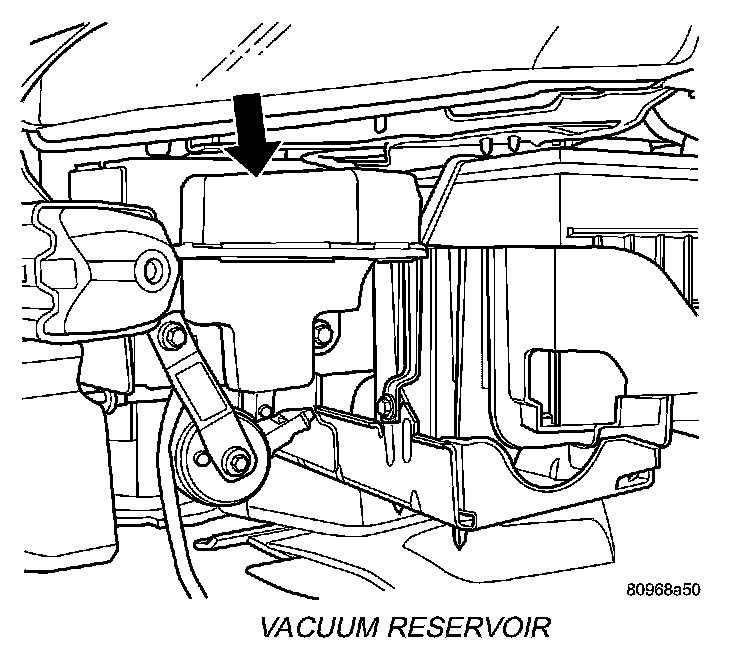

The vacuum reservoir is located below the left front headlamp.
1. Remove the front fascia, refer to the Frames and Bumper/Front Fascia section for more information.
2. Remove bolt from reservoir.
3. Disconnect vacuum hose from reservoir.
4. Remove the vacuum reservoir by sliding it up slightly and separating the nail head pegs (molded into the reservoir) from the frame rail..
INSTALLATION
1. Connect vacuum hose to reservoir by inserting nail head pegs on reservoir into the keyhole slots in the frame rail and slide down to lock it into place.
2. Install the vacuum reservoir .
3. Install bolt through to reservoir to frame rail.
4. Install the front fascia.
