Header Weatherstrip Retainer / Molding

HEADER WEATHERSTRIP RETAINER / MOLDING

REMOVAL

1. Partially raise convertible top.
2. Remove header and A-pillar weatherstrip as necessary to gain access.
3. Remove screws attaching A-pillar weatherstrip retainer to header weatherstrip retainer.

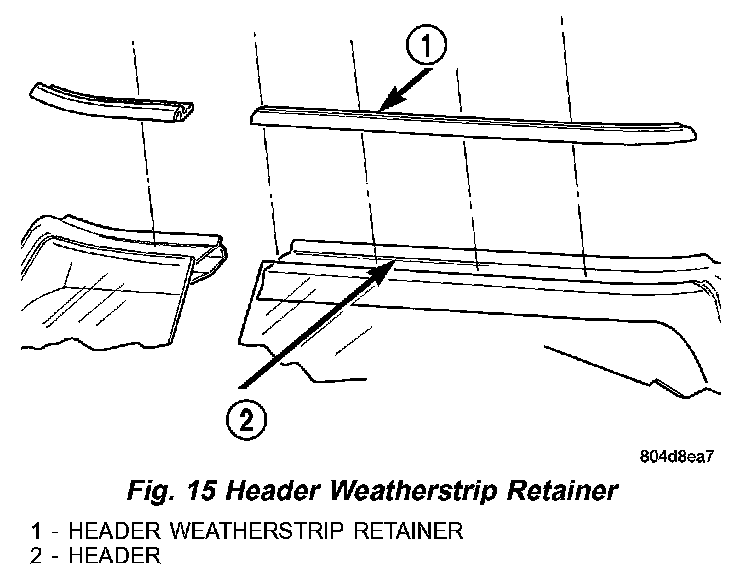

Fig. 15:

4. Remove screws attaching header weatherstrip retainer to header panel (Fig. 15).
5. Remove retainer from vehicle.

INSTALLATION

1. Clean any residual seal material from header panel.
2. Position header weatherstrip retainer on vehicle.
3. Install screws attaching retainer to header panel. Install center screw first and then work outward.
4. Install screws attaching A-pillar weatherstrip retainer to header retainer.
5. Install L foam in upper corner starting at upper screw on the A-pillar retainer.
6. Install L foam in upper corner starting at upper screw on A-pillar.
7. Install header and A-pillar weatherstrip.
8. Lower and secure convertible top.
