Rear Fender Liner: Service and Repair

REAR WHEELHOUSE SPLASH SHIELD

REMOVAL

1. Remove the wheel.

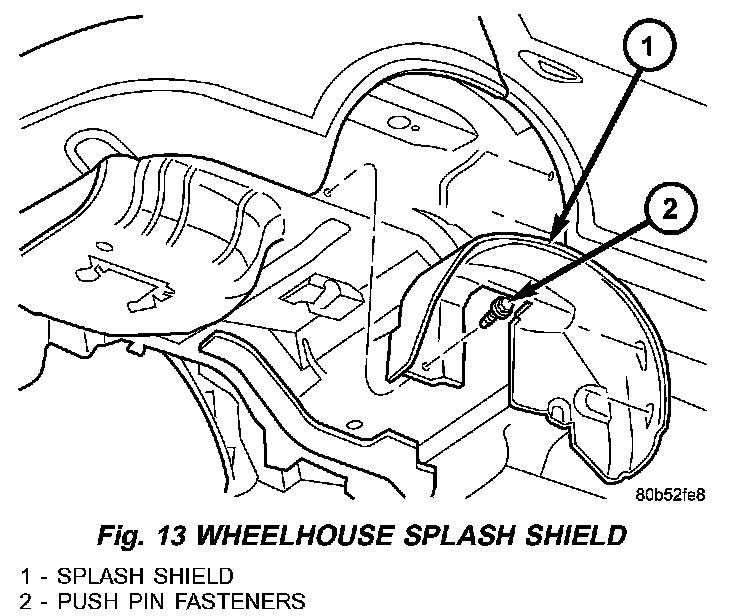

Fig. 13:

2. Remove the six push pin fasteners, two screws and remove the wheelhouse splash shield (Fig. 13).

INSTALLATION

1. Position the splash shield and install the six push pin fasteners and two screws.
2. Install the wheel.
