Radio Receiver: Service and Repair

RECEIVER - SATELLITE RADIO

NOTE: A battery reconnect procedure must be performed anytime the battery has been disconnected.

REMOVAL
1. Disconnect and isolate the battery negative cable.
2. Remove the trunk liner as necessary to access the Satellite Radio Receiver
3. Disconnect the wire harness connectors from the receiver.

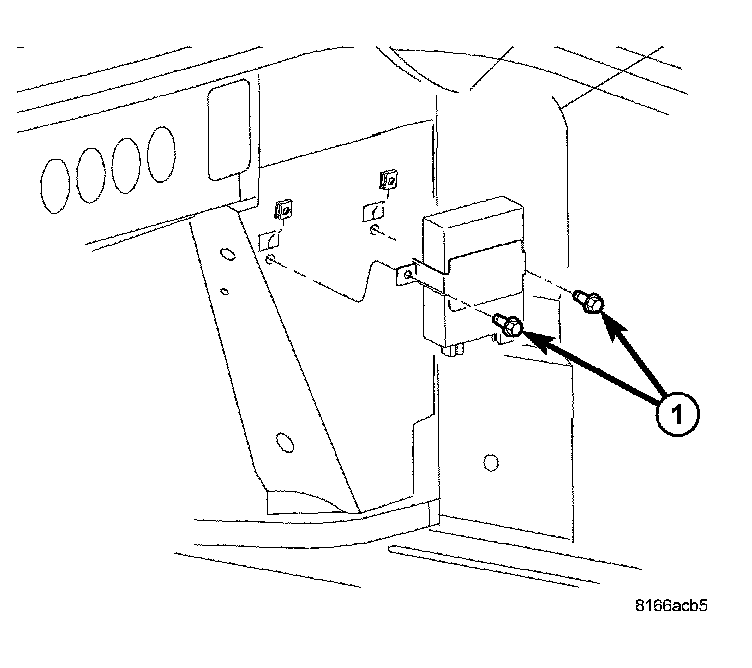

Satellite Receiver - Convertible:

4. Remove the mounting bolts (1) and remove the satellite receiver.

INSTALLATION

NOTE: A battery reconnect procedure must be performed anytime the battery has been disconnected.

1. Install mounting bolts (1).




2. Connect the wire harness connectors to the receiver.
3. Install the trunk liner.
4. Connect the battery negative cable.
