Amplifier: Service and Repair

AMPLIFIER

REMOVAL
1. Disconnect and isolate the battery negative cable.
2. Remove the retaining fasteners. Adjust or remove the seat as necessary to gain access.
3. Disconnect the wire harness connector.

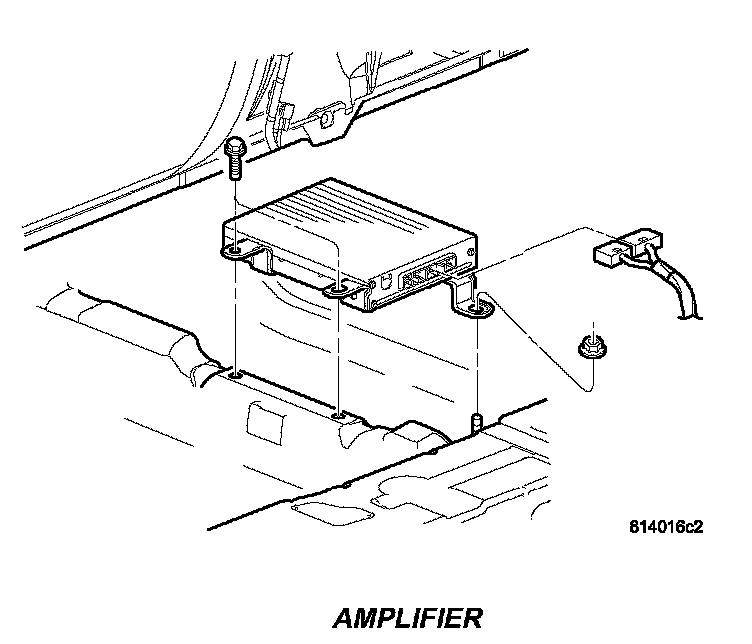

Amplifier:

4. Remove the amplifier.

INSTALLATION
1. Connect wire harness connector to amplifier.
2. Install amplifier. Tighten the forward screw to 3 N.m (26.5 in. lbs.) and the rear nut to 2 N.m (18 in. lbs.).
3. Connect battery negative cable.
