Home >> Chrysler >> 2006 >> Sebring Convertible V6-2.7L VIN R >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Audio >> No Communication With NAV - Radio

No Communication With NAV - Radio

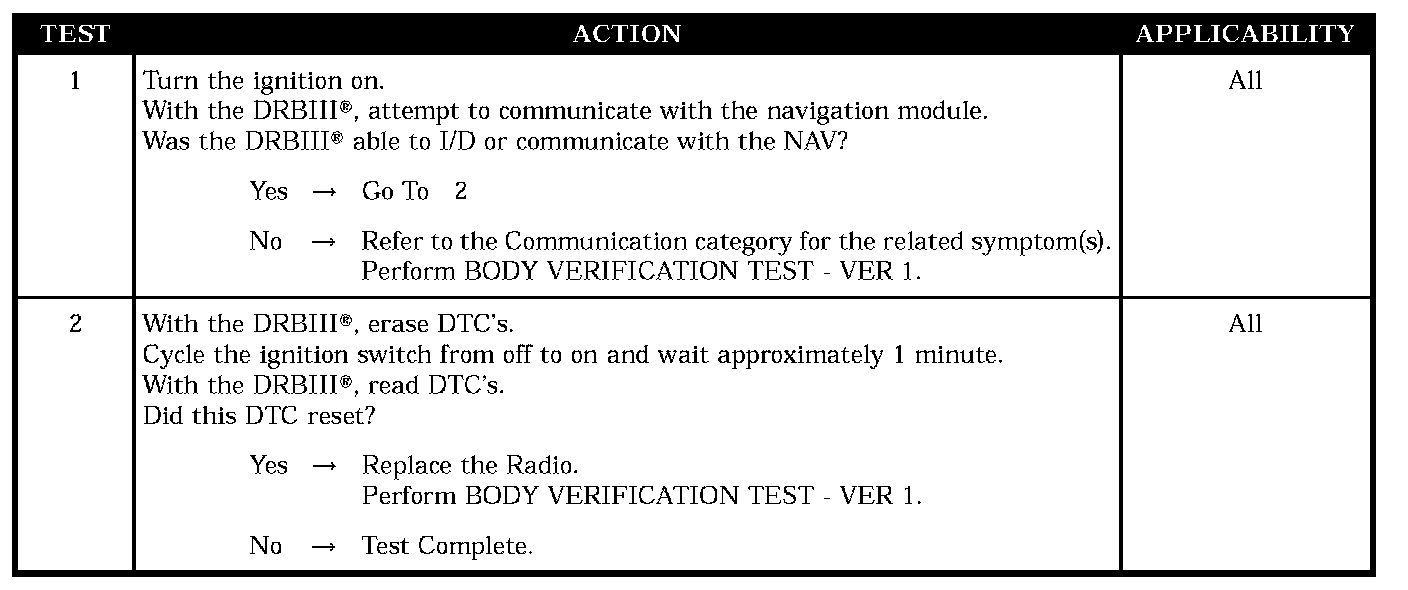

Test 1 - Test 2:






SYMPTOM
NO COMMUNICATION WITH NAV - RADIO

POSSIBLE CAUSES
- Attempt to communicate with the navigation module
- Radio
