REAR VERTICAL GUIDE BAR

REMOVAL

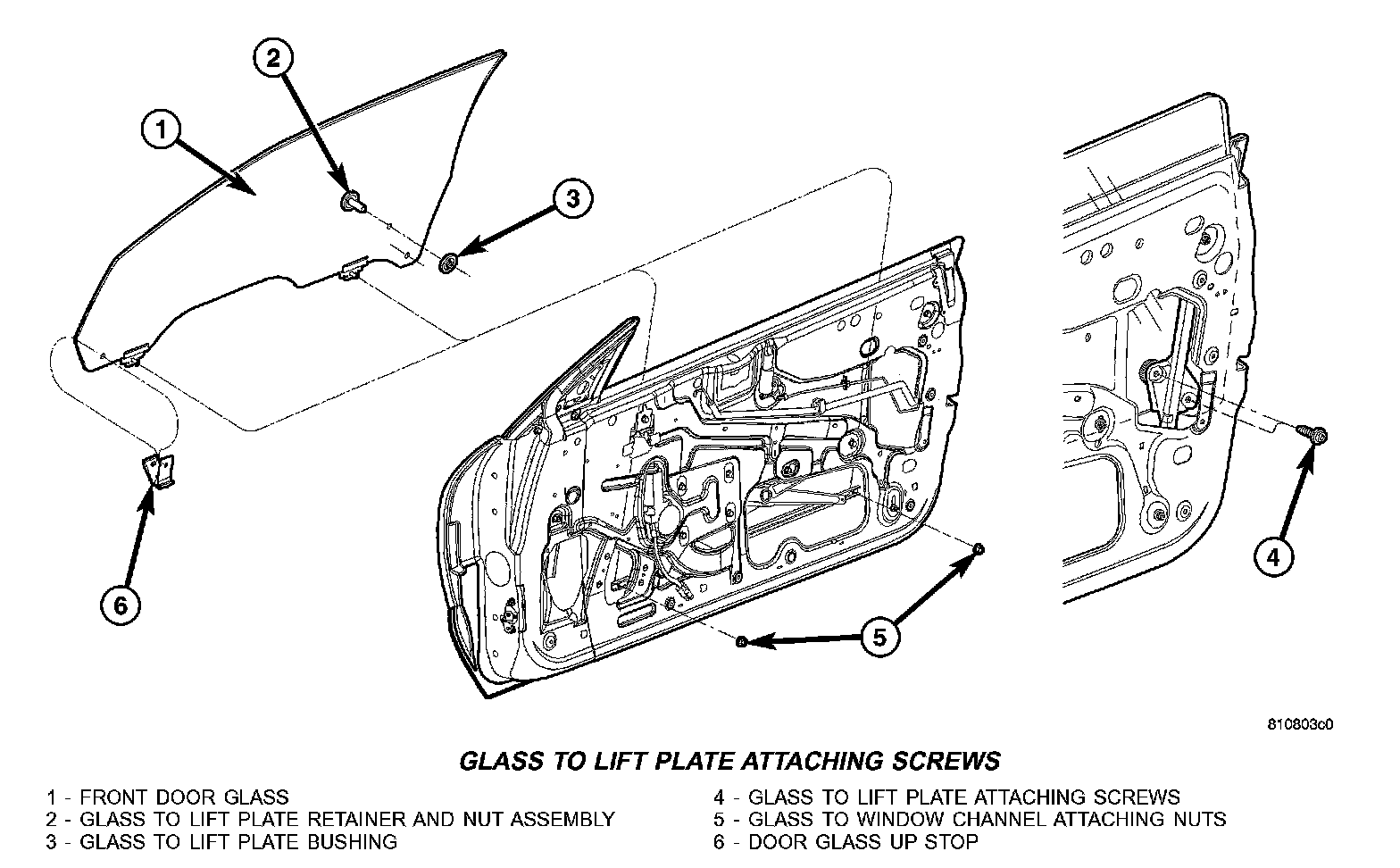

Glass To Lift Plate Attaching Screws:

1. Remove door trim panel and watershield.
2. Remove the lift plate attaching screws (Fig. 31).
3. Remove nut attaching top of guide bar to inner door panel.
4. Using a suitable allen wrench, hold jack screw stationary while removing nut attaching bottom of guide bar to inner door panel.

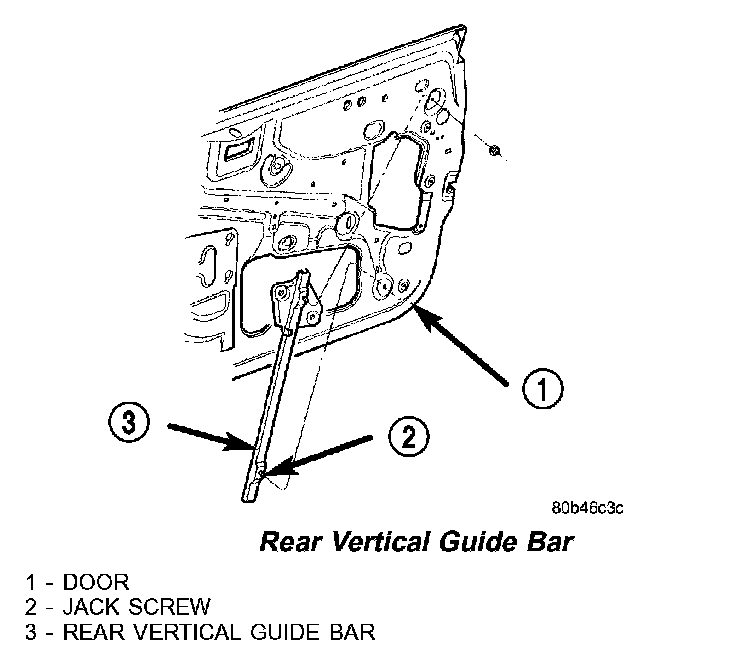

5. Remove guide bar from vehicle and remove through access hole in inner door panel (Fig. 32).

INSTALLATION

Rear Vertical Guide Bar:

1. If a new guide bar is being installed, preset bottom jack screw using old guide bar as a reference.
2. Position rear guide bar on vehicle.
3. Using a suitable allen wrench, hold jack screw stationary while installing nut attaching bottom of guide bar to inner door panel.
4. Install nut attaching top of rear guide bar to inner door panel.
5. Verify glass fit and operation. Adjust door glass as necessary.
6. Install door trim panel and watershield.
