Output Bearing And Race

T350 MANUAL TRANSAXLE

OUTPUT BEARING AND RACE

REMOVAL

CAUTION: The position of the output shaft bearing is critical. The bearing is not identical end-to-end. Install bearing with larger diameter cage ring facing out.

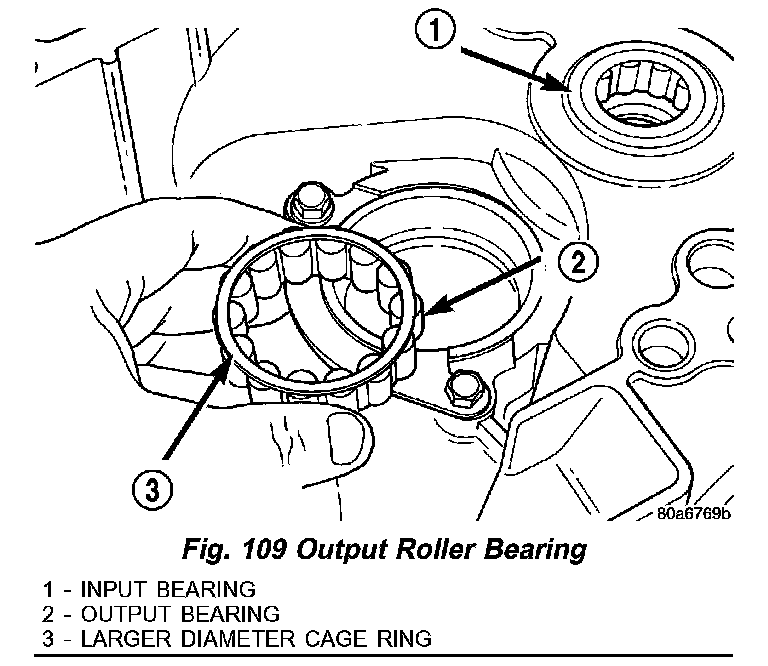

Fig.109 Output Roller Bearing:

(1) Remove caged roller bearing (3) (Fig. 109) from output bearing race.

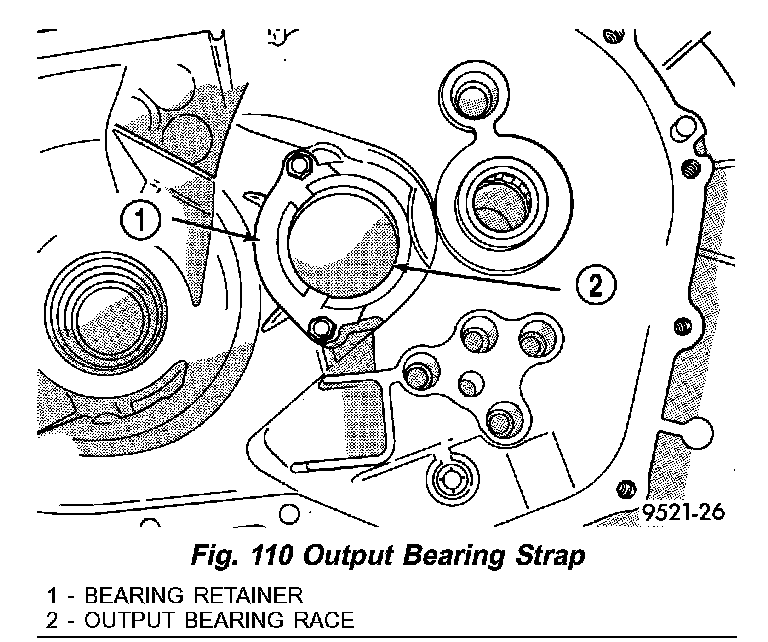

Fig.110 Output Bearing Strap:

(2) Remove screws at output bearing retainer strap (1) (Fig. 110).

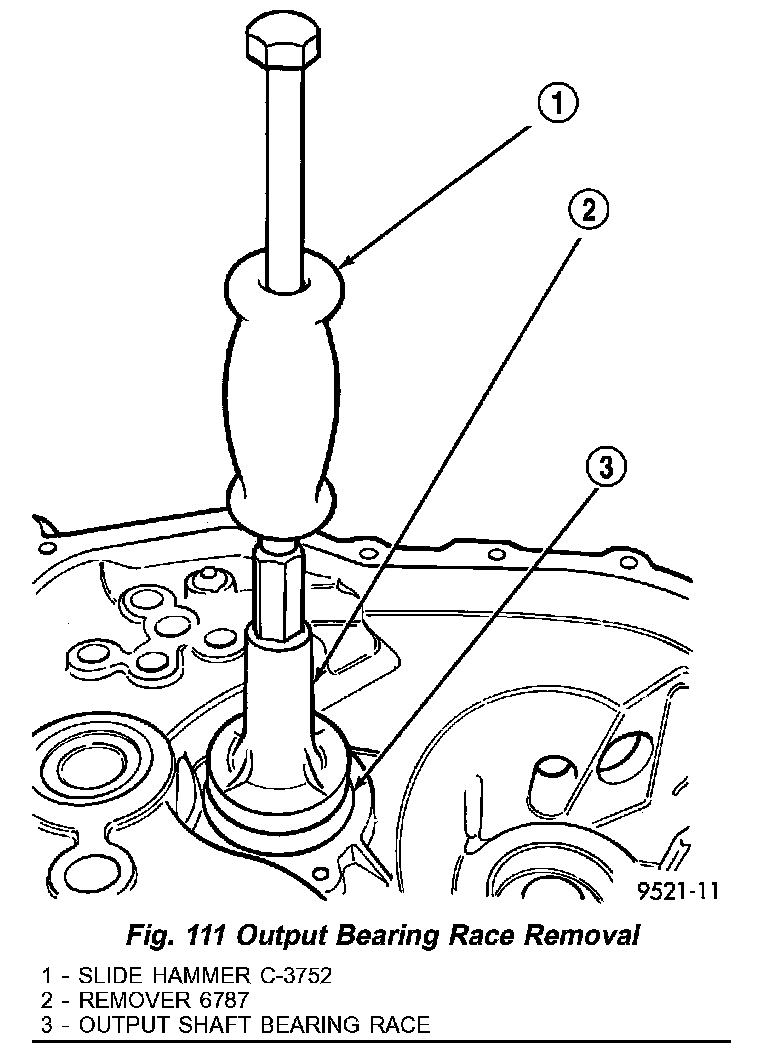

Fig.111 Output Bearing Race Removal:

(3) Install slide Remover 6787 and slide hammer C-3752 (2) (Fig. 111). Tighten tool to output bearing race.
(4) Using slide hammer, remove output bearing race (3).

INSTALLATION

Fig.112 Output Bearing Race Installation:

(1) Line up output bearing race (3) (Fig. 112) to race bore.
(2) Insert tool Installer 4628 (2) with Handle C-4171 (1) into output bearing race. Tap race into bore. Install output bearing into race. Verify that the larger diameter cage is facing outward. Position bearing retaining strap. Tighten bolts to 11 Nm (96 inch lbs.).
