Disassembly
T350 MANUAL TRANSAXLEINPUT SHAFT
DISASSEMBLY
Fig.89 Input Shaft:
Before disassembly of the input shaft (1) (Fig. 89), it is necessary to check the synchronizer stop ring gap. Use a feeler gauge to measure the gaps between the stop rings (2,5 and 8) and the speed gears. The correct gaps are:
- 1st - 0.522 - 2.208 mm (0.021 - 0.087 inch)
- 2nd - 0.522 - 2.208 mm (0.021 - 0.087 inch)
- 3rd - 0.73 - 1.53 mm (0.029 - 0.060 inch)
- 4th - 0.77 - 1.57 mm (0.030 - 0.062 inch).
- 5th - 0.73 - 1.53 mm (0.029 - 0.060 inch)
- Reverse Brake - 0.505 - 1.74 mm (0.020 - 0.068 inch)
The reverse brake measurement is taken between the stop ring and case.
If a stop ring gap does not fall within the specifications, it must be inspected for wear and replaced. If the 1st or 2nd synchronizer stop ring is worn beyond specifications, the complete output shaft assembly must be replaced.
The input shaft incorporates the 3rd, 4th, and 5th speed gears and synchronizers on the assembly.

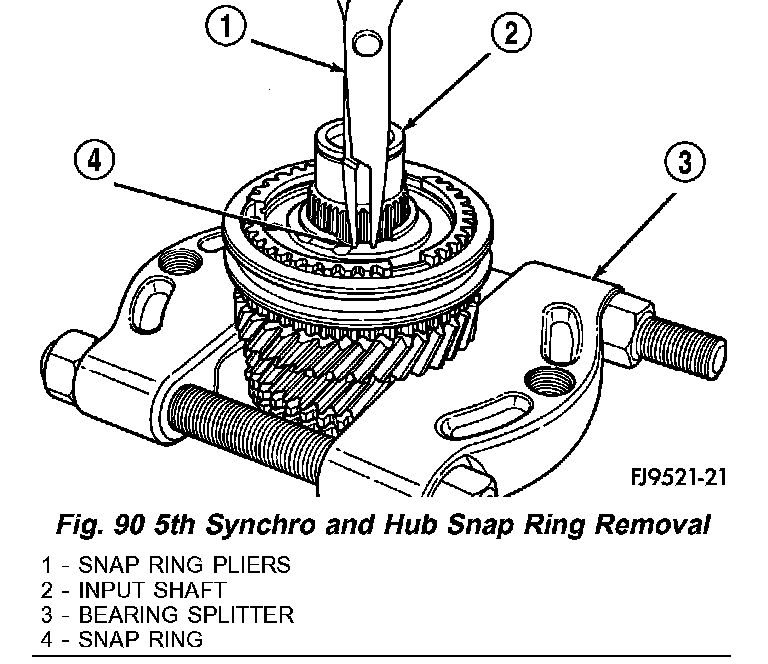

Fig.90 5th Synchro And Hub Snap Ring Removal:
(1) Install bearing splitter (3) (Fig. 90) behind 5th speed gear. Remove snap ring (4) at 5th synchronizer hub on input shaft (2).

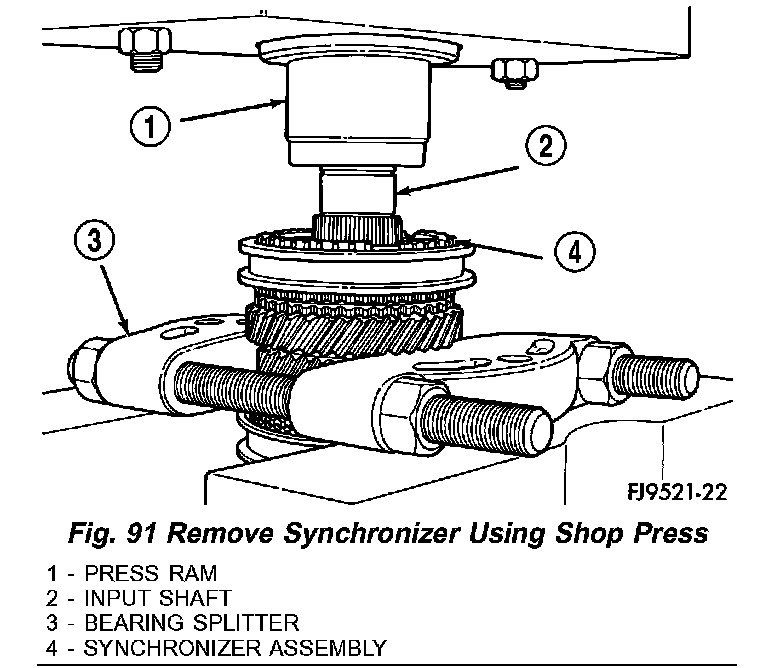

Fig.91 Removal Synchronizer Using Shop Press:
(2) Remove synchronize (4) (Fig. 91) and gear using shop press (1).
Fig.92 Caged Needle Bearing Removal:
(3) Remove caged needle bearing (2) (Fig. 92).

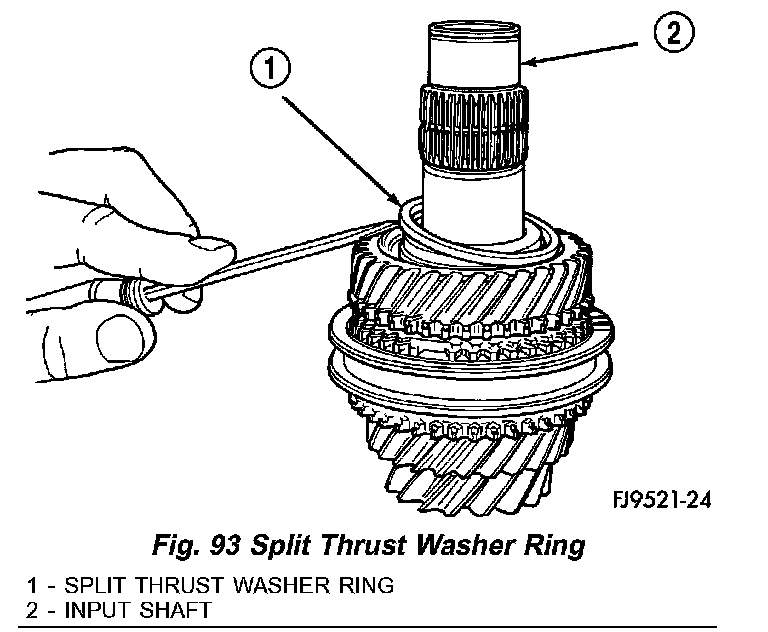

Fig.93 Split Thrust Washer Ring:
(4) Remove 4-5 gears split thrust washer ring (1) (Fig. 93).
Fig.94 Split Thrust Washer Removal:
(5) Remove split thrust washer (2) (Fig. 94).

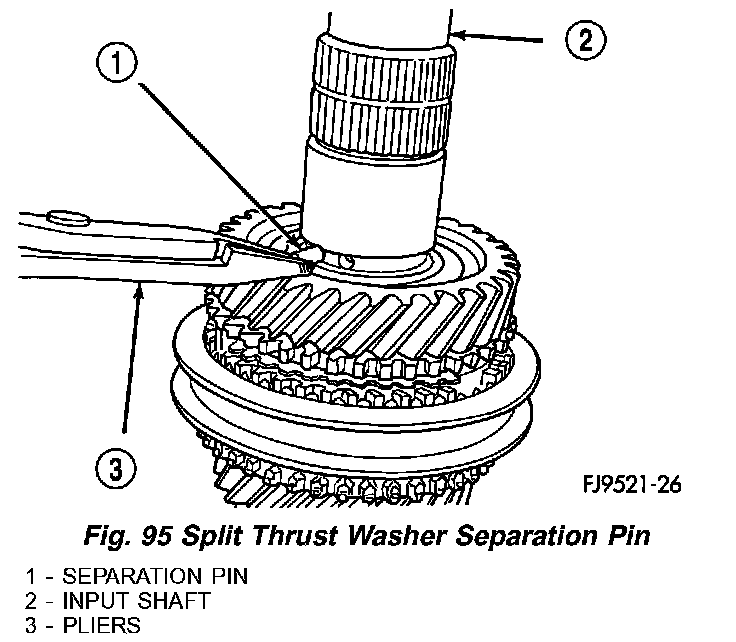

Fig.95 Split Thrust Washer Separation Pin:
(6) Remove split thrust washer separation pin (1) (Fig. 95).

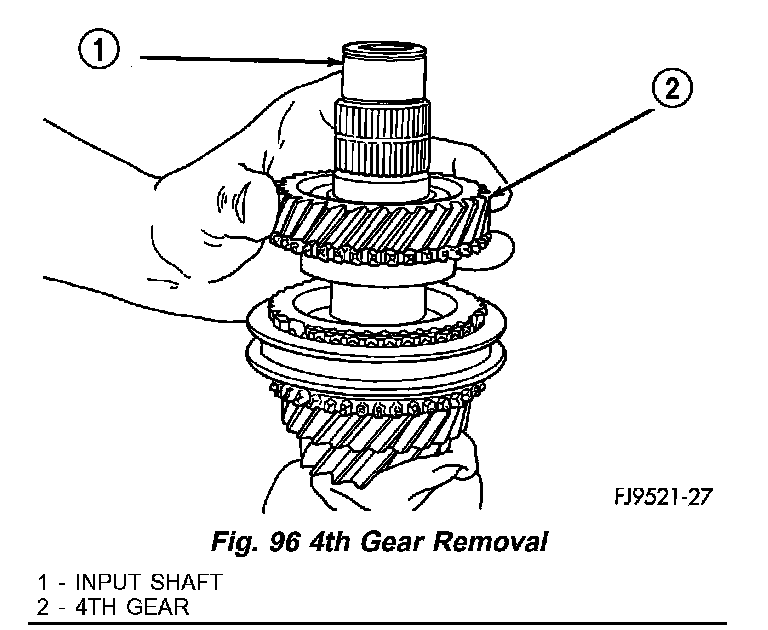

Fig.96 4th Gear Removal:
(7) Remove 4th gear (2) (Fig. 96).

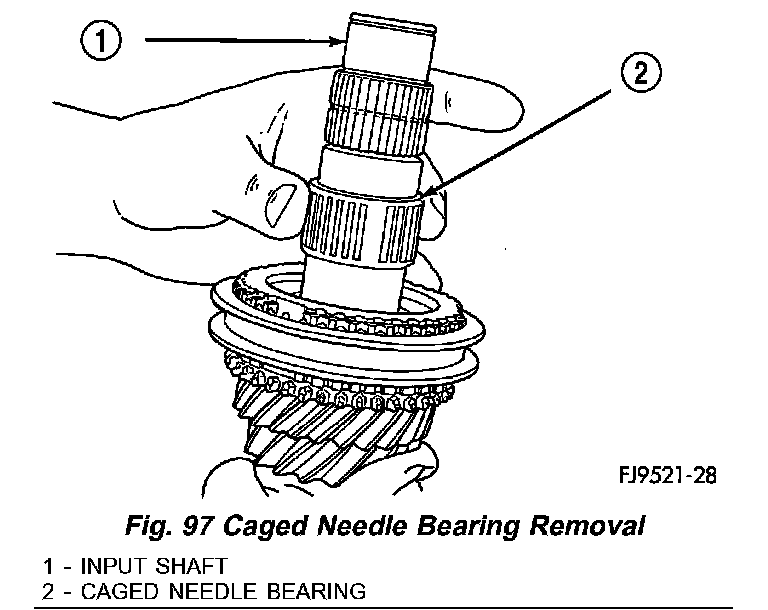

Fig.97 Caged Needle Bearing Removal:
(8) Remove 4th gear caged needle bearing (2) (Fig. 97). Check the caged needle bearing (2) for a broken retention spring.

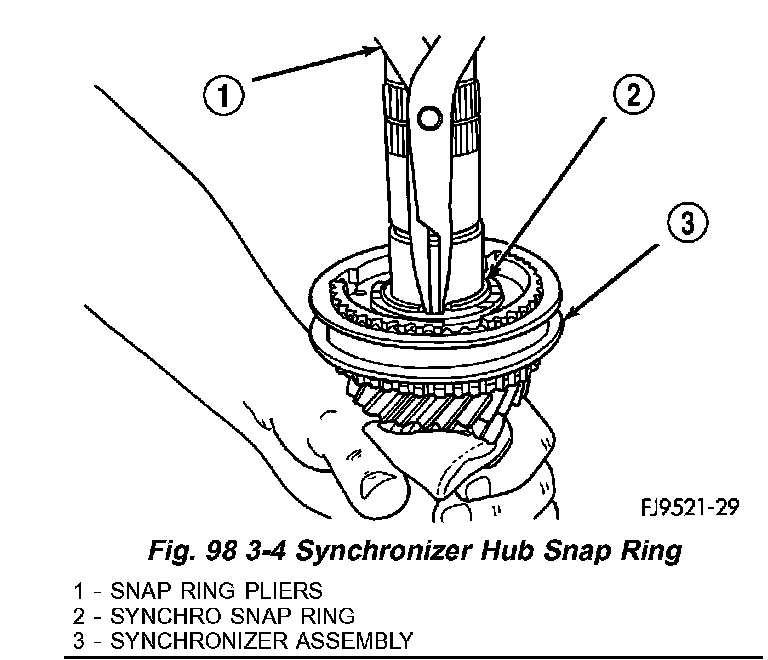

Fig.98 3-4 Synchronizer Hub Snap Ring:
(9) Remove blocking ring. Remove 3-4 synchronizer hub retaining snap ring (3) (Fig. 98).

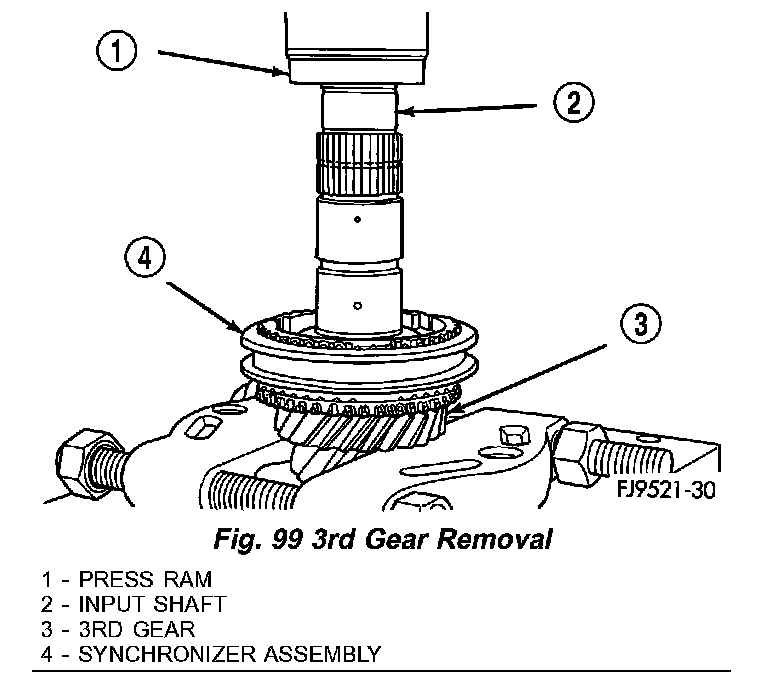

Fig.99 3rd Gear Removal:
(10) Install input shaft in shop press (1) (Fig. 99). Using bearing splitter, remove 3-4 synchronizer and 3rd gear (3).

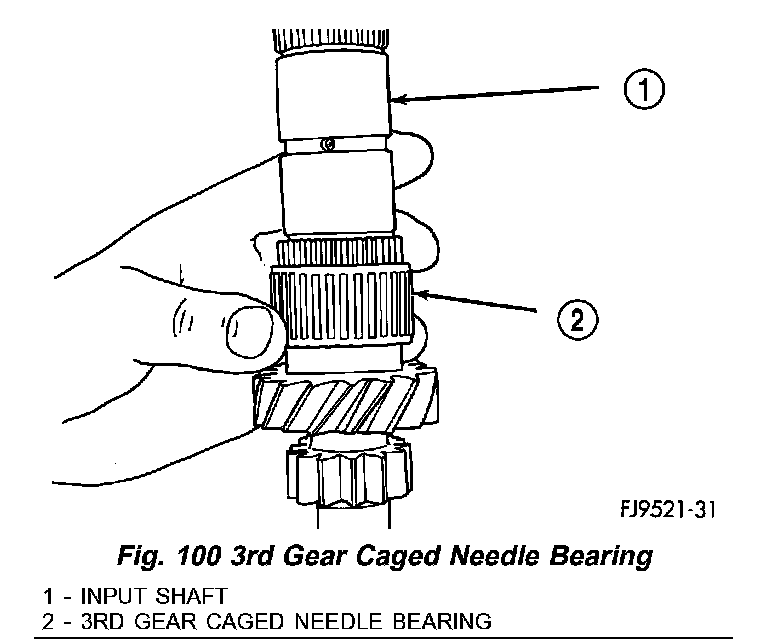

Fig.100 3rd Gear Caged Needle Bearing:
(11) Remove 3rd gear caged needle bearing (2) (Fig. 100). Inspect needle bearing for a broken retention spring.
(12) Inspect the input shaft for worn or damaged bearing races or chipped gear teeth. Replace as necessary.
