Input Bearing and Sleeve

T350 MANUAL TRANSAXLE

INPUT BEARING AND SLEEVE

REMOVAL

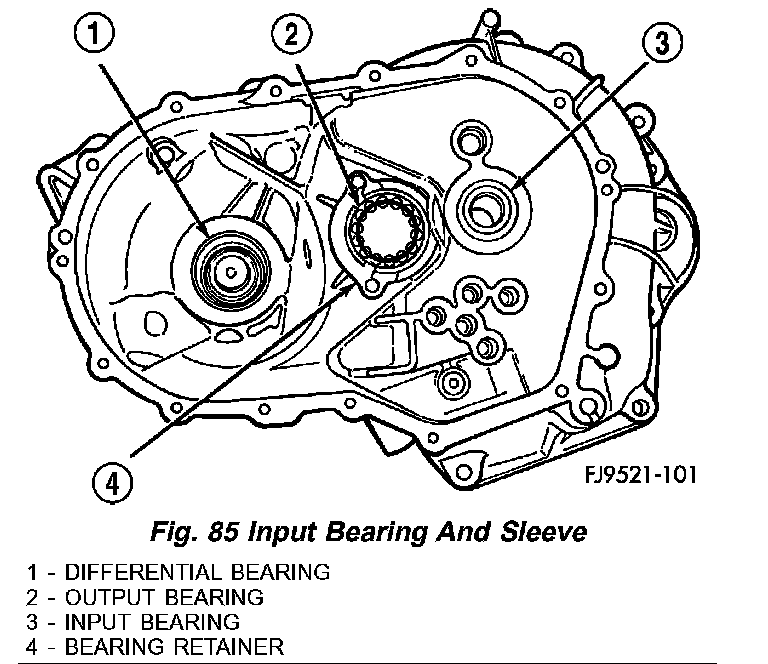

Fig.85 Input Bearing And Sleeve:

The input bearing (3) (Fig. 85) is a one-piece bearing and sleeve unit. The sleeve is the slide point for the clutch-release bearing and lever.

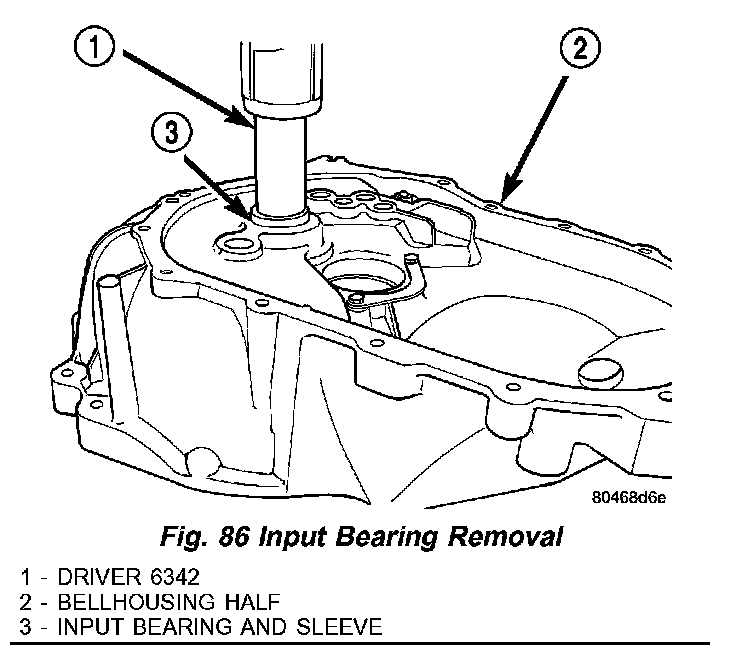

Fig.86 Input Bearing Removal:

(1) Install Driver 6342 (1) over input bearing on the gear case side of the transaxle clutch housing (2).
(2) Press the input bearing (3) (Fig. 86) out of the housing.

INSTALLATION
(1) Apply coating of Loctite sealant on bearing outer diameter. Position sleeve and bearing assembly at input bearing bore.

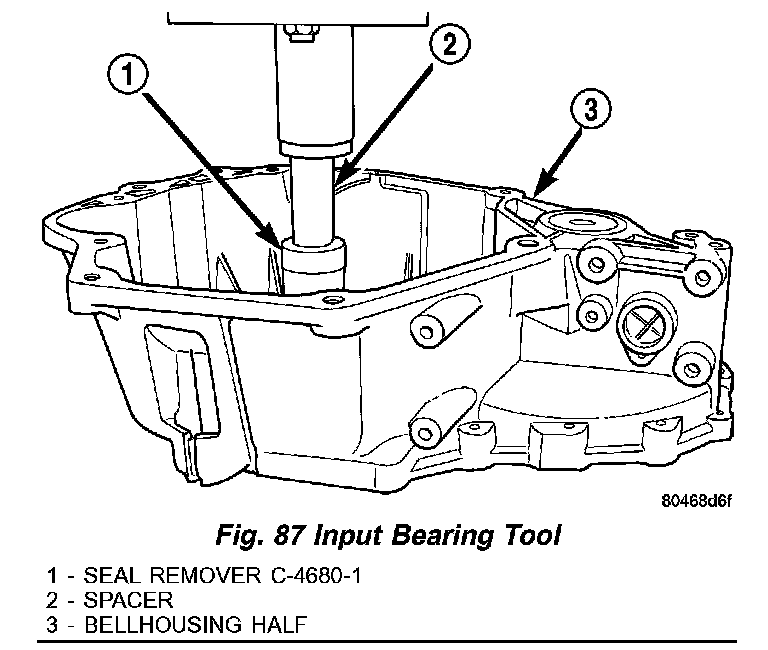

Fig.87 Input Bearing Tool:

(2) Install Seal Remover C-4680-1 (1) (Fig. 87), over input bearing.

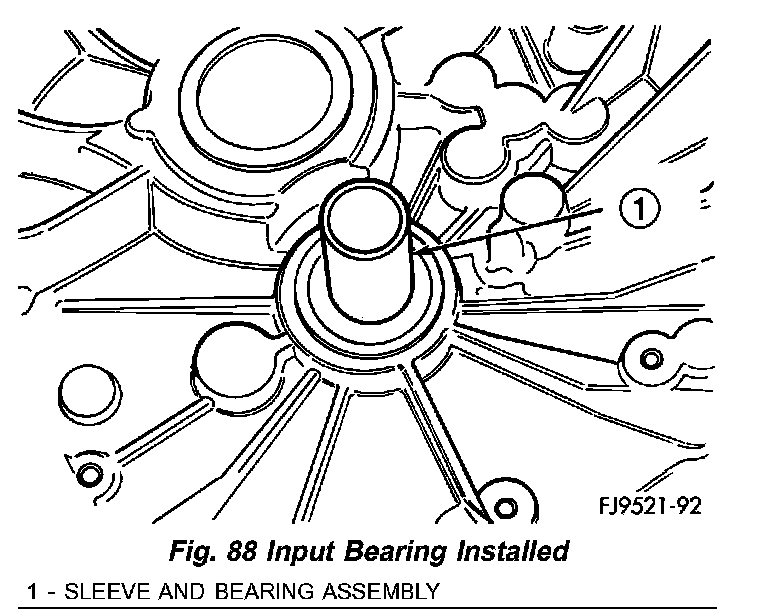

Fig. 88 Input Bearing Installed:

(3) Using a suitable spacer tool and shop press, install input bearing (1) (Fig. 88) into bore until it is fully seated.
