Differential Bearing Cups

T350 MANUAL TRANSAXLE

DIFFERENTIAL BEARING CUPS

REMOVAL

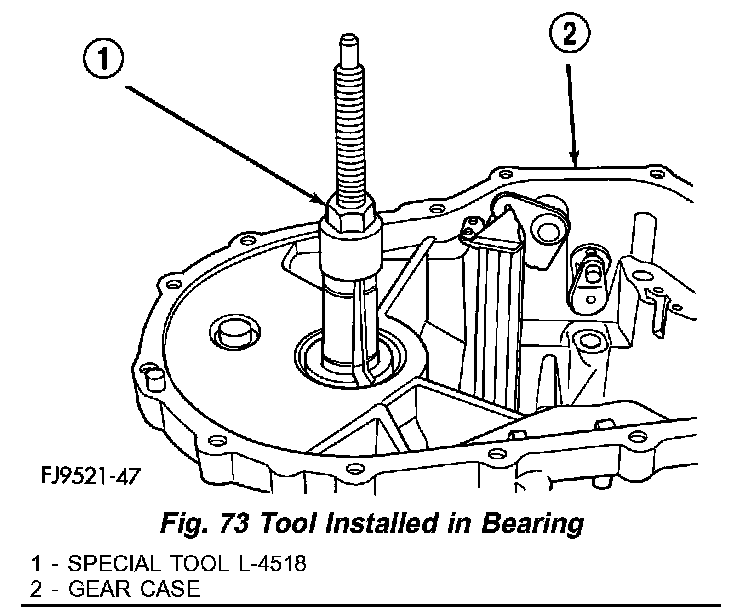

Fig.73 Tool Installed In Bearing:

(1) Remove differential assembly from gear case (2) (Fig. 73).
(2) Install Miller tool #L-4518 (1) into the differential bearing cup.

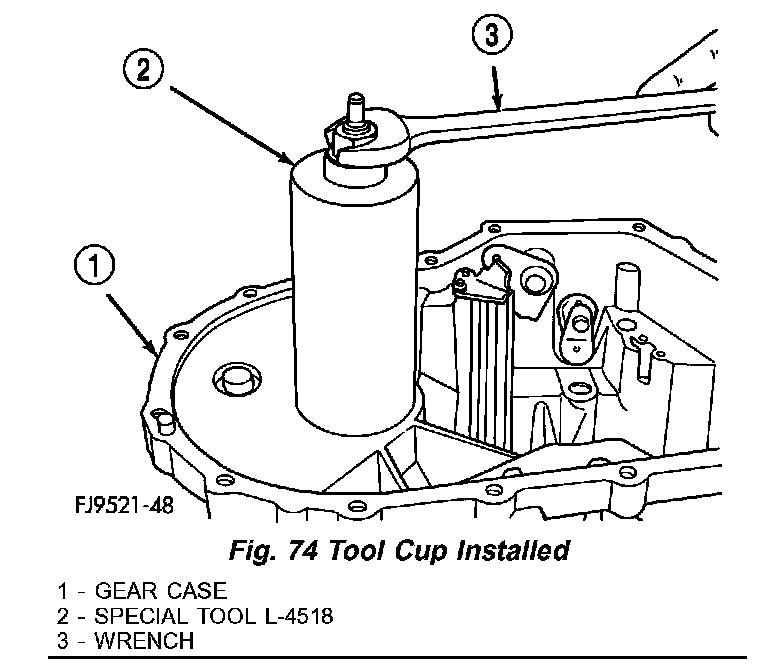

Fig.74 Tool Cup Installed:

(3) Install the tool cup over the tool (Fig. 74).
(4) Tighten the tool until the race is removed from the case.

INSTALLATION
(1) Position the bearing cup into the case.
(2) Install the bearing cup onto Miller tool #L-4520.
(3) Using Miller tool #L-4520 and C-4171 driver, install differential bearing cup into the transaxle case.
