Clutch Disc: Service and Repair

MODULAR CLUTCH

REMOVAL
1. Remove transaxle and modular clutch assembly from engine.

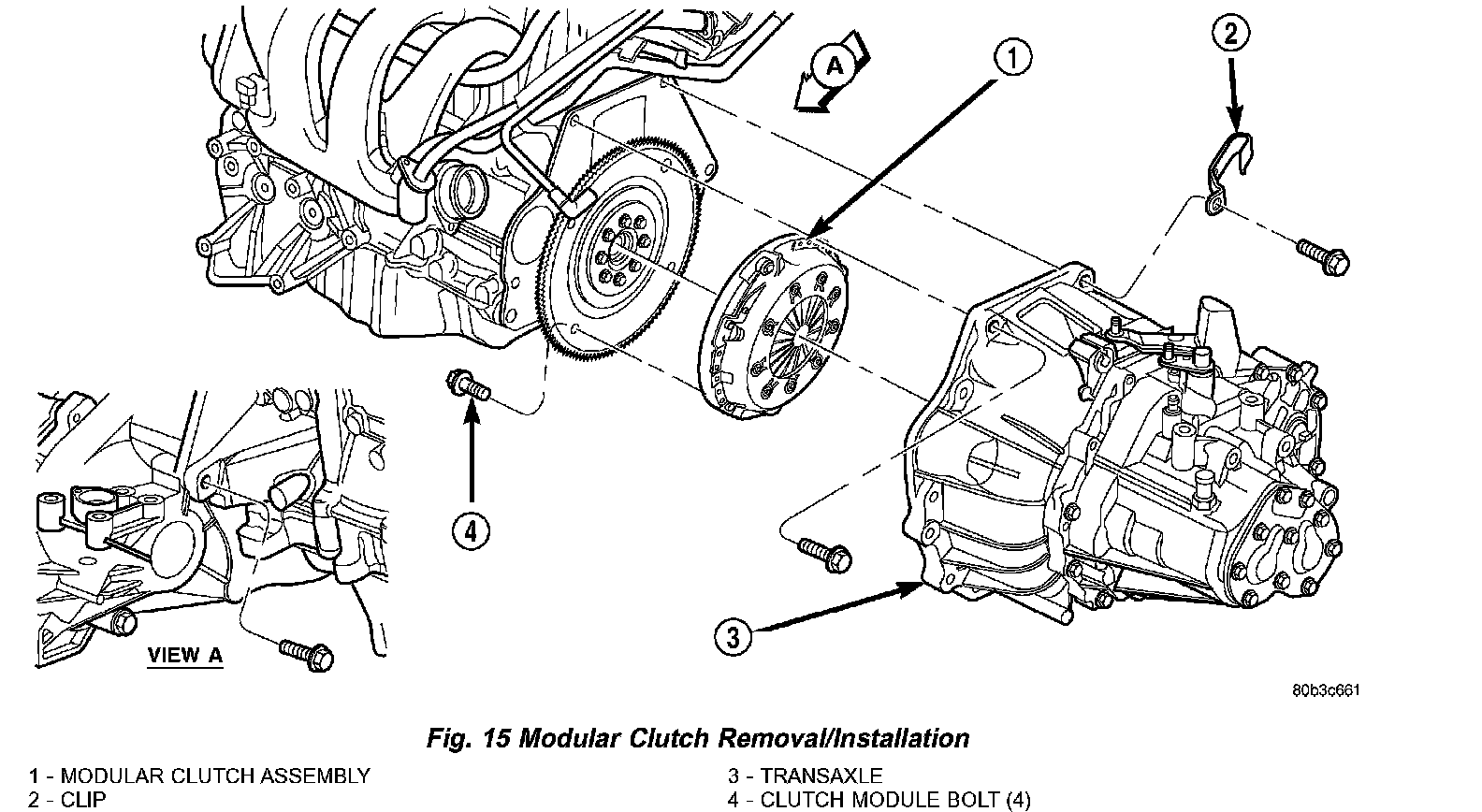

2. Remove the modular clutch assembly from the transaxle input shaft (Fig. 15).

INSTALLATION
1. Install modular clutch assembly onto input shaft (Fig. 15).
2. Install transaxle to vehicle.
