Speed Sensor - Output

40TE AUTOMATIC TRANSAXLE

SPEED SENSOR - OUTPUT

REMOVAL
(1) Disconnect battery negative cable.
(2) Raise vehicle on hoist.

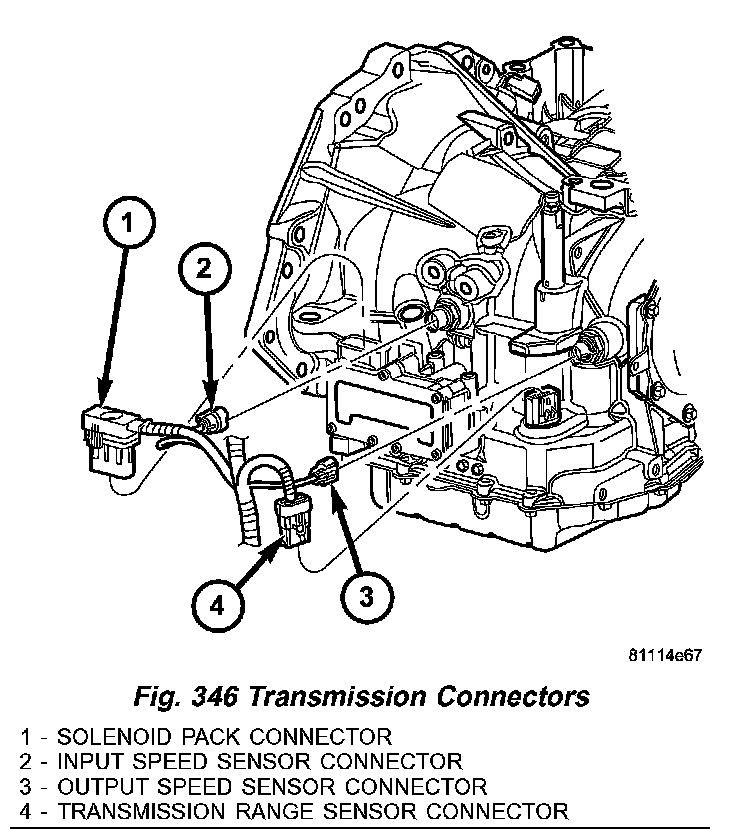

Fig.346 Transmission Connectors:

(3) Disconnect output speed sensor connector (3) (Fig. 346).

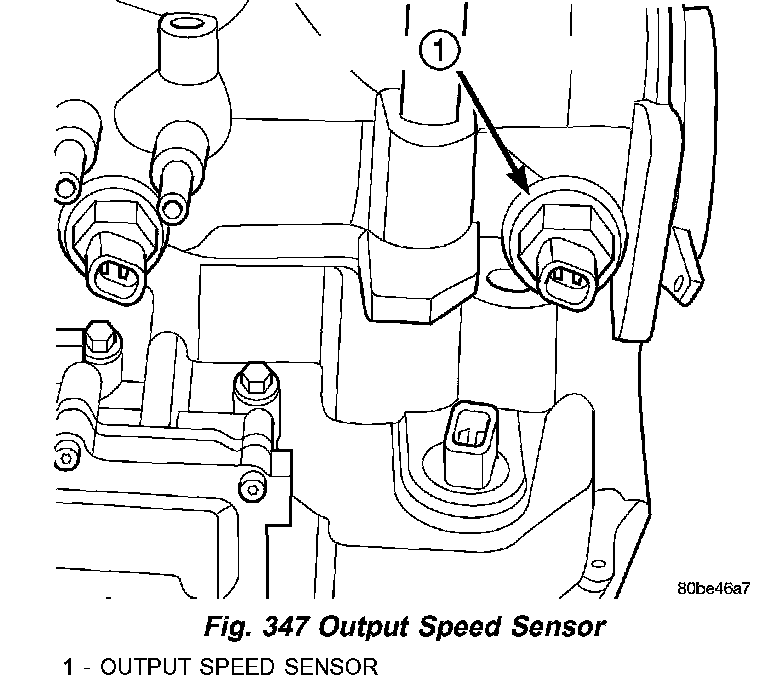

Fig.347 Output Speed Sensor:

(4) Unscrew and remove output speed sensor (1) (Fig. 347).

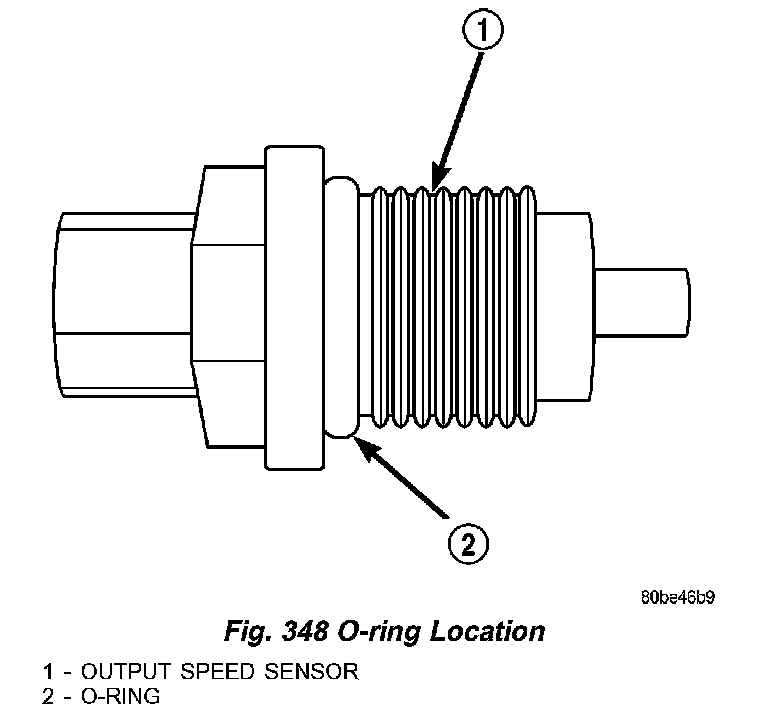

Fig.348 O-Ring Location:

(5) Inspect speed sensor O-ring (2) (Fig. 348) and replace if necessary.

INSTALLATION

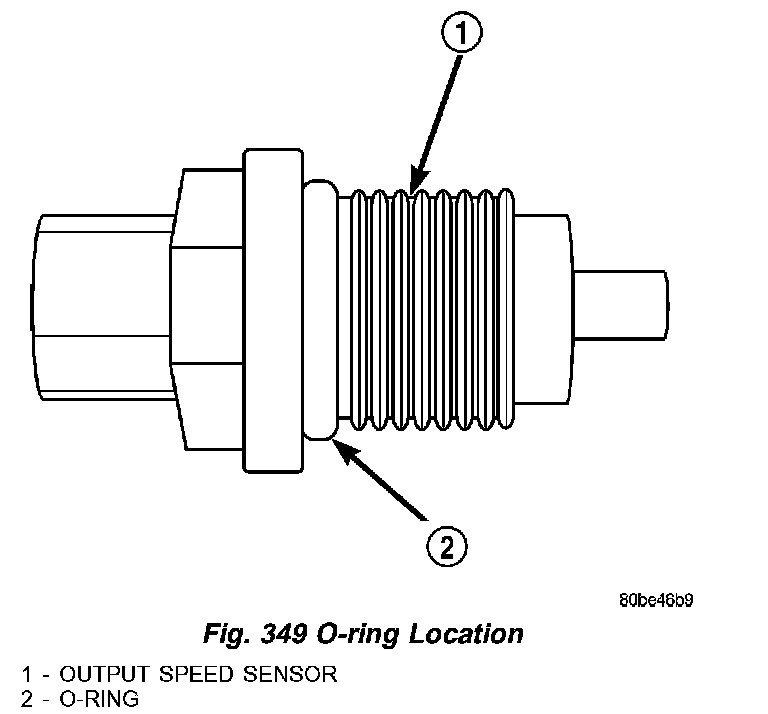

Fig.349 O-Ring Location:

(1) Verify O-ring (2) (Fig. 349) is installed into position.

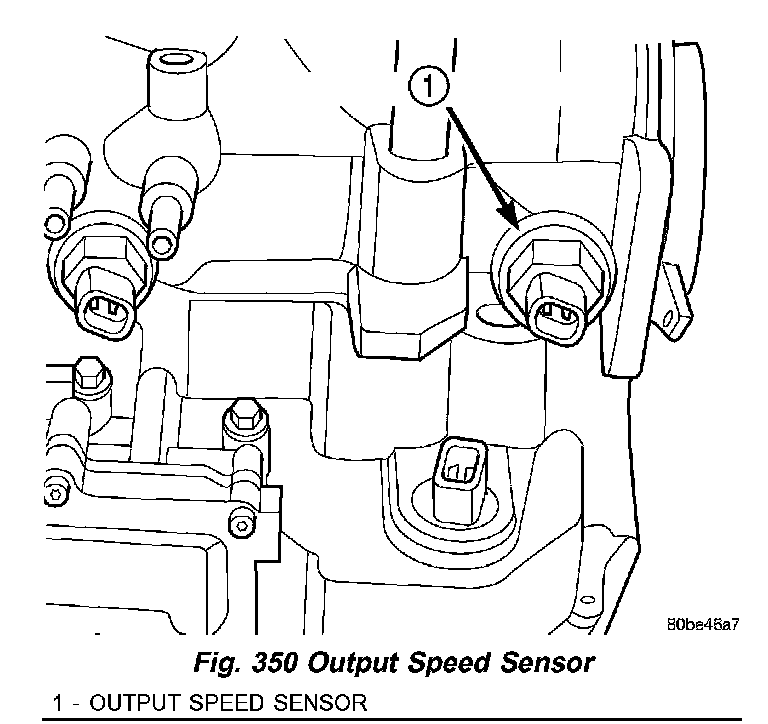

Fig.350 Output Speed Sensor:

(2) Install and tighten output speed sensor (1) (Fig. 350) to 27 Nm (20 ft. lbs.).

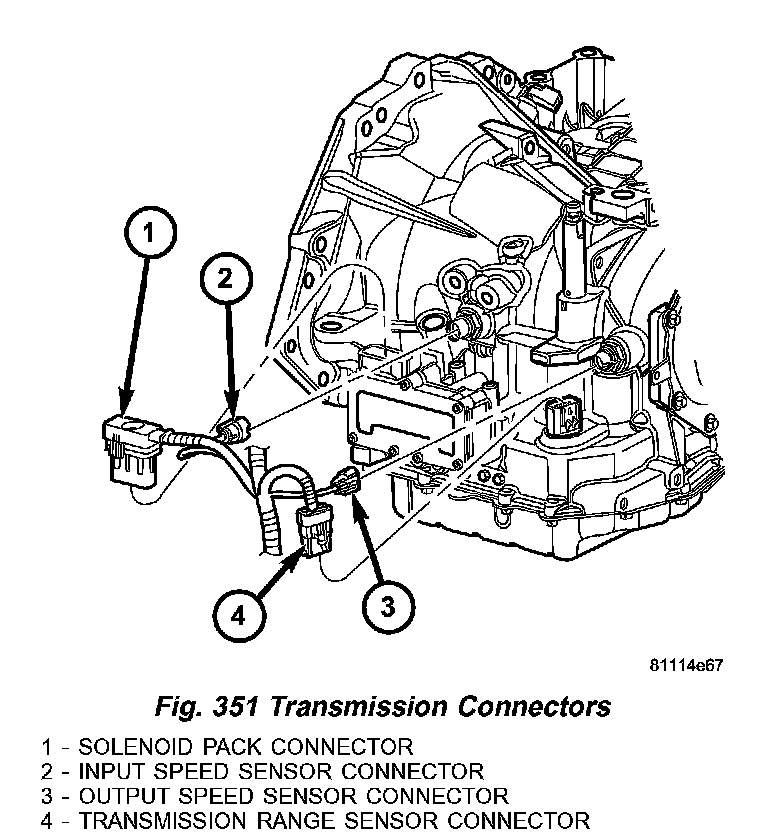

Fig.351 Transmission Connectors:

(3) Connect output speed sensor connector (3) (Fig. 351).
(4) Connect battery negative cable.
