Home >> Chrysler >> 2006 >> Sebring Convertible L4-2.4L VIN X >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Transmission Pressure Test Port >> Locations

Transmission Pressure Test Port: Locations

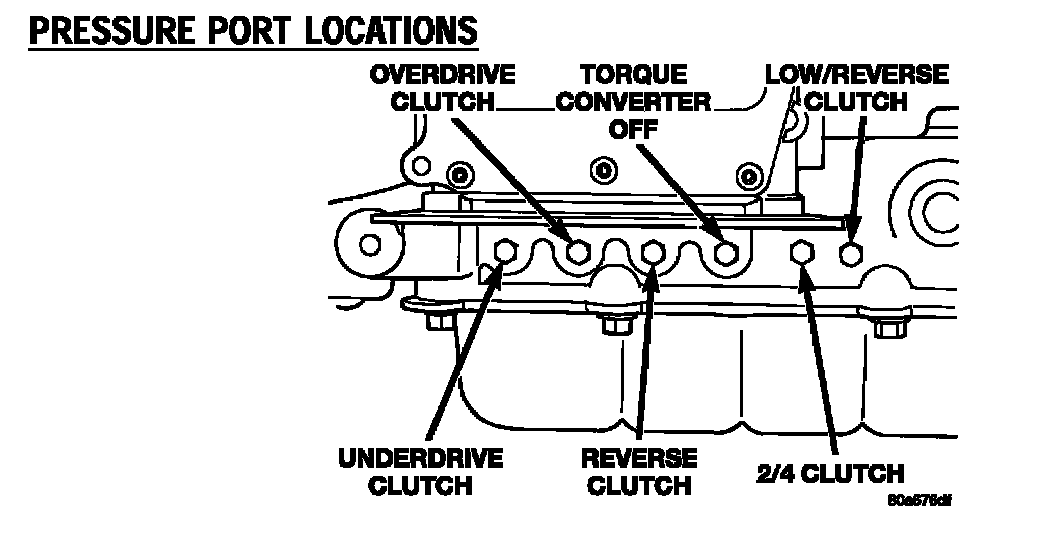

PRESSURE PORT LOCATIONS:
