41TE Automatic Transaxle

41TE AUTOMATIC TRANSAXLE

GEARSHIFT MECHANISM

REMOVAL
(1) Disconnect negative battery cable and isolate.

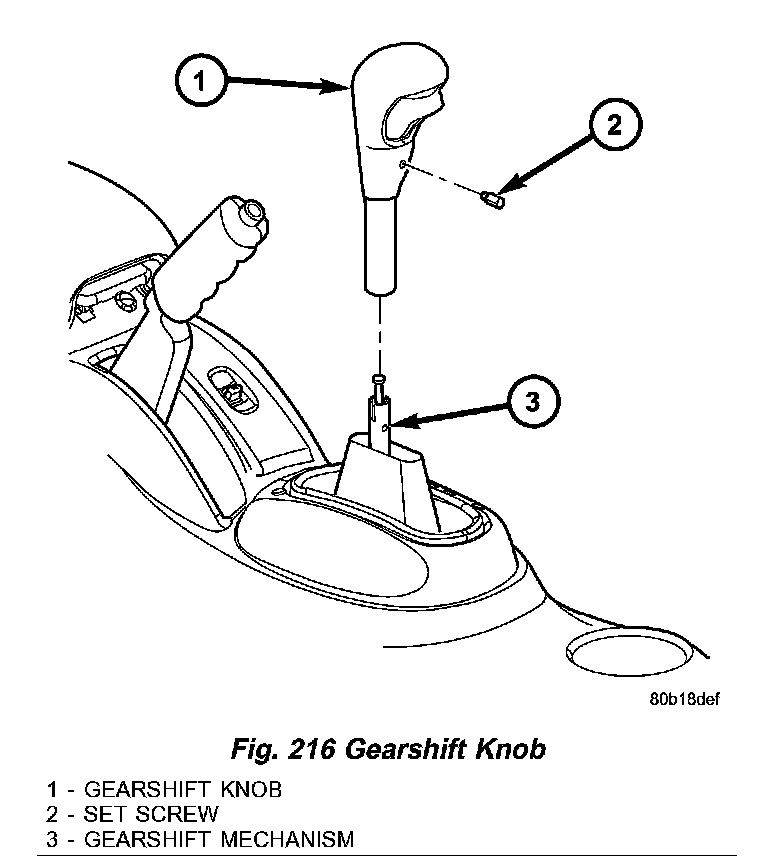

Fig.216 Gearshift Knob:

(2) Remove the gearshift knob set screw (2) (Fig. 216) and knob (1).

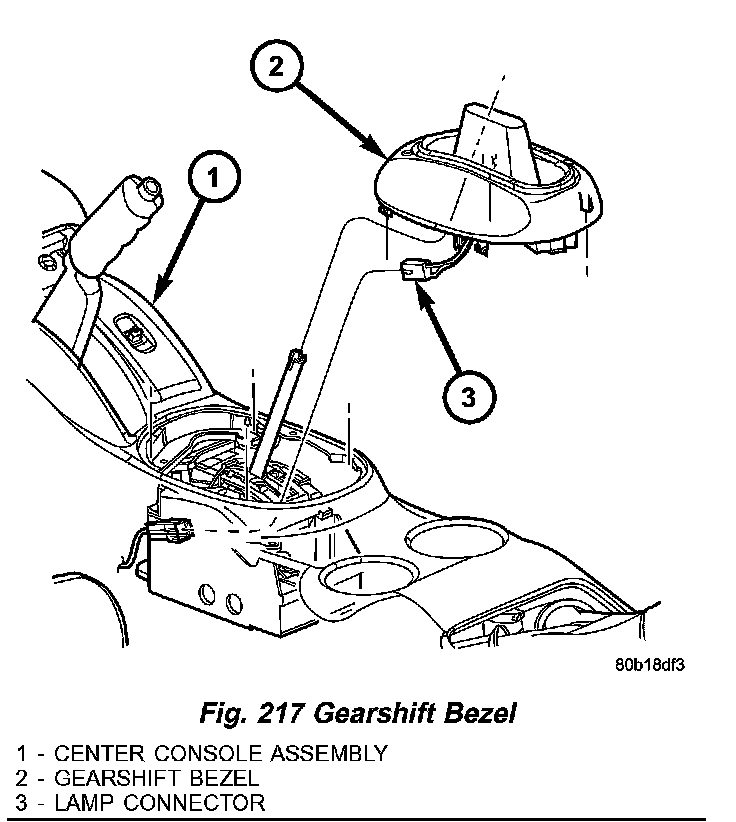

Fig.217 Gearshift Bezel:

(3) Remove gearshift bezel (2) (Fig. 217), disconnect range indicator lamp connector (3).

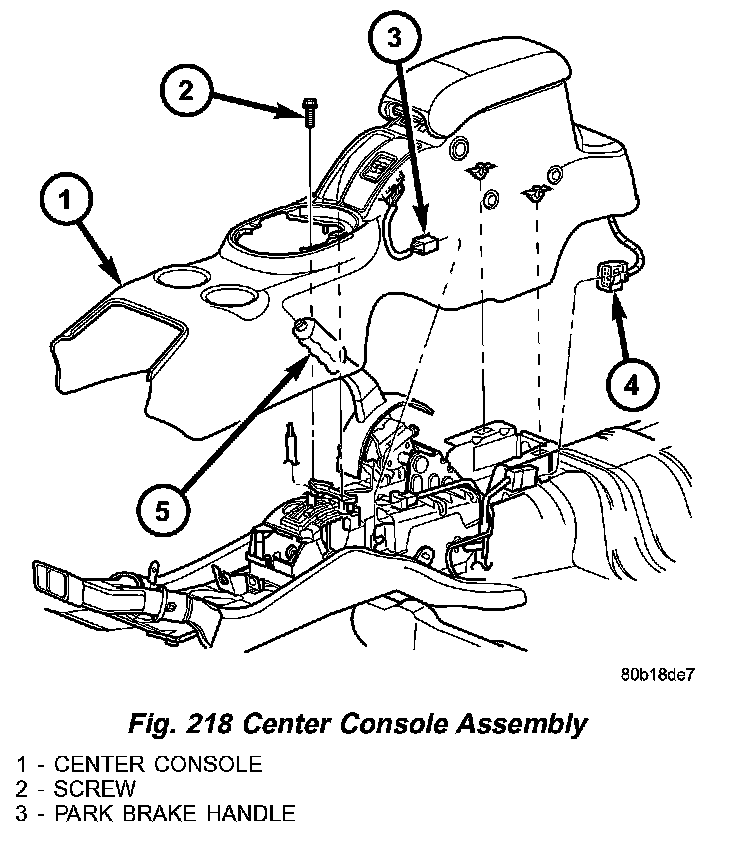

Fig.218 Center Console Assembly:

(4) Remove center console assembly (1) (Fig. 218).
(5) Loosen nut on shift cable adjust lever.

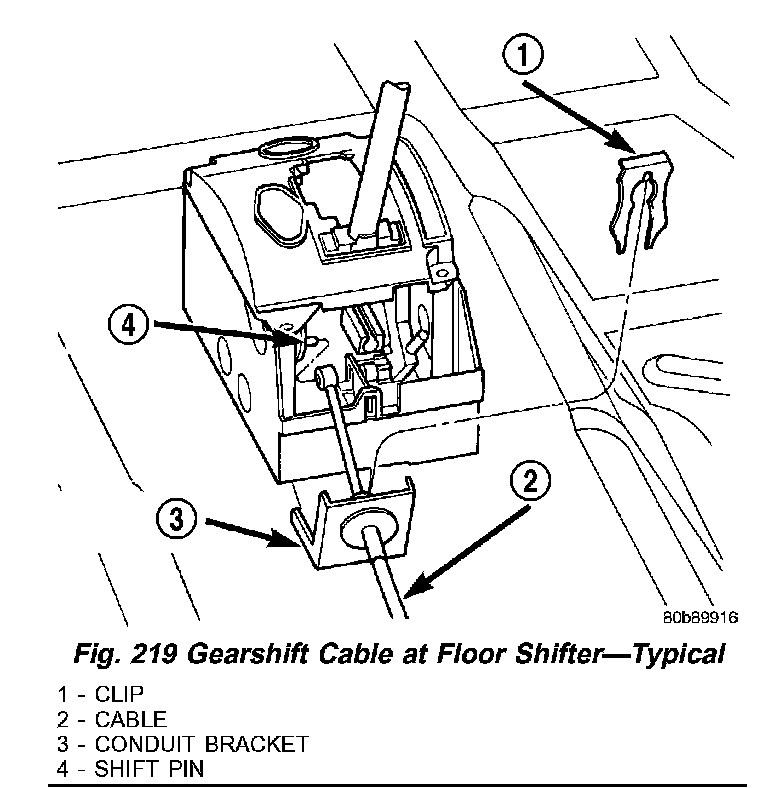

Fig. 219 Gearshift Cable At Floor Shifter-Typical:

(6) Using a flat blade pry tool, remove the shifter cable core end (2) (Fig. 219) from the shift lever pin (4).
(7) Using a flat blade pry tool, pry the cable conduit clip up from the shifter bracket. Pull up on the cable conduit and remove from bracket (3).

Fig. 220 Release Cable From Bracket At Retainer Lock:

(8) Release interlock cable adjuster (1) (Fig. 220) end by inserting pointed object into shift bracket to disengage lock.

Fig. 221 Interlock Cable At Floor Shifter Assembly:

(9) Unsnap the shifter/ignition interlock cable adjuster end (2) from the slot in the gearshift mechanism bracket and disconnect cable core from shifter assembly (1) (Fig. 221).

Fig. 222 Autostick Connector (if equipped):

(10) Unplug autostick connector (1) (Fig. 222).

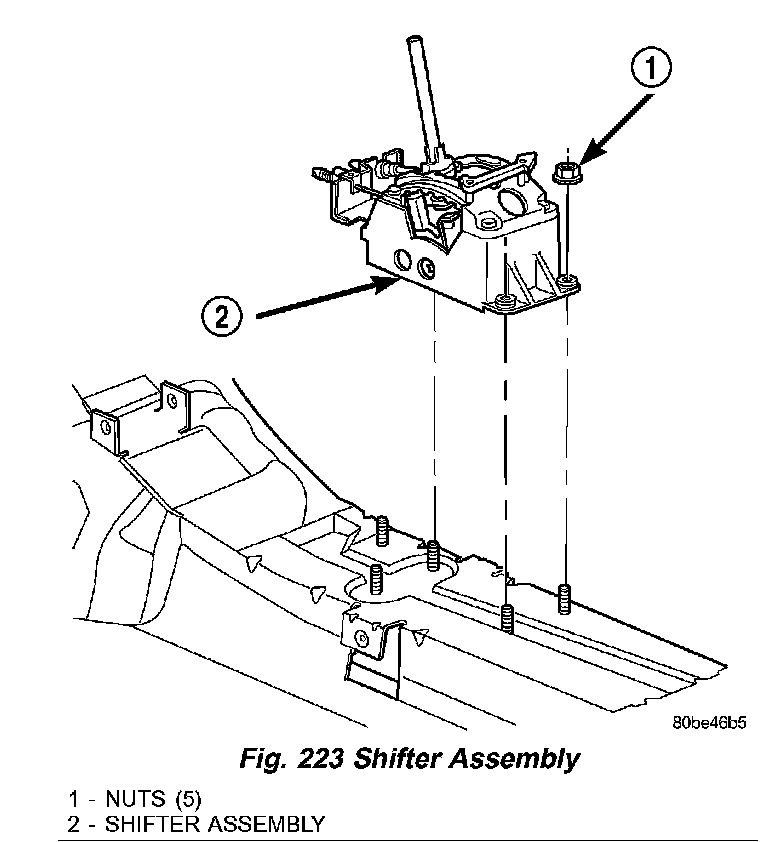

Fig.223 Shifter Assembly:

(11) Remove the five nuts (1) (Fig. 223) at the base of the shifter assembly (2). Remove assembly from vehicle.

INSTALLATION

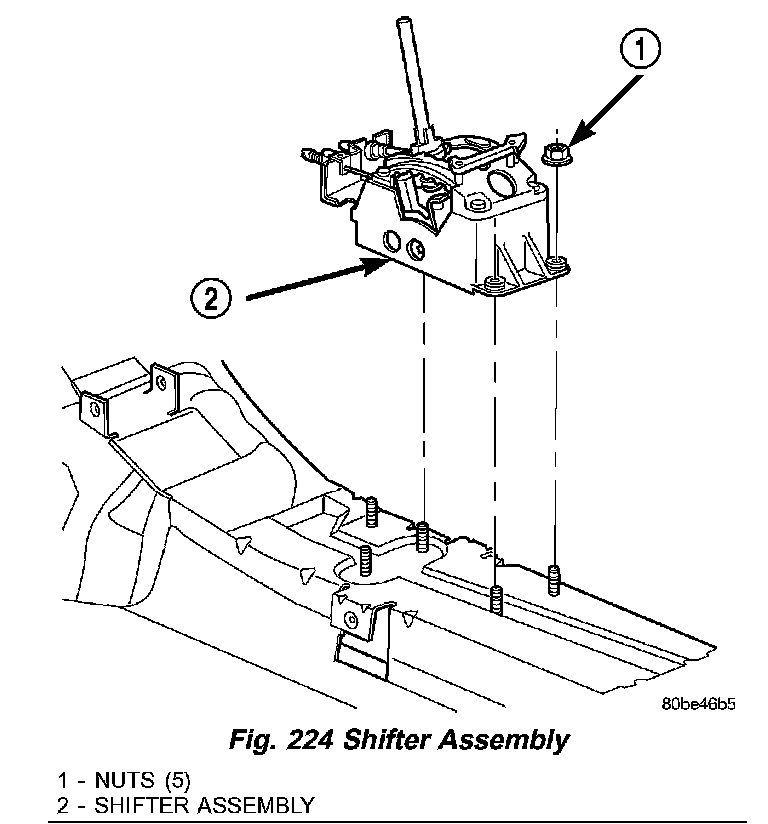

Fig.224 Shifter Assembly:

(1) Install shifter mechanism (2) (Fig. 224). mechanism-to-floor pan nuts to 17 Nm (150 inch lbs.).

Fig.225 Gearshift Cable At Floor Shifter-Typical:

(2) Install gearshift cable (2) (Fig. 225) into conduit bracket (3) and onto shift pin (4). Install retainer clip (1).

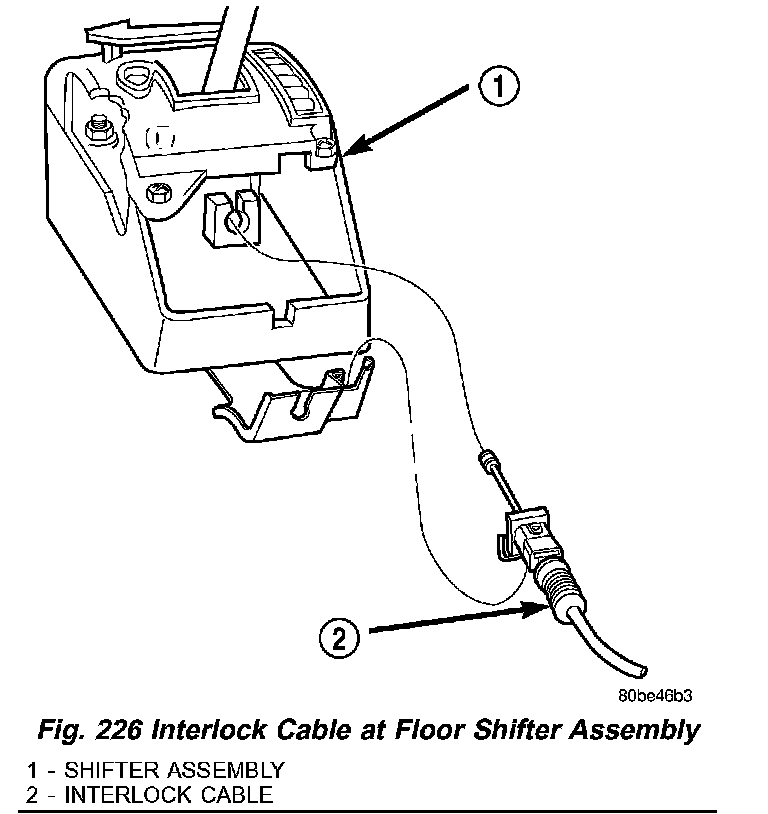

Fig.226 Interlock Cable At Floor Shifter Assembly:

(3) Tighten cable adjuster nut to 23 Nm (200 inch lbs.).
(4) Insert interlock cable core wire into interlock adjustment lever groove. Make sure the interlock cable (2) slug is seated in the groove.
(5) Insert interlock cable adjuster end into bracket and snap into place.
(6) Adjust the gearshift and interlock cables.

NOTE: Gearshift and Interlock cables MUST be adjusted.

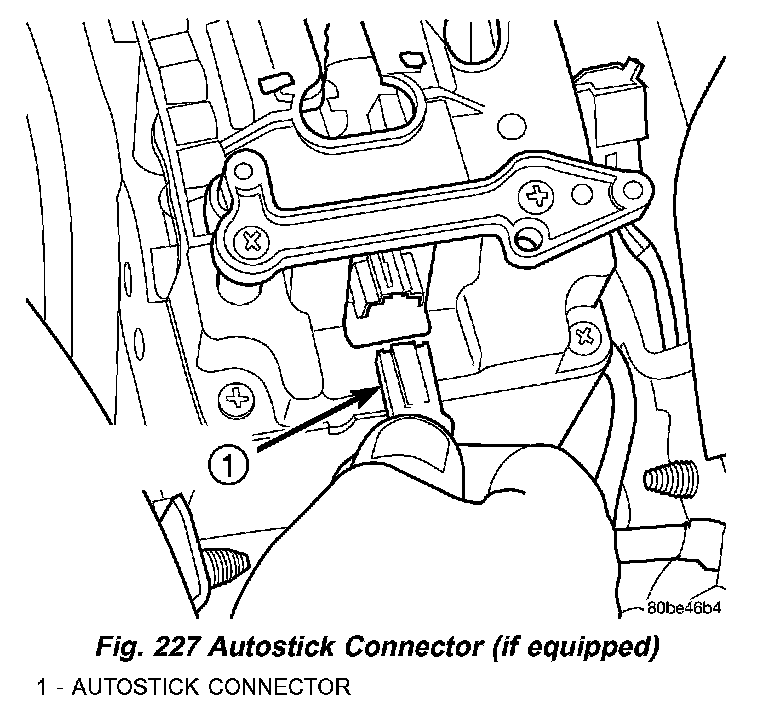

Fig.227 Autostick Connector (if Equipped):

(7) If equipped with Autostick, connect the Autostick connector (1) (Fig. 227).

Fig.228 Center Console Assembly:

(8) Install center console assembly (1) (Fig. 228).

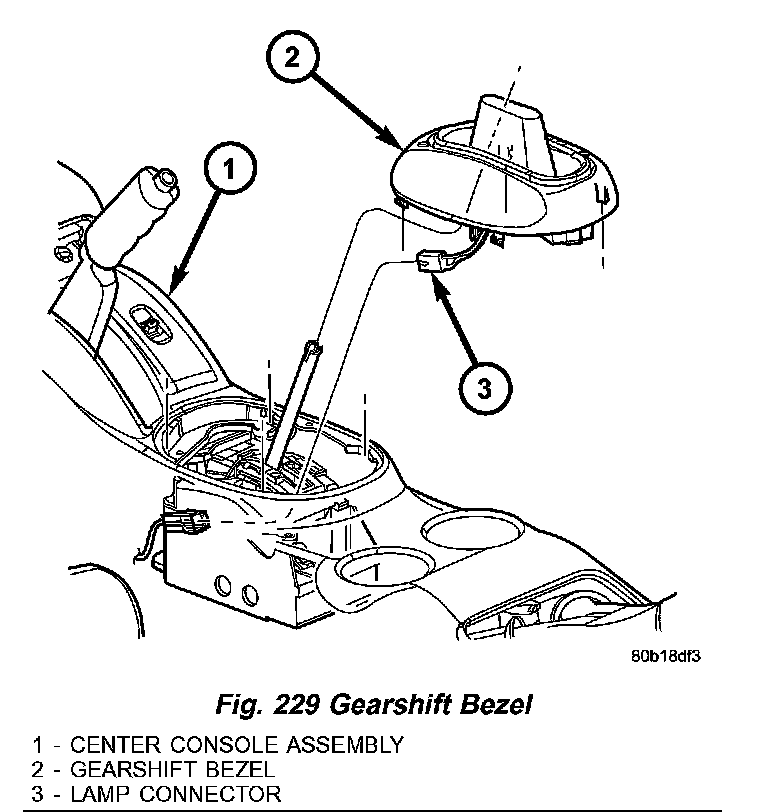

Fig.229 Gearshift Bezel:

(9) Connect range indicator lamp (3) (Fig. 229) and install gearshift bezel (2).

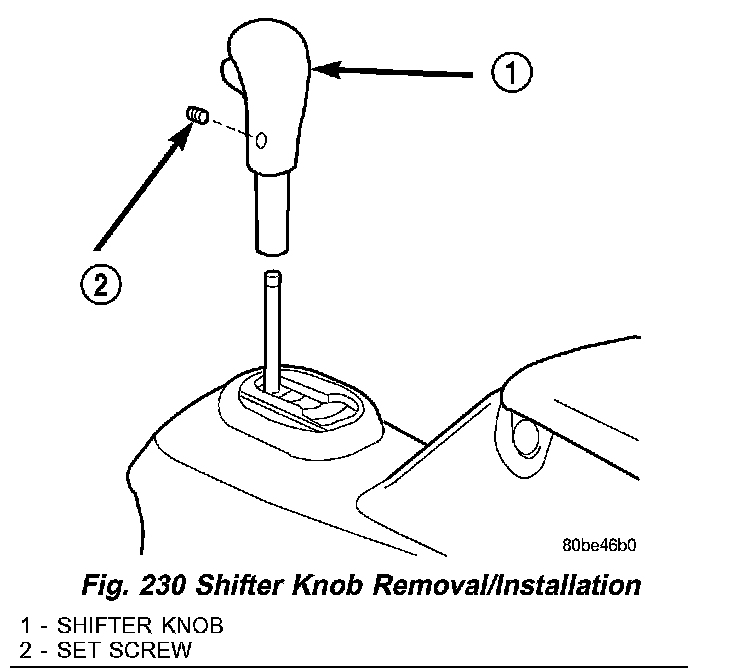

Fig.230 Shift Knob Removal/Installation:

(10) Install the gearshift knob (1) (Fig. 230) and tighten set screw (2) to 2 Nm (20 inch lbs.).
(11) Connect the battery negative cable.
