41TE Automatic Transaxle

41TE AUTOMATIC TRANSAXLE

SHIFT INTERLOCK MECHANISM

REMOVAL
(1) Remove steering column upper and lower shrouds.
(2) Grasp the interlock cable and connector firmly. Remove the interlock cable.

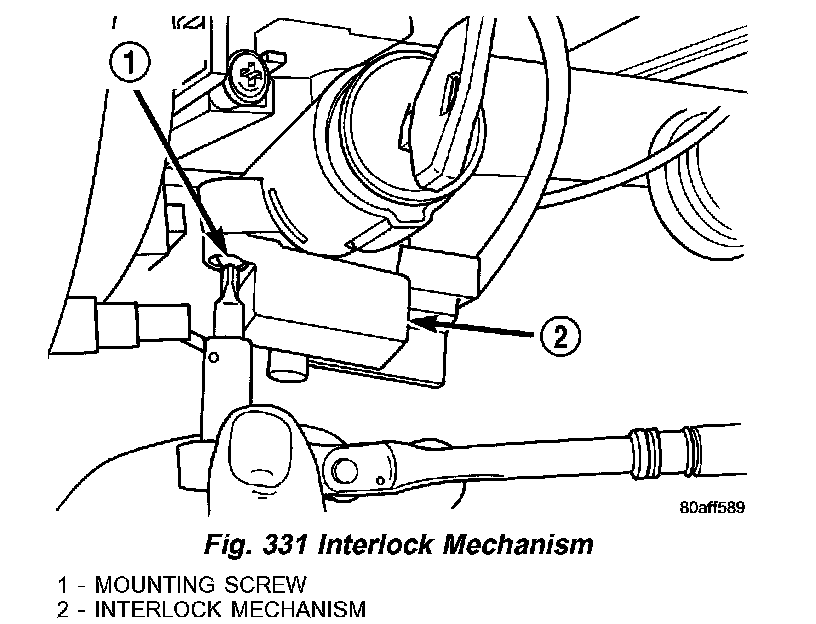

Fig.331 Interlock Mechanism:

(3) Remove the two interlock mechanism to steering column attaching screws (1) (Fig. 331). Remove the interlock mechanism.

INSTALLATION

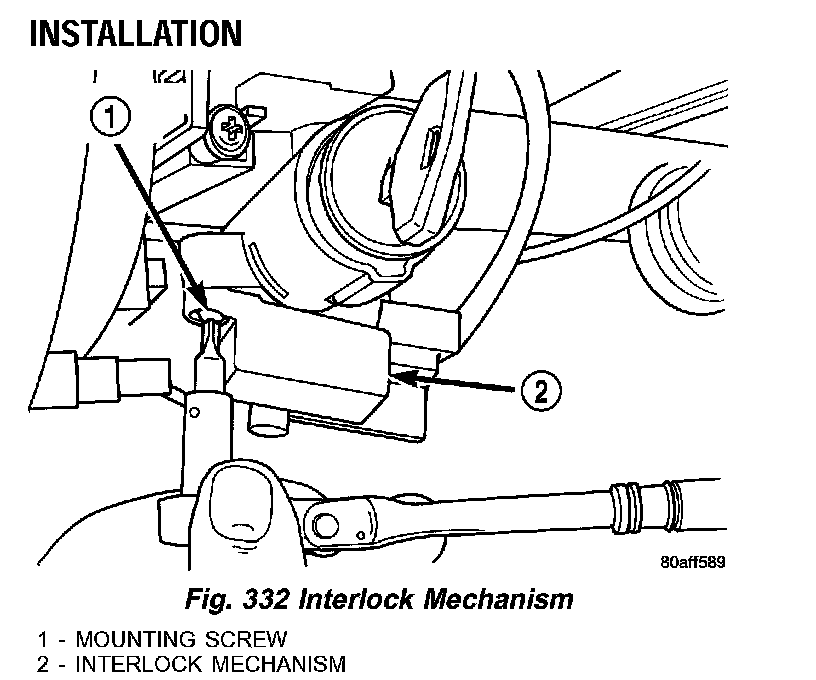

Fig.332 Interlock Mechanism:

(1) Position the interlock housing at steering column. Install the interlock mechanism to steering column attaching screws (1) (Fig. 332). Torque screws to 3 Nm (21 inch lbs.).
(2) Snap the interlock cable into the housing.
(3) Install the lower column covers, shrouds and knee bolster.
