Disassembly
41TE AUTOMATIC TRANSAXLEVALVE BODY
DISASSEMBLY
NOTE: If valve body assembly is being reconditioned, the TCM Quick Learn Procedure must be performed. Testing and Inspection

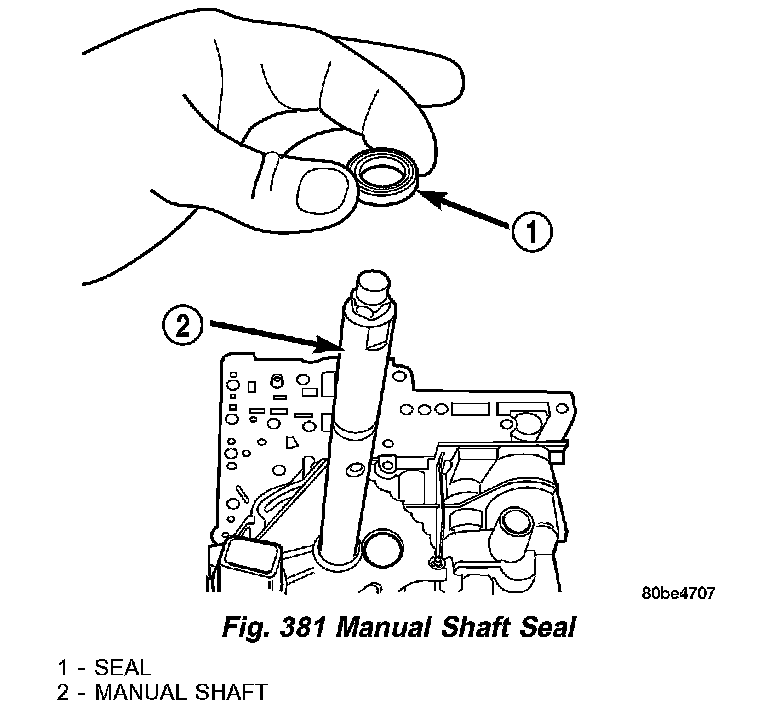

Fig.381 Manual Shaft Seal:
(1) Remove manual shaft seal (1) (Fig. 381).

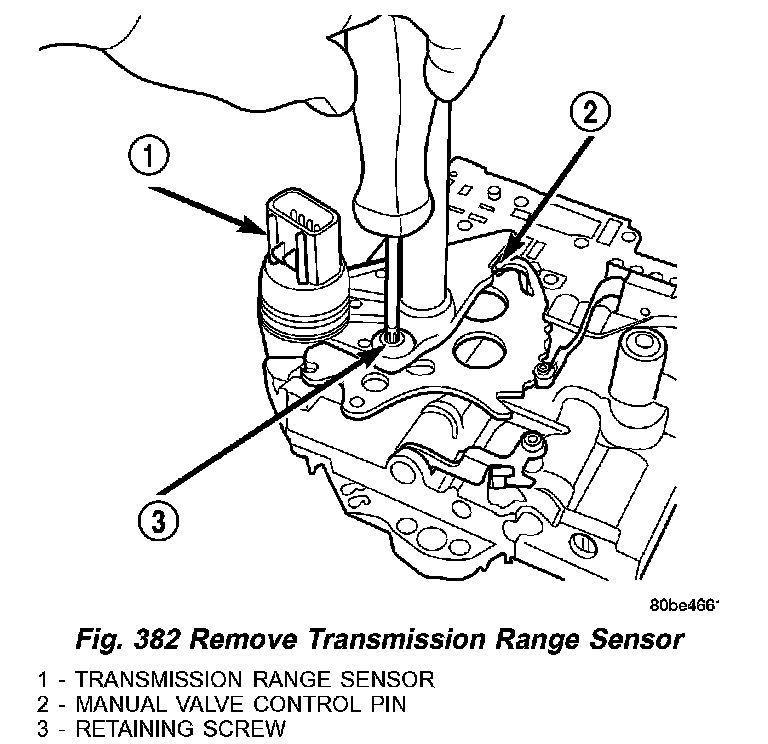

Fig.382 Remove Transmission Range Sensor:
(2) Remove Transmission Range Sensor retaining screw (3) (Fig. 382).

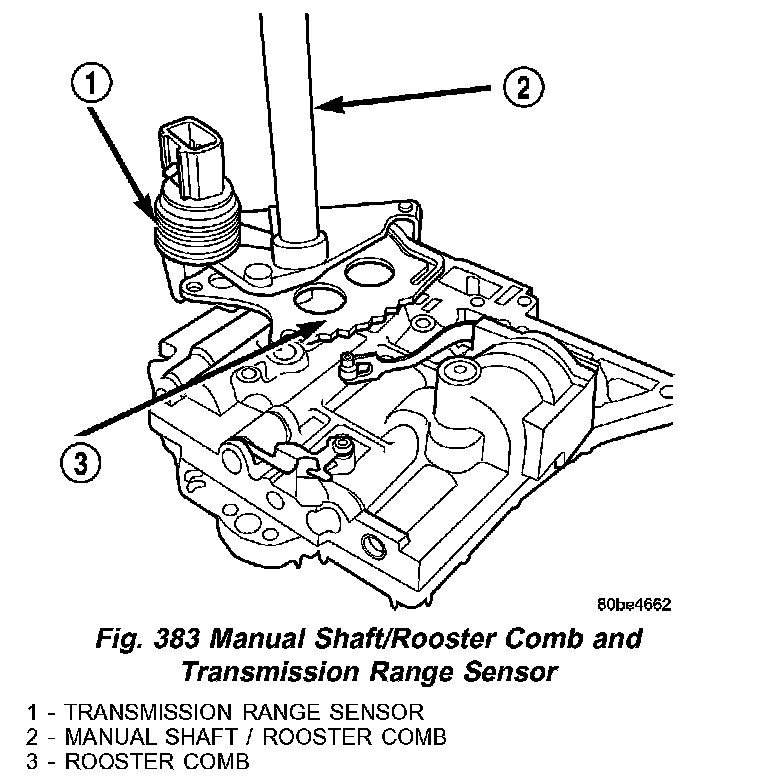

Fig.383 Manual Shaft/Rooster Comb And Transmission Range Sensor:
(3) Remove Manual Shaft/Rooster Comb (3) (Fig. 383) and Transmission Range Sensor (1).

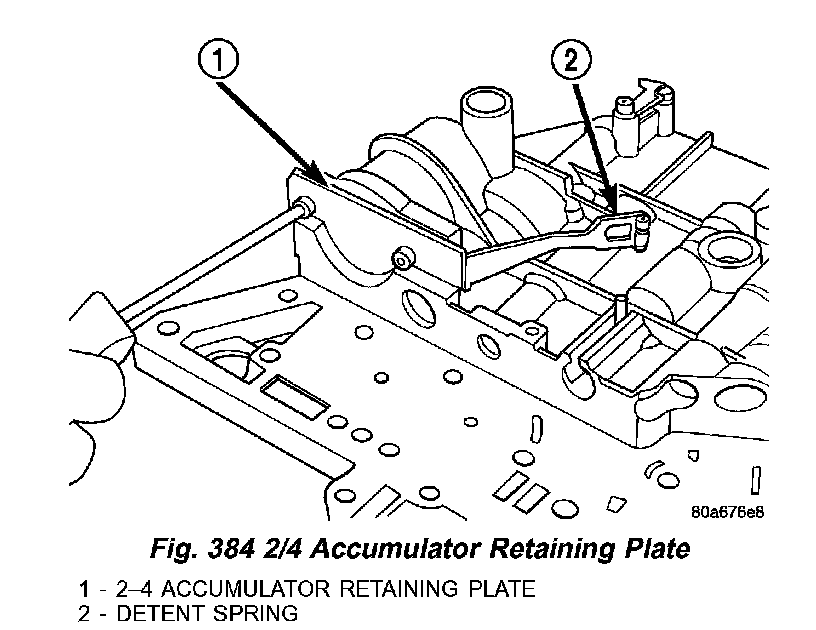

Fig.384 2/4 Accumulator Retaining Plate:
(4) Remove 2/4 Accumulator Retaining Plate (1) (Fig. 384).
Fig.385 2/4 Accumulator Assembly:
(5) Remove 2/4 Accumulator components (2, 3, 4, 5 and 6) (Fig. 385).

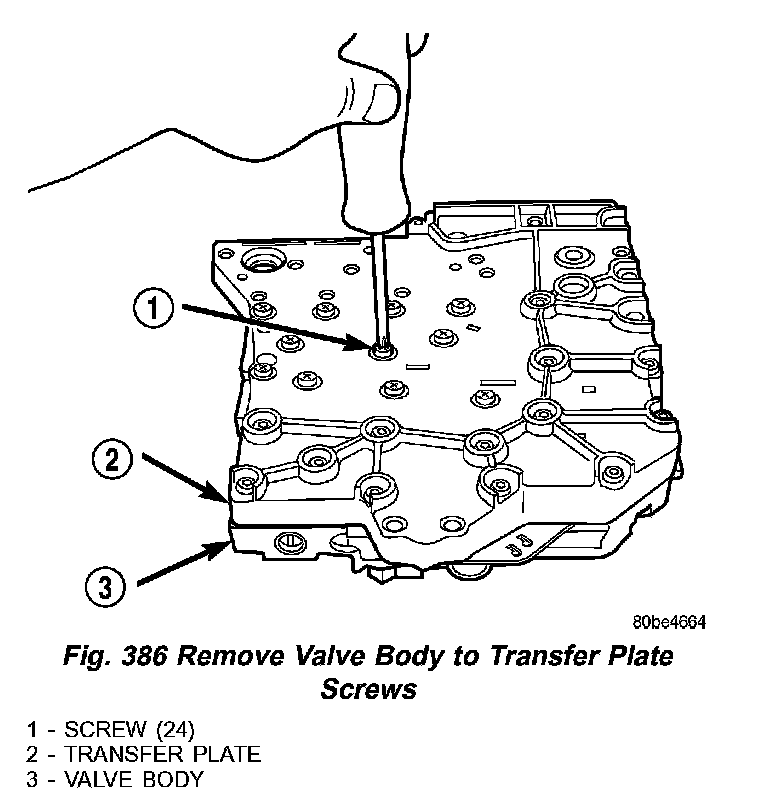

Fig.386 Remove Valve Body To Transfer Plate Screws:
(6) Remove Valve Body (3) (Fig. 386) to Transfer Plate (2) screws (1).
Fig.387 Remove Transfer Plate:
(7) Invert assembly and remove Transfer Plate (1) (Fig. 387). Beware of loose check balls.

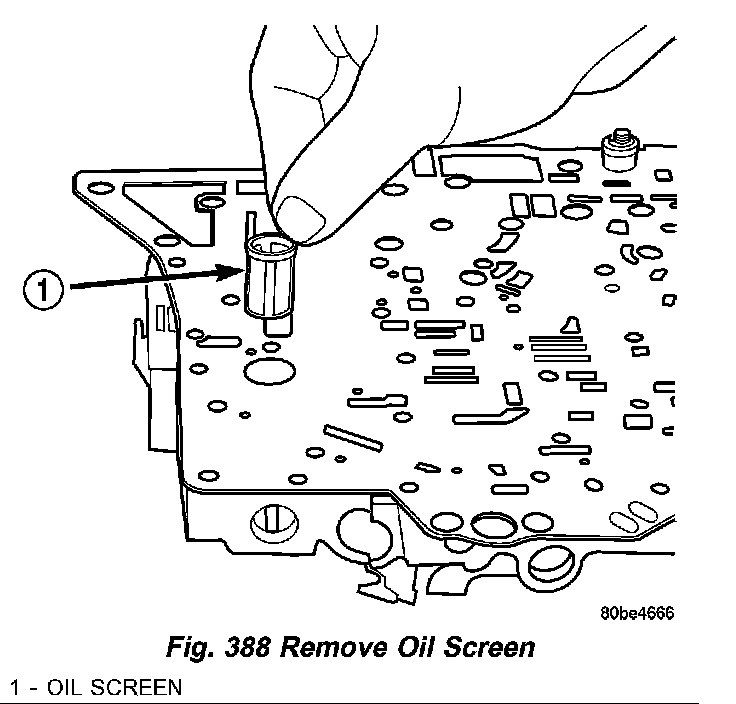

Fig.388 Remove Oil Screen:
(8) Remove oil screen (1) (Fig. 388).

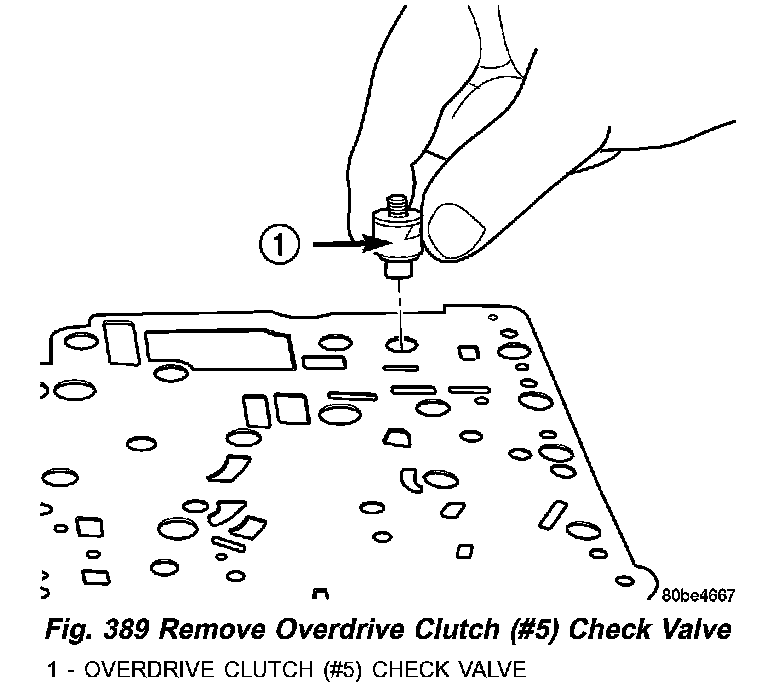

Fig.389 Remove Overdrive:
(9) Remove the overdrive clutch (#5) check valve (1) (Fig. 389).
Fig.390 Remove Separator Plate:
(10) Remove separator plate (1) (Fig. 390).

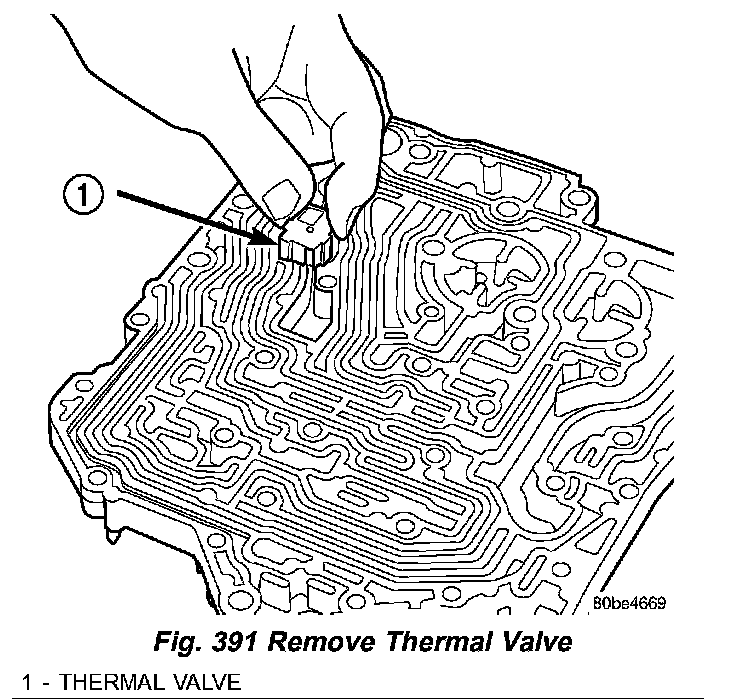

Fig.391 Remove Thermal Valve:
(11) Remove thermal valve (1) (Fig. 391).

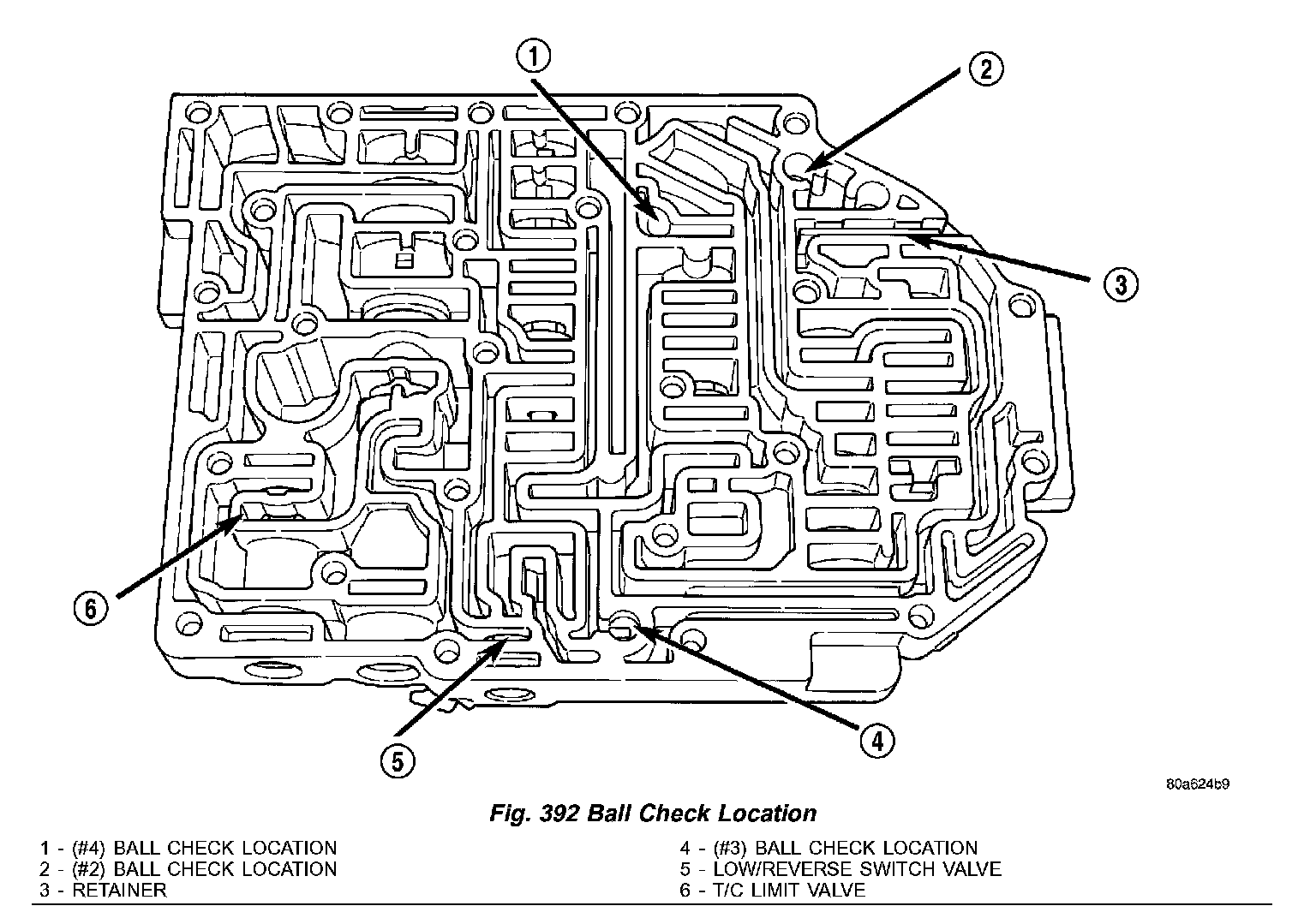

Fig.392 Ball Check Location:
(12) Remove check balls, (1 ) (Fig. 392) (#4) ball check location, (2) (#2) ball check location, (3) retainer, (4) (#3) ball check location, (5) low/reverse switch valve and (6) t/c limit valve.
NOTE: Tag all valve /spring assemblies for reassembly identification.

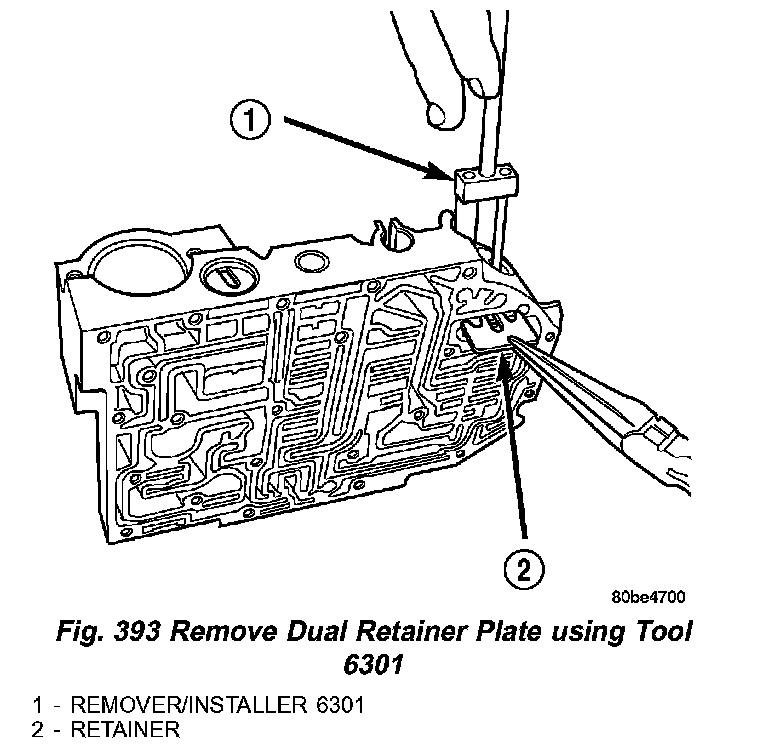

Fig.393 Remove Dual Retainer Plate Using Tool 6301:
(13) Remove dual retainer plate (2) (Fig. 393) using Remover/Installer 6301(l).

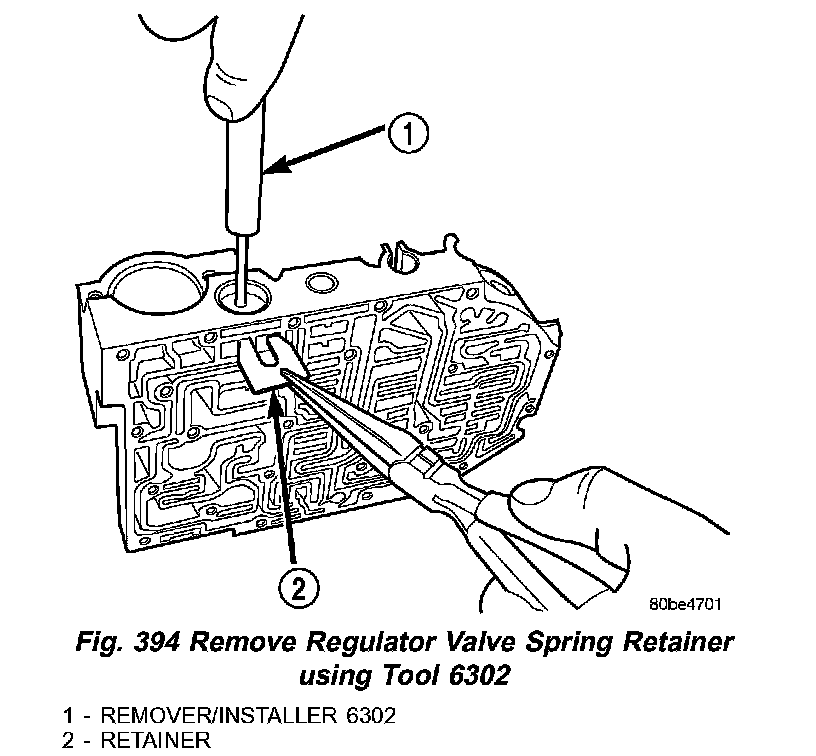

Fig.394 Remove Regulator Valve Spring Retainer Using Tool 6302:
(14) Remove regulator valve spring retainer (2) (Fig. 394) using Remover/Installer 6302 (1).

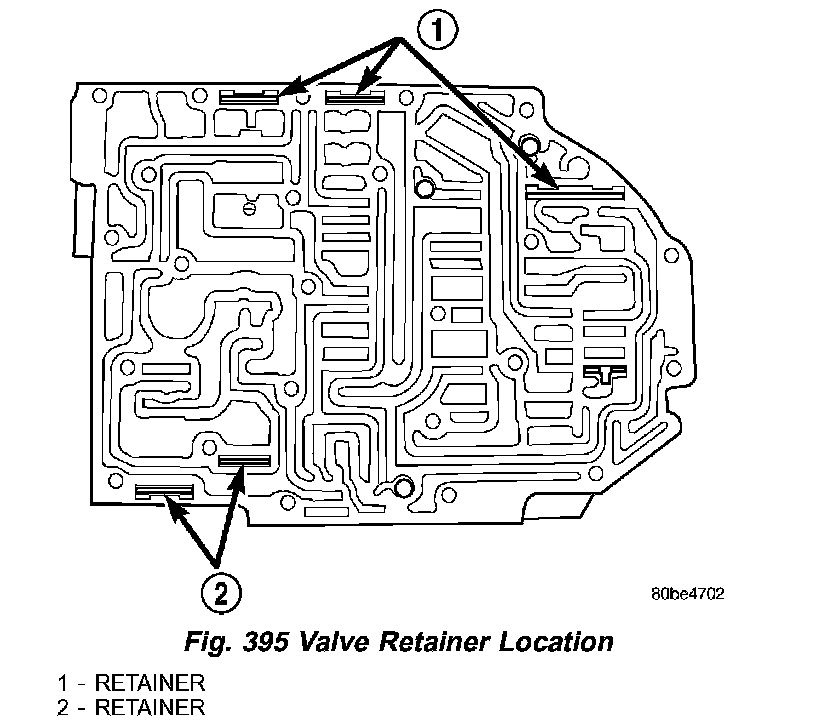

Fig.395 Valve Retainer Location:
(15) Remove remaining retainers (1,2) (Fig. 395).

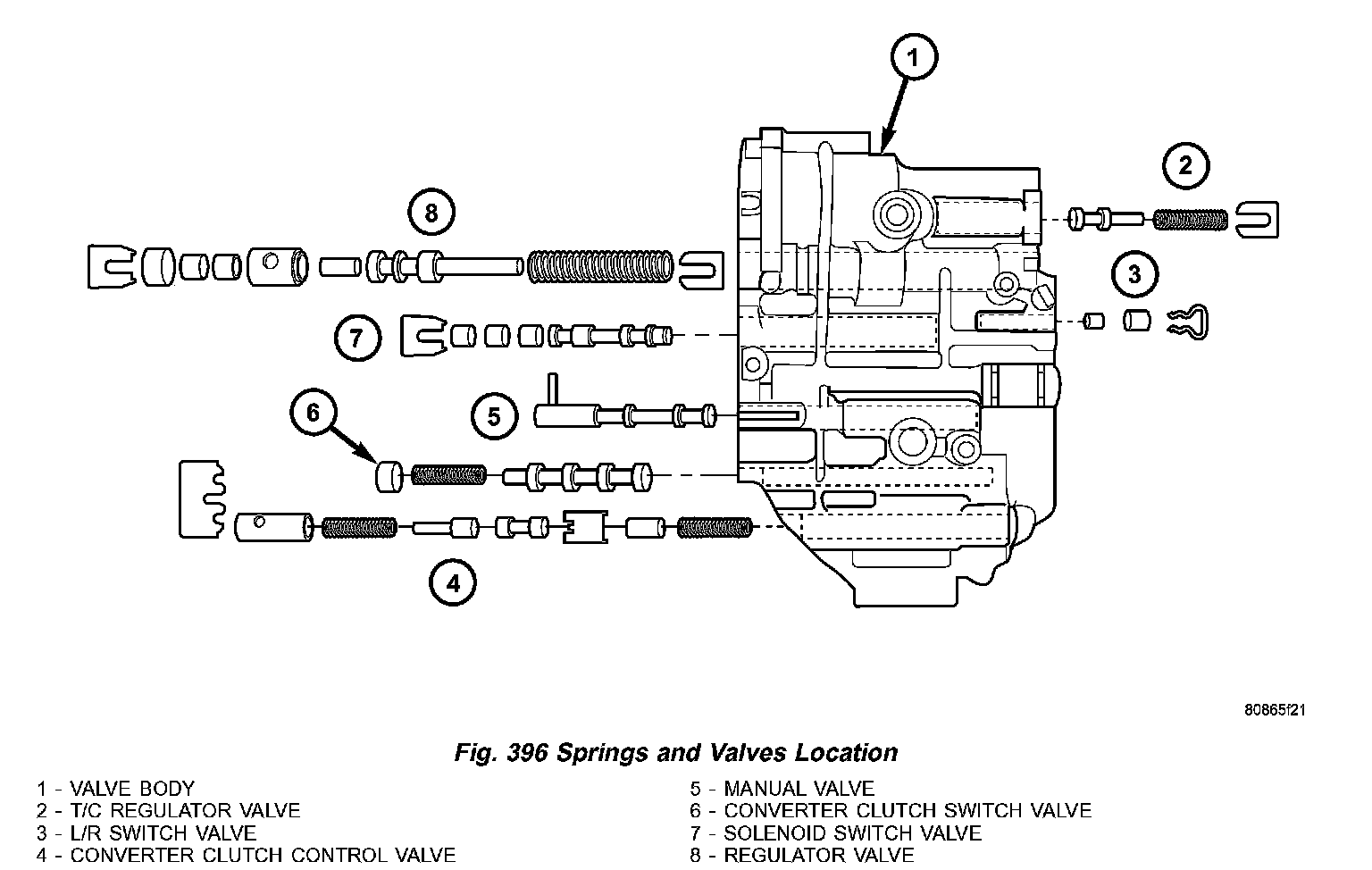

Fig.396 Springs And Valves Location:
(16) Remove valves and springs (Fig. 396).
