41TE AUTOMATIC TRANSAXLE

OIL PUMP

ASSEMBLY

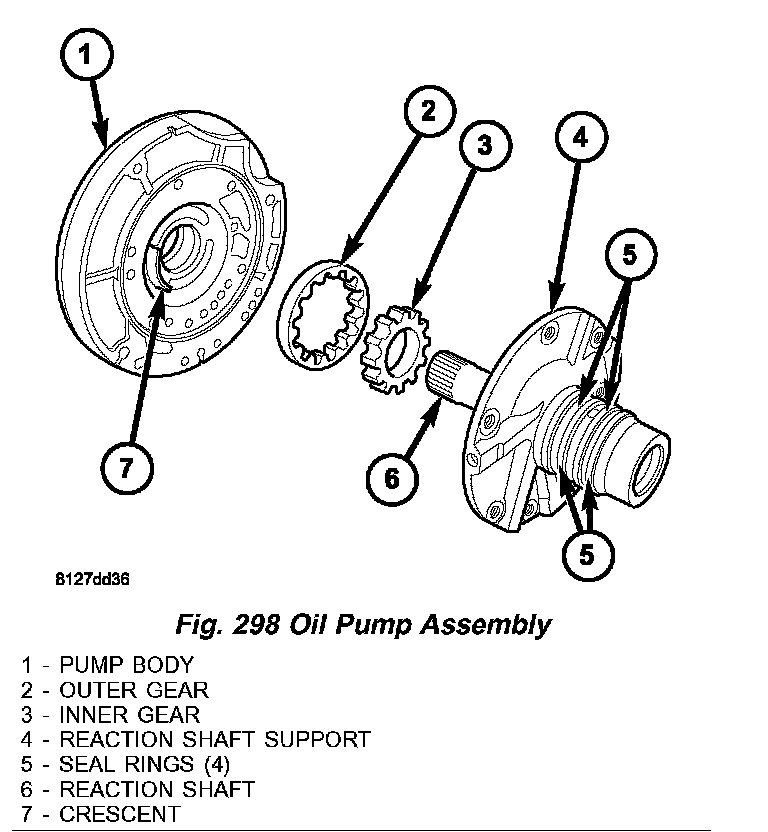

Fig.298 Oil Pump Assembly:

(1) Assemble oil pump (Fig. 298).

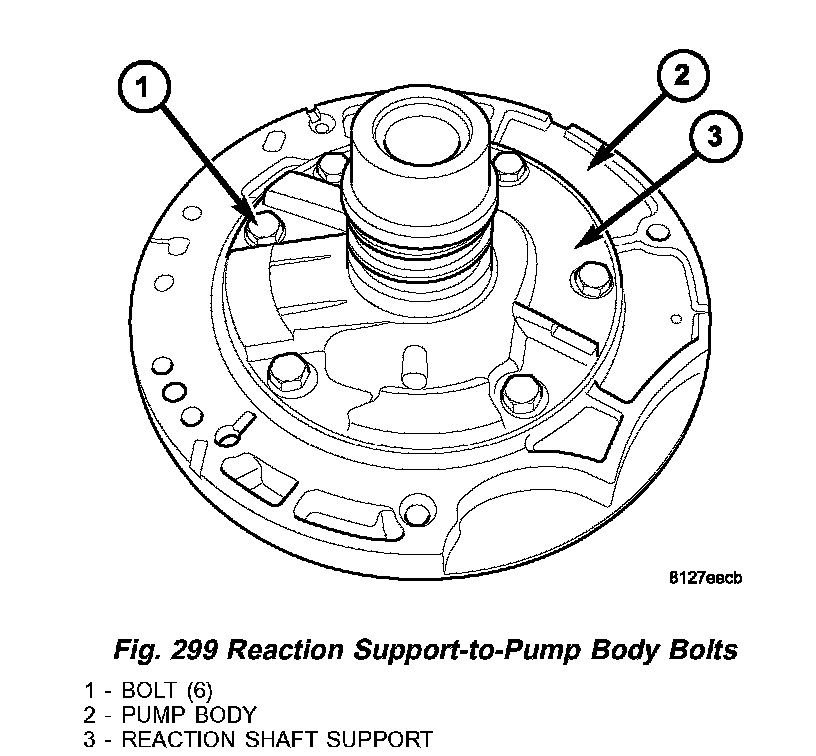

Fig.299 Reaction Support-to-Pump Body Bolts:

(2) Install and torque reaction shaft support-to-oil pump housing bolts (1) (Fig. 299) to 28 Nm (20 ft. lbs.) torque.
