Disassembly

41TE AUTOMATIC TRANSAXLE

FINAL DRIVE

DISASSEMBLY

NOTE: The transfer shaft should be removed for differential repair and bearing turning torque checking.

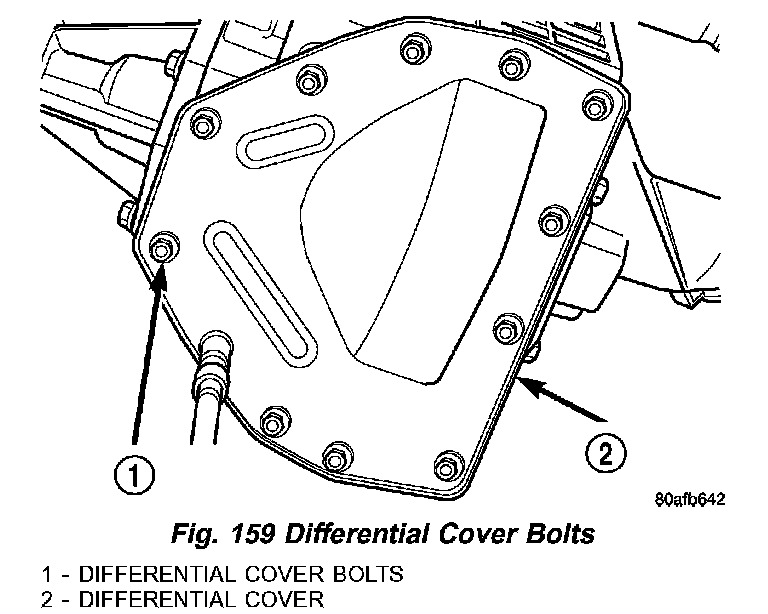

Fig.159 Differential Cover Bolts:

(1) Remove the differential cover and bolts (1) (Fig. 159).

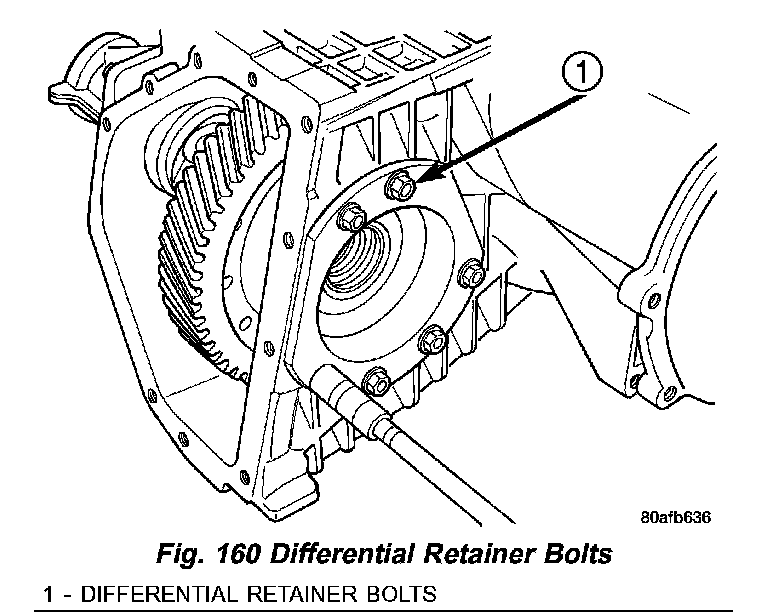

Fig.160 Differential Retainer Bolts:

(2) Remove the differential bearing retainer bolts (1) (Fig. 160).

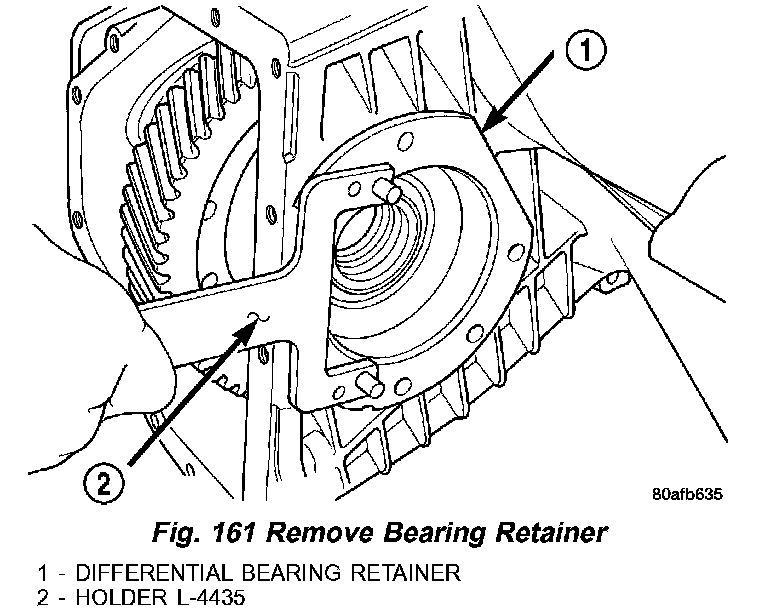

Fig.161 Remove Bearing Retainer:

(3) Remove the differential bearing retainer (1) (Fig. 161) using Holder L-4435 (2).
(4) Using a plastic hammer, remove extension housing/adapter plate on the right side of the transaxle.

WARNING:/ HOLD ONTO DIFFERENTIAL ASSEMBLY TO PREVENT IT FROM ROLLING OUT OF HOUSING.

(5) Remove differential assembly.

Fig.162 Checking Side Gear End Play (Extension Housing Side):

(6) Set up Dial Indicator Set C-3339 (2) and Adapter C-4996 (1) (Fig. 162) to measure side gear end play (Extension Housing Side). Side gear end play must be within 0.001 - 0.013 inch.

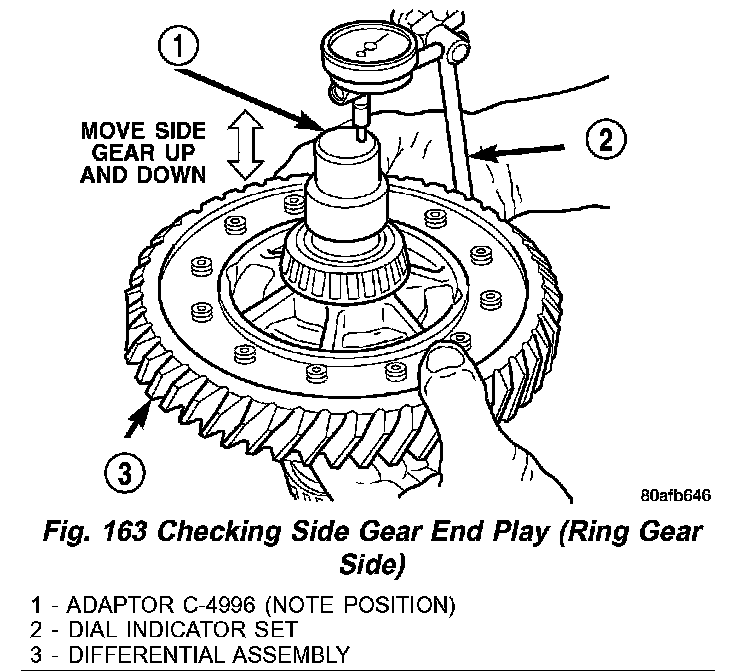

Fig.163 Checking Side Gear End Play (Ring Gear Side):

(7) Set up Dial Indicator Set C-3339 (2) and Adapter C-4996 (1) (Fig. 163) to measure side gear end play (Ring Gear Side). Side gear end play must be within 0.001 - 0.013 inch.

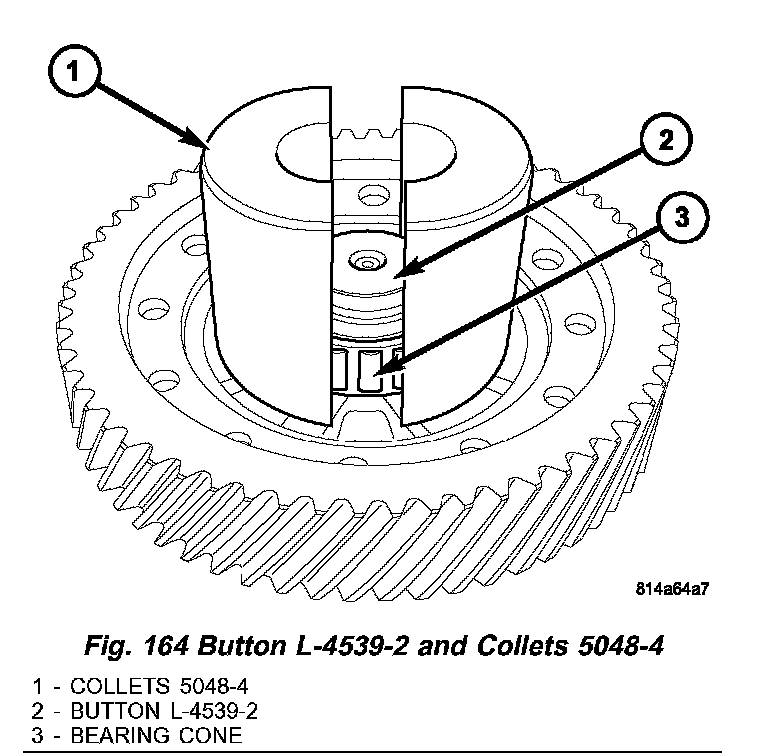

Fig.164 Button L-4539-2 And Collets 5048-4:

(8) Remove differential side bearing cone (3) (Fig. 164) from ring gear side of differential. Install button L-4539-2 (2), and Collets 5048-4 (1).

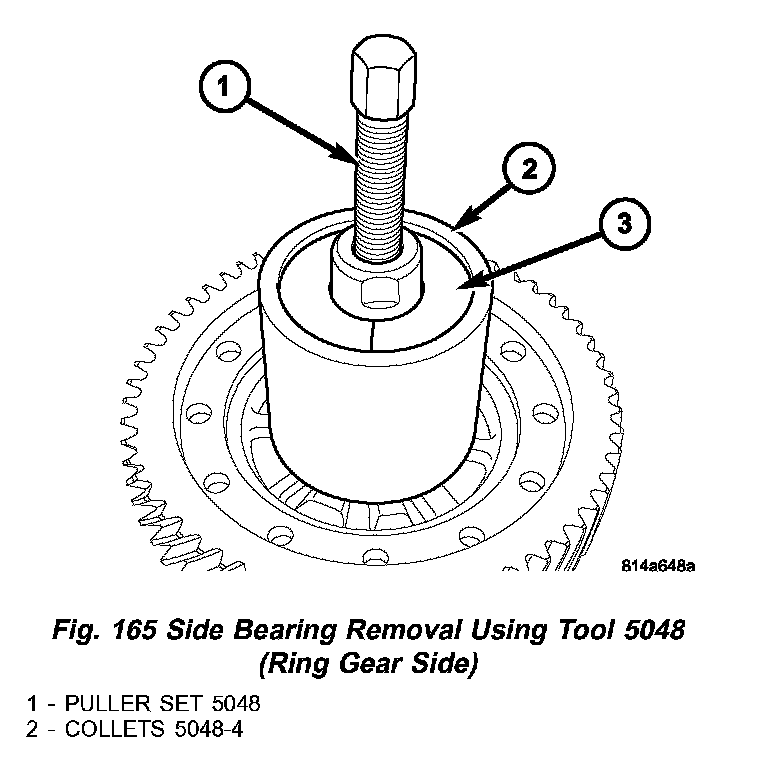

Fig.165 Side Bearing Removal Using Tool 5048 (Ring Gear Side):

(9) Install Puller Set 5048 (1) (Fig. 165), collets 5048-4 (2) and sleeve. Remove and discard bearing cone.

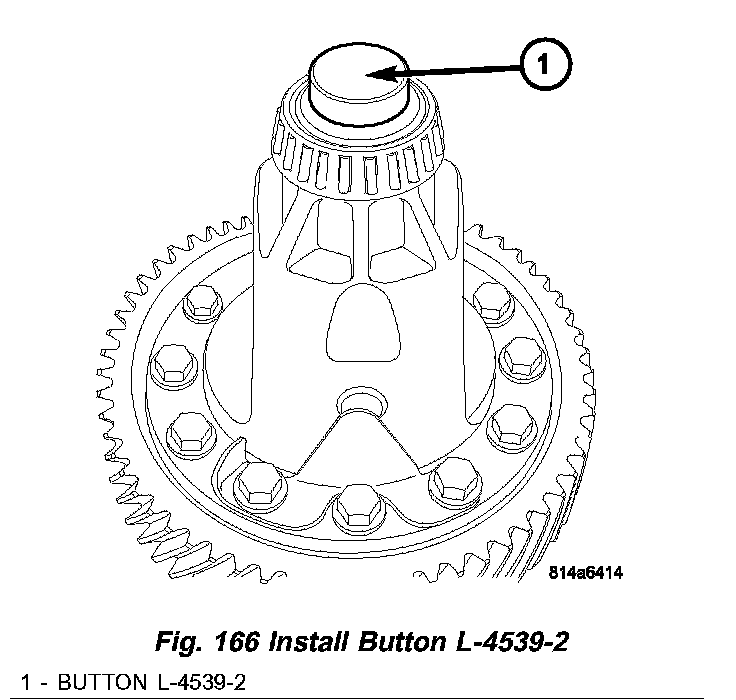

Fig.166 Install Button L-4539-2:

(10) Remove differential side bearing cone from outboard end (opposite ring gear) of differential. Install Button L-4539-2 (1) (Fig. 166).

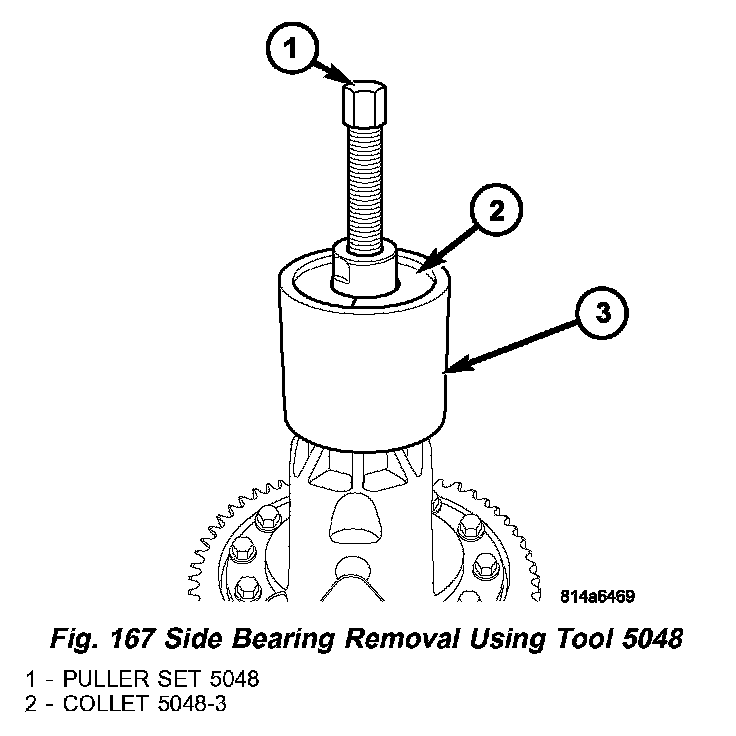

Fig.167 Side Bearing Removal Using Tool 5048:

(11) Install Puller Set 5048 (1) (Fig. 167), (2) collets 5048-3 and sleeve. Remove and discard bearing cone.

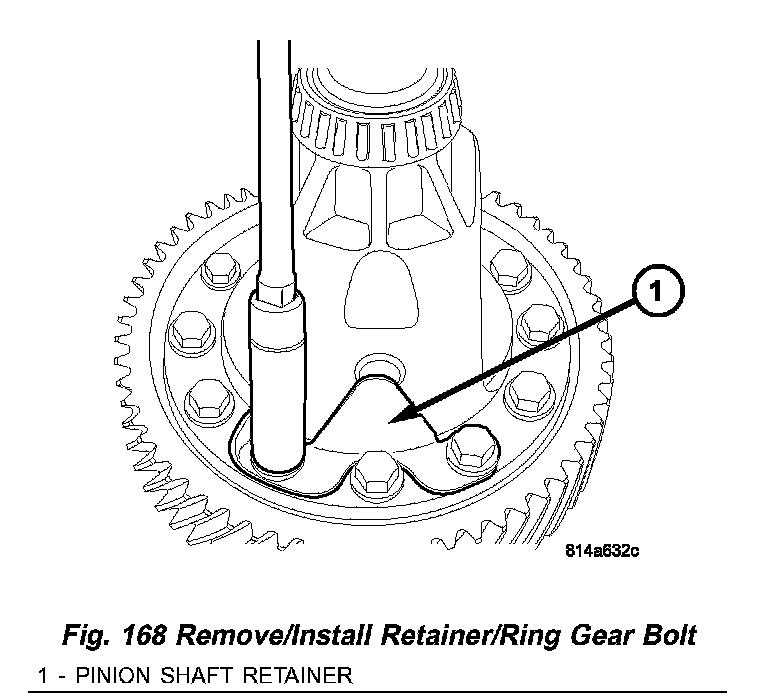

Fig.168 Remove/Install Retainer/Ring Gear Bolt:

(12) Remove pinion shaft retainer plate bolts (1) (Fig. 168).

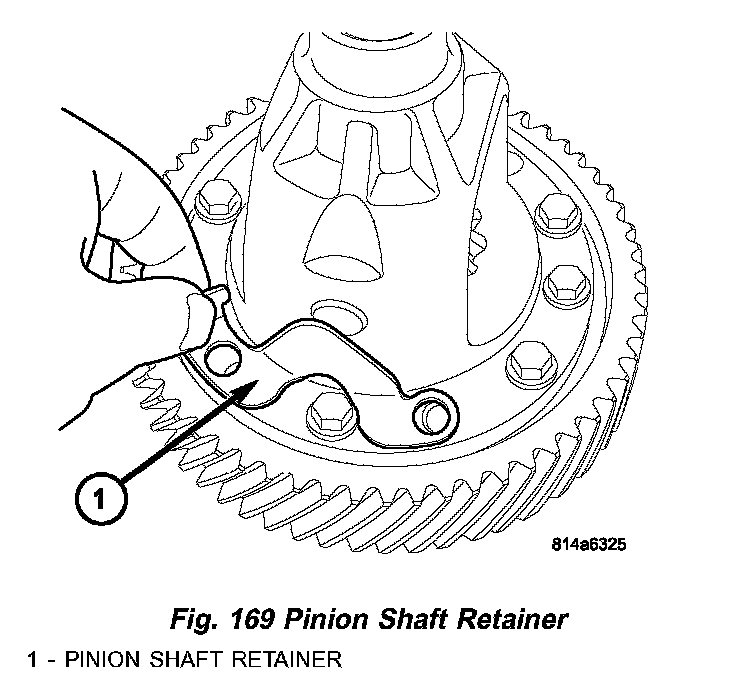

Fig.149 Pinion Shaft Retainer:

(13) Remove pinion shaft retainer (1) (Fig. 169).

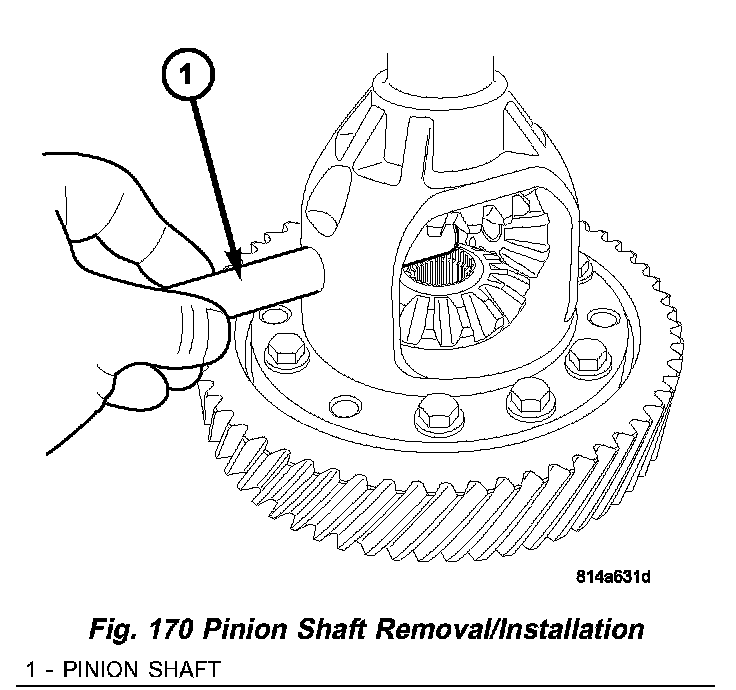

Fig. 170 Pinion Shaft Removal/Installation:

(14) Remove pinion shaft (1) (Fig. 170) from differential case.

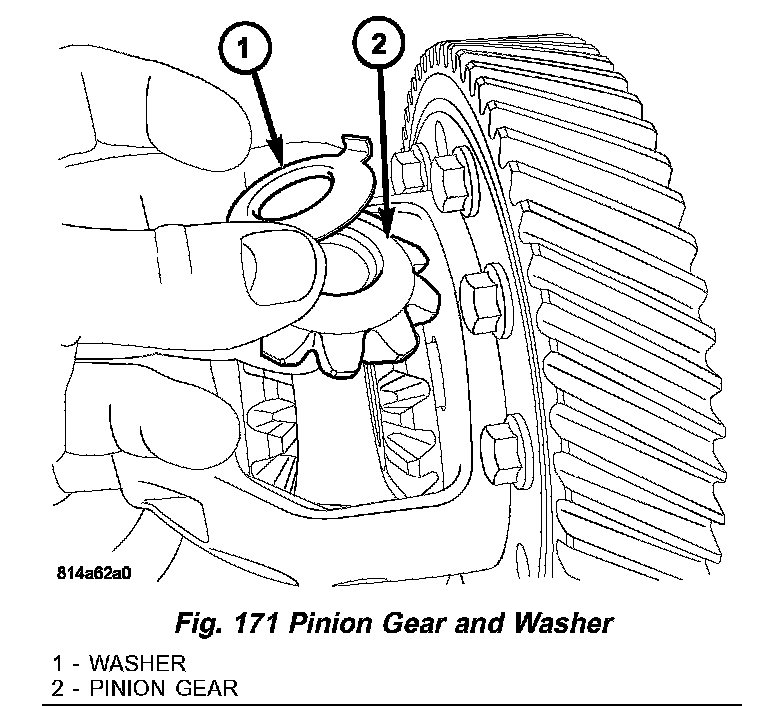

Fig.171 Pinion Gear And Washer:

(15) Rotate pinion gears (2) (Fig. 171) about case and remove (w/washer) (1).

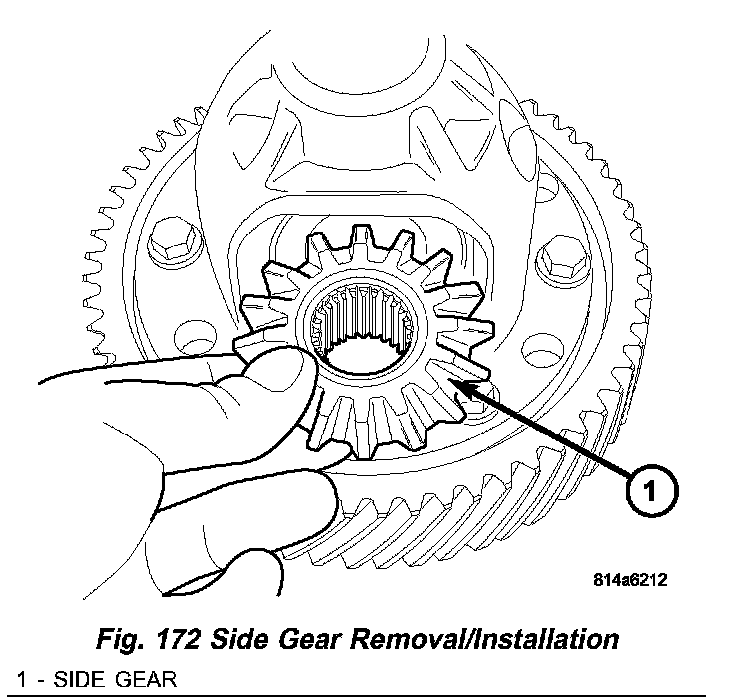

Fig.172 Side Gear Removal/Installation:

(16) Remove differential side gears (1) (Fig. 172).

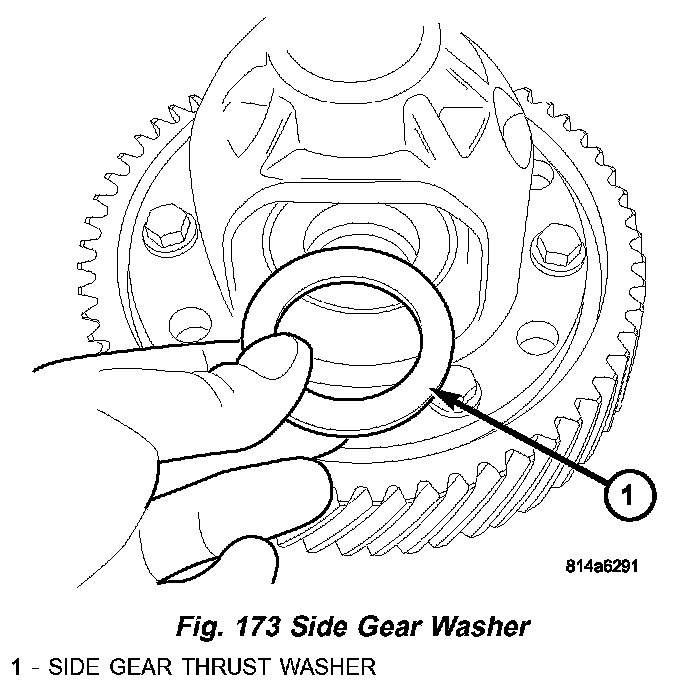

Fig.173 Side Gear Washer:

(17) Remove side gear thrust washers (1) (Fig. 173).

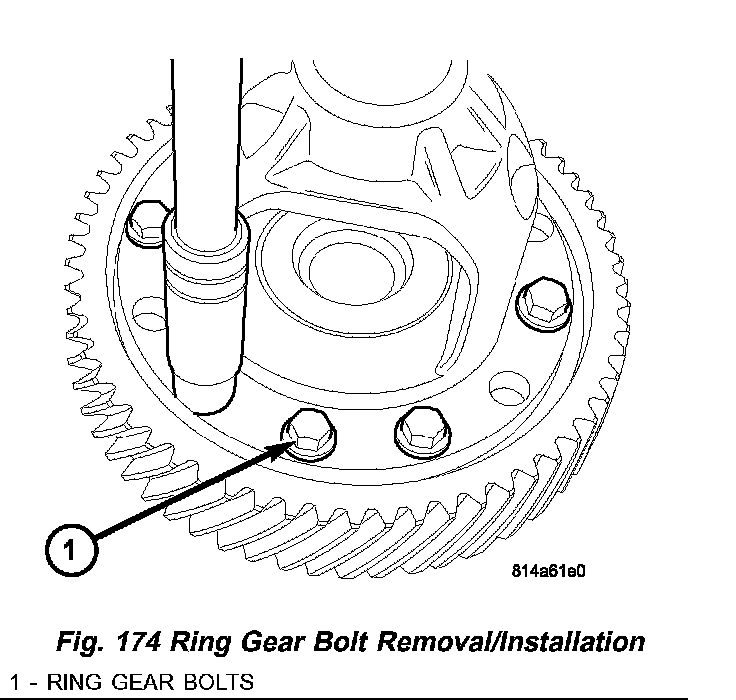

Fig.174 Ring Gear Bolt Removal/Installation:

(18) Remove remaining differential ring gear-to-case bolts (1) (Fig. 174).

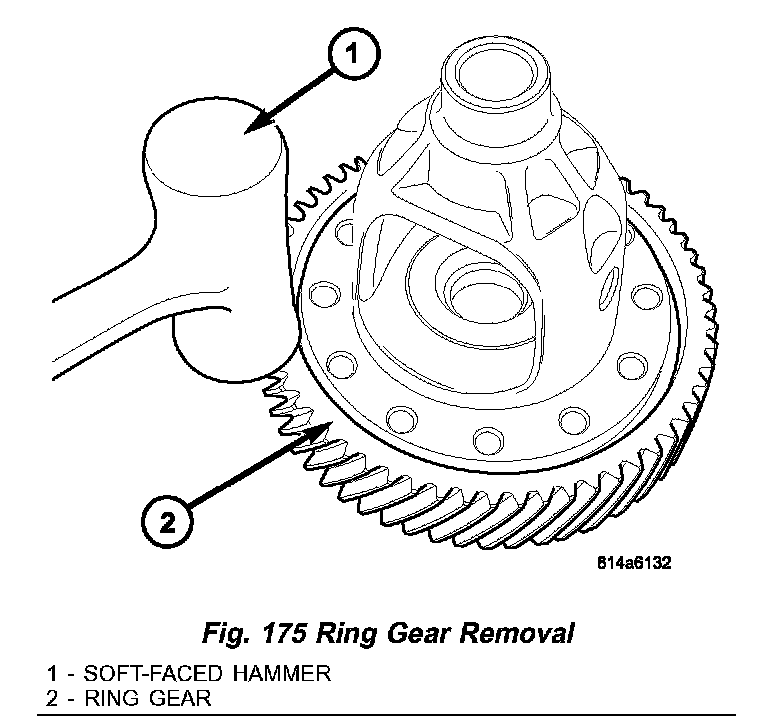

Fig.175 Ring Gear Removal:

(19) Using a soft-faced hammer (1) (Fig. 175), remove ring gear (2) from case.

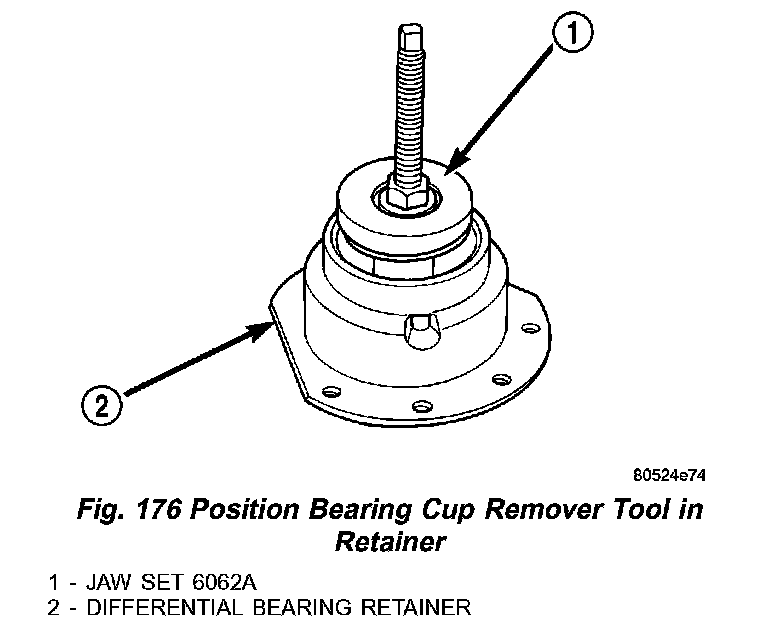

Fig.176 Position Bearing Cup Remover Tool In Retainer:

(20) Using Jaw Set 6062A (Fig. 176), remove the differential bearing race from the extension housing/adapter plate.

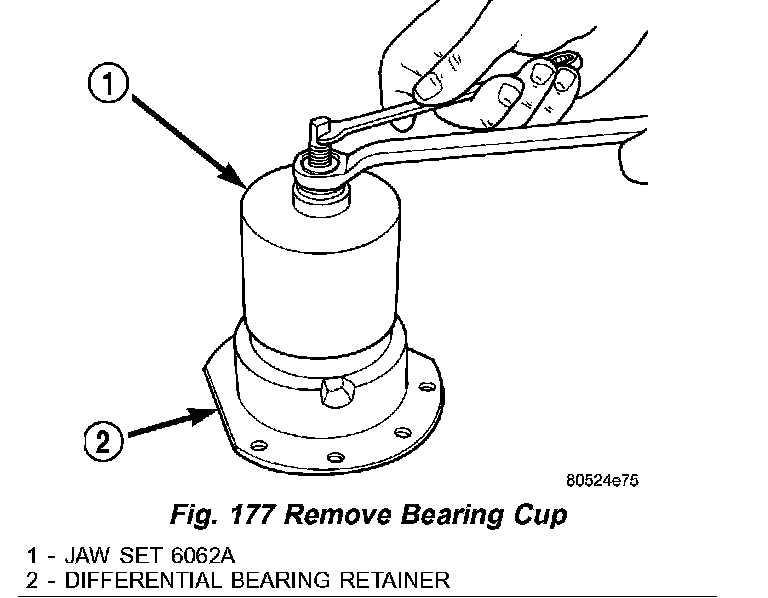

Fig.177 Remove Bearing Cup:

(21) Using Jaw Set 6062A (Fig. 177), remove the differential bearing race from the bearing retainer.

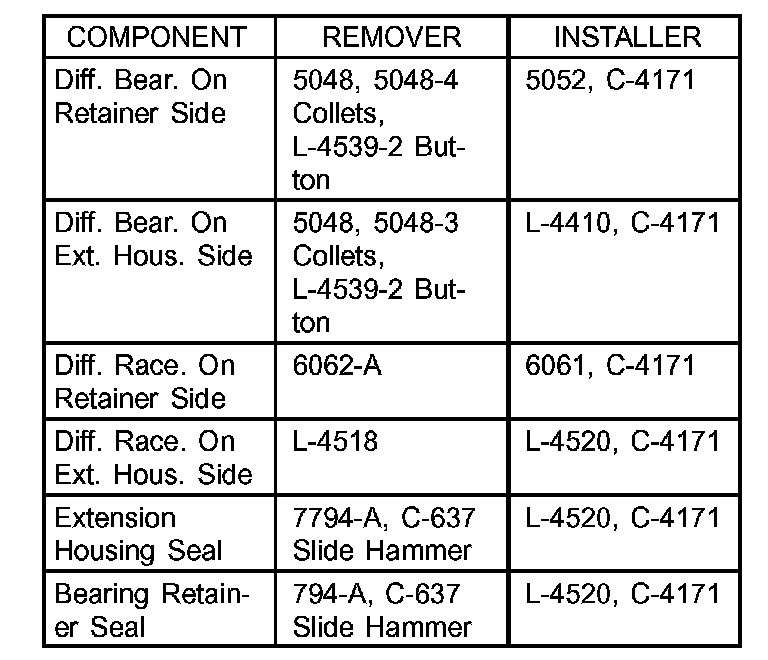

41TE AUTOMATIC TRANSAXLE DIFFERENTIAL SERVICE TOOLS:

DIFFERENTIAL SERVICE TOOLS
