Speed Sensor - Output

41TE AUTOMATIC TRANSAXLE

SPEED SENSOR - OUTPUT

REMOVAL
(1) Disconnect battery negative cable.
(2) Raise vehicle on hoist.

Fig.354 Transmission Connectors:

(3) Disconnect output speed sensor connector (3) (Fig. 354).

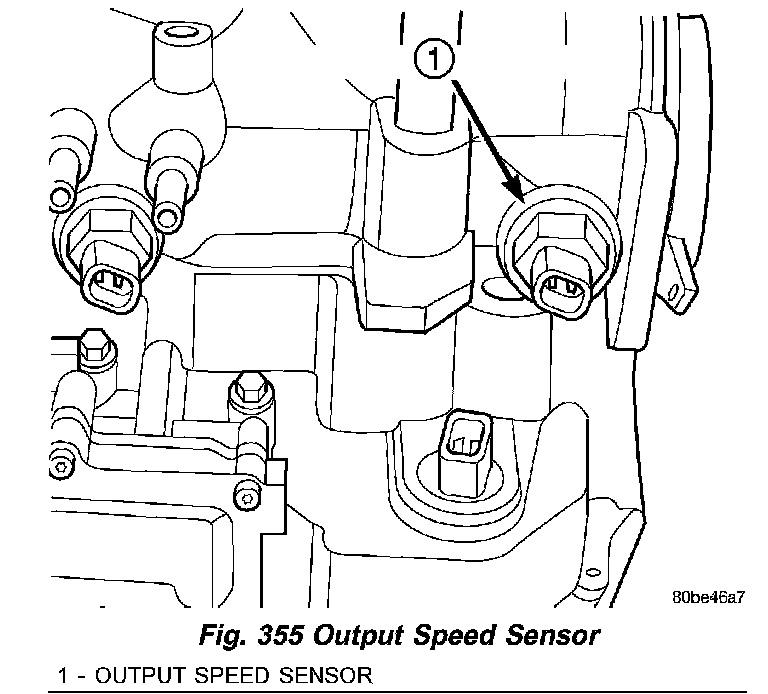

Fig.355 Output Speed Sensor:

(4) Unscrew and remove output speed sensor (1) (Fig. 355).

Fig.356 O-Ring Location:

(5) Inspect speed sensor O-ring (2) (Fig. 356) and replace if necessary.

INSTALLATION

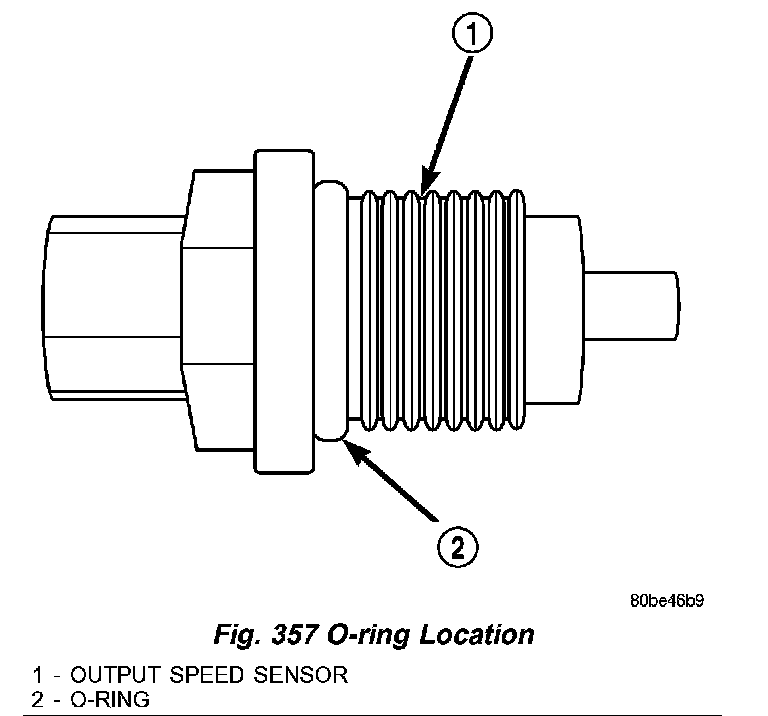

Fig.357 O-Ring Location:

(1) Verify O-ring (2) (Fig. 357) is installed into position.

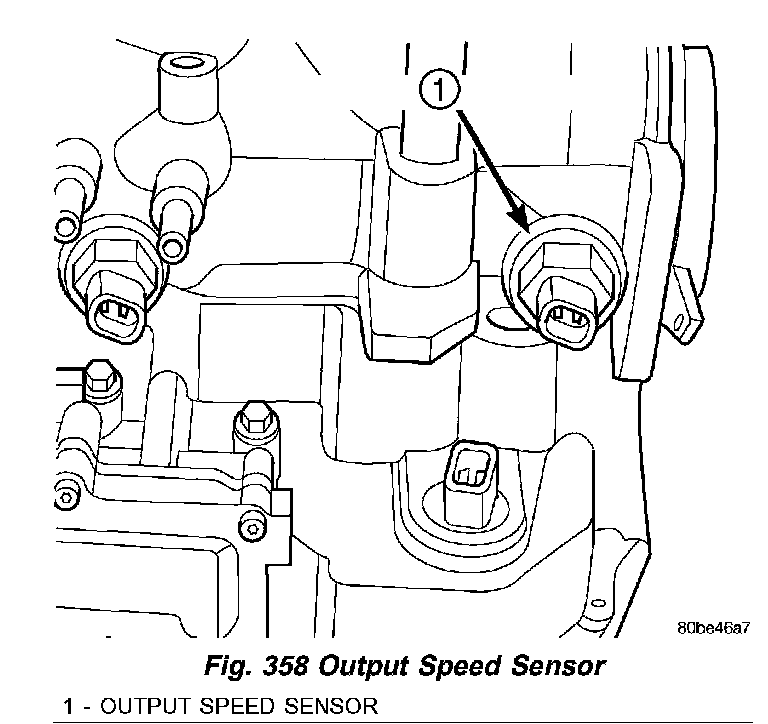

Fig.358 Output Speed Sensor:

(2) Install and tighten output speed sensor (1) (Fig. 358) to 27 Nm (20 ft. lbs.).

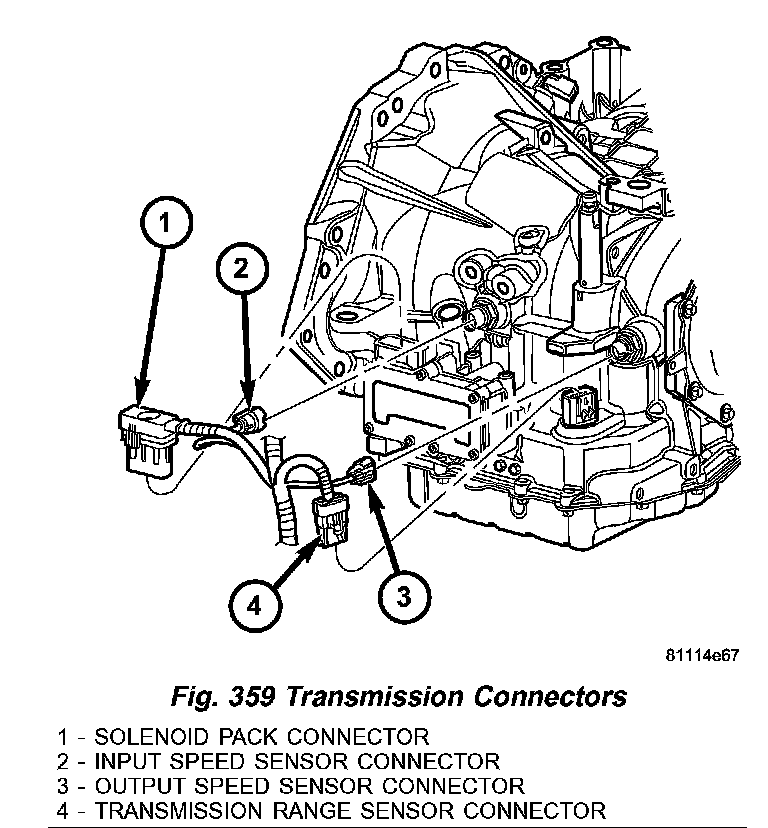

Fig.359 Transmission Connectors:

(3) Connect output speed sensor connector (3) (Fig. 359).
(4) Connect battery negative cable.
