40TE Automatic Transaxle

40TE AUTOMATIC TRANSAXLE

SEAL - OIL PUMP

REMOVAL
(1) Remove transaxle from vehicle.

Fig.301 Remove Oil Pump Seal:

(2) Using Seal Puller C-3981-B (1) (Fig. 301), remove oil pump seal (2).

INSTALLATION

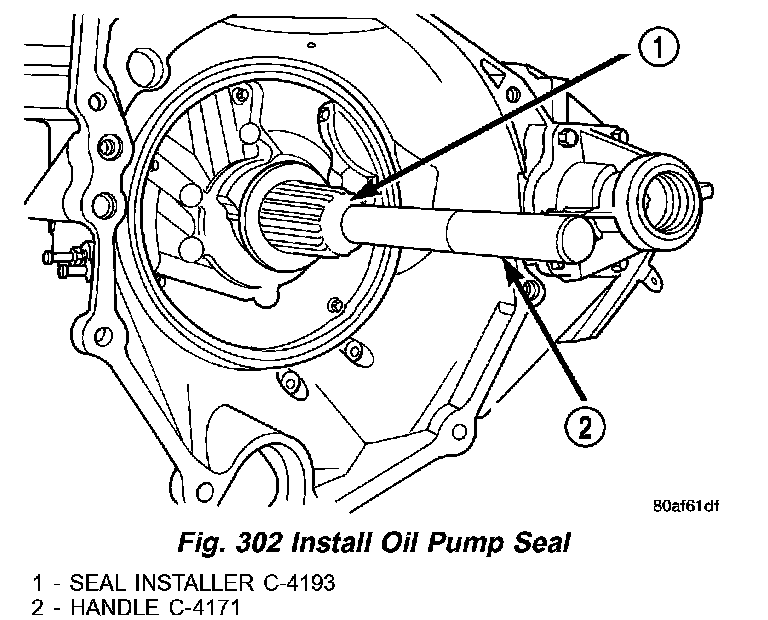

Fig. 302 Install Oil Pump Seal:

(1) Using Seal Installer C-4193 (1) (Fig. 302), install oil pump seal (2).
(2) Install transaxle to vehicle.
