Speed Sensor - Output

41TE AUTOMATIC TRANSAXLE

SPEED SENSOR - OUTPUT

DESCRIPTION

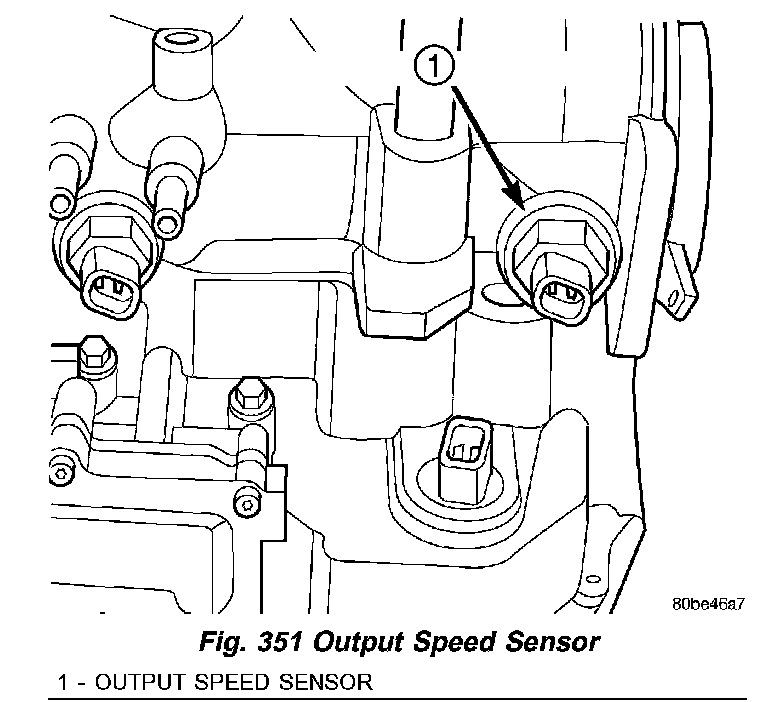

Fig.351 Output Speed Sensor:

The Output Speed Sensor (1) (Fig. 351) is a two-wire magnetic pickup device that generates an AC signal as rotation occurs. It is threaded into the transaxle case.

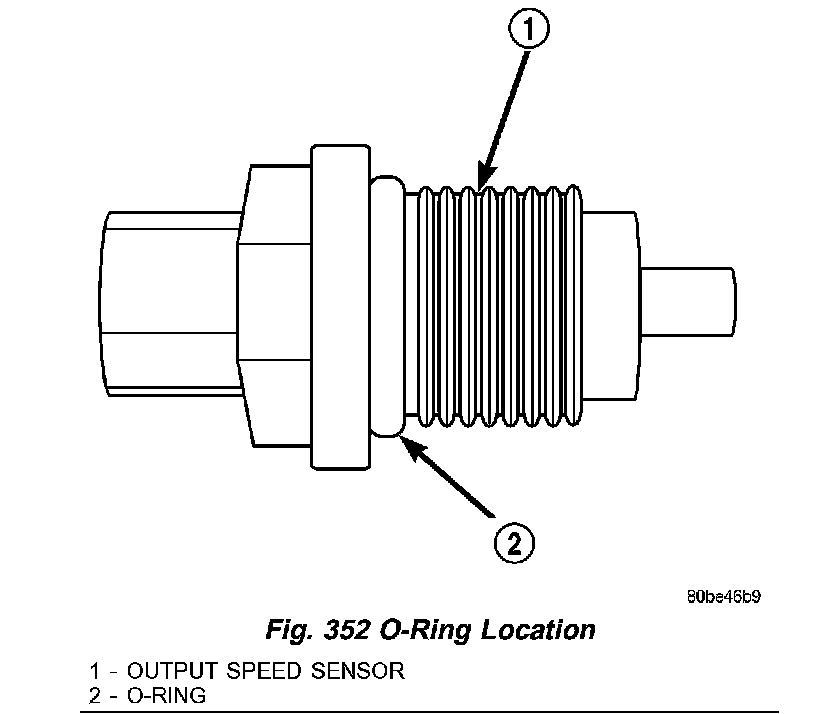

Fig.352 O-Ring Location:

The Output Speed Sensor (1) is sealed with an O-ring (2) (Fig. 352), and is considered a primary input to the Powertrain/Transmission Control.

OPERATION

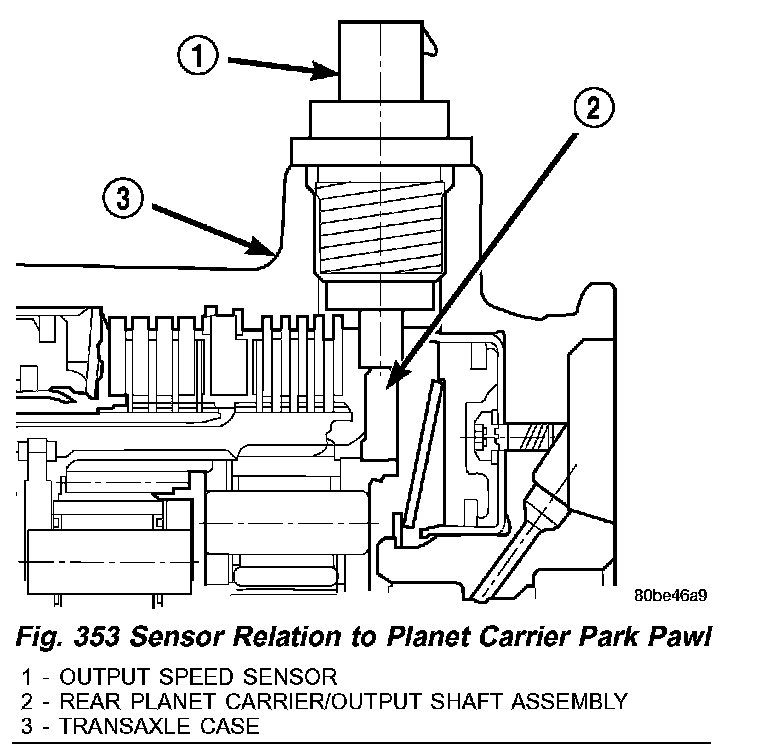

Fig.353 Sensor Relation To Planet Carrier Park Pawl:

The Output Speed Sensor (1) (Fig. 353) provides information on how fast the output shaft is rotating. As the rear planetary carrier park pawl lugs pass by the sensor coil, an AC voltage is generated and sent to the PCM/TCM. The PCM/TCM interprets this information as output shaft rpm.

The PCM/TCM compares the input and output speed signals to determine the following:
- Transmission gear ratio
- Speed ratio error detection
- CVI calculation

VEHICLE SPEED SIGNAL
The vehicle speed signal is taken from the Output Speed Sensor. The PCM converts this signal into a pulse per mile signal and sends the vehicle speed message across the communication bus to the BCM. The BCM sends this signal to the Instrument Cluster to display vehicle speed to the driver. The vehicle speed signal pulse is roughly 8000 pulses per mile.
