Rearward Lateral Link

REAR SUSPENSION

REMOVAL - REARWARD LATERAL LINK

CAUTION: Do not attempt to straighten or repair a lateral link. Do not apply heat to the lateral link adjusting screws or to the jam nuts for any reason.

NOTE: The rear suspension lateral links are only serviced as complete assemblies. The isolator bushings used in the lateral links are not serviced as separate components.

(1) Raise and support vehicle.
(2) Remove the wheel and tire assembly.

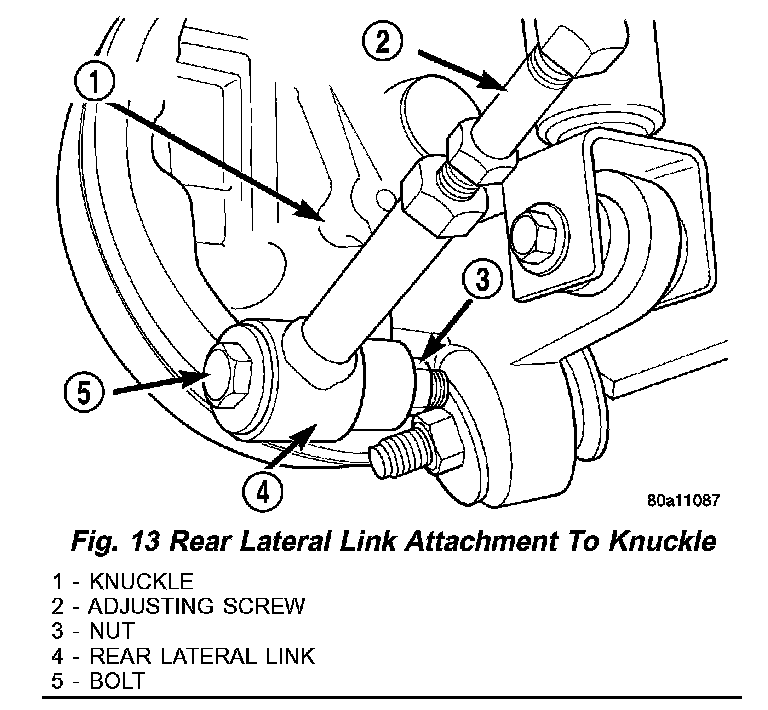

Fig.13 Rear Lateral Link Attachment To Knuckle:

(3) Remove the nut, bolt and washer attaching the lateral link to the knuckle (Fig. 13).

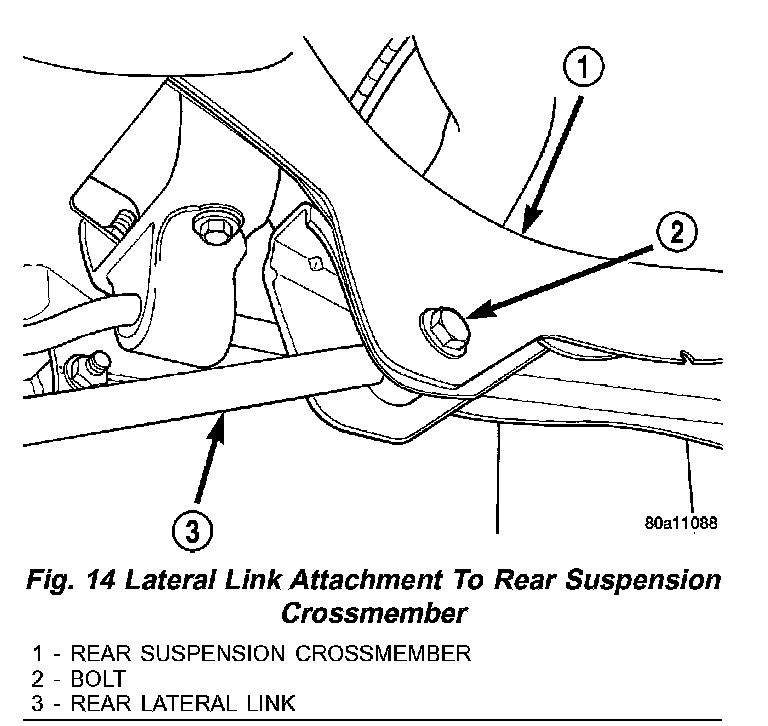

Fig. 14 Lateral Link Attachment To Rear Suspension Crossmember:

(4) Remove the bolt and nut attaching the lateral link to the rear suspension crossmember (Fig. 14).
(5) Remove rearward lateral link from the vehicle.
