Rear Isolator Bushing

FRONT SUSPENSION

LOWER CONTROL ARM

DISASSEMBLY - REAR ISOLATOR BUSHING
To perform removal and replacement of the lower control arm isolator bushings, the lower control arm must be removed from the vehicle.

(1) Remove lower control arm assembly from vehicle.

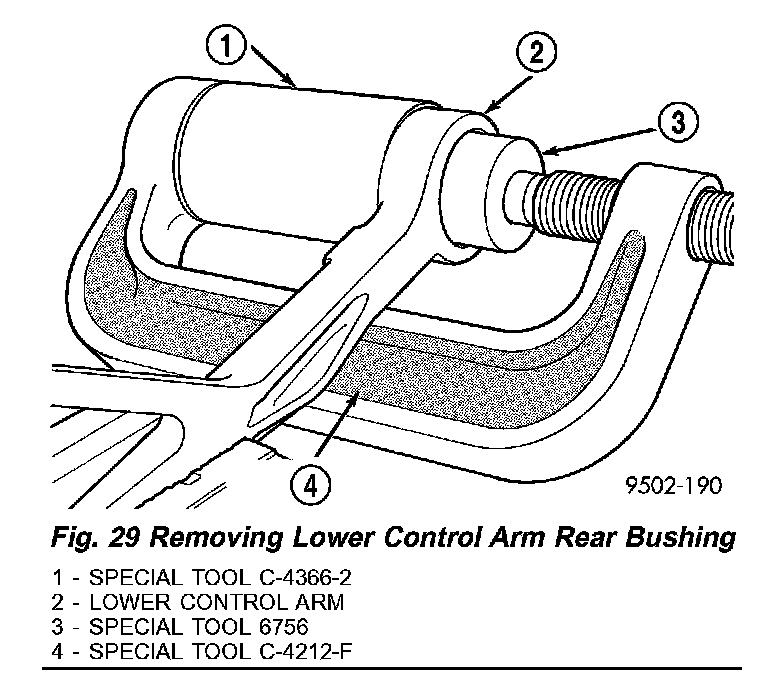

Fig.29 Removing Lower Control Arm Rear Bushing:

(2) Install Bushing Remover, Special Tool 6756 and Bushing Receiver, Special Tool C-4366-2 on Special Tool C-4212-F (Fig. 29).
(3) Install Special Tools assembled for removal of the rear isolator bushing on the lower control arm. Be sure Special Tool C-4366-2 is square on lower control arm and Special Tool 6756 is positioned correctly on isolator bushing (Fig. 29).
(4) Tighten screw on Remover/Installer Special Tool C-4212-F to press rear bushing out of lower control arm.
