Service Specifications

SPECIFICATIONS
2.4L ENGINE

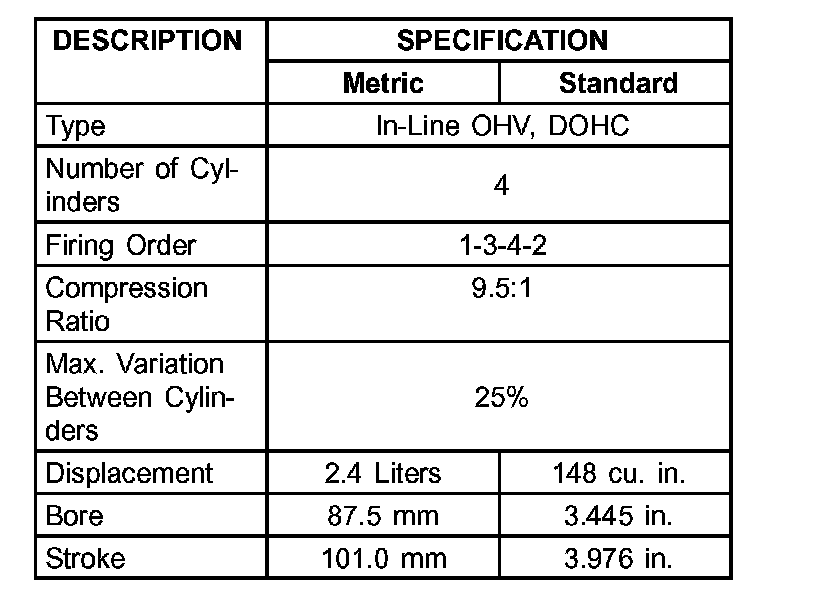

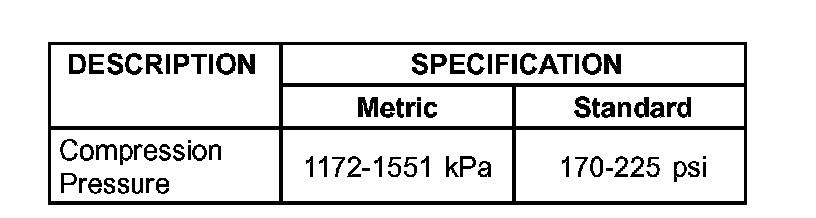

GENERAL SPECIFICATIONS:

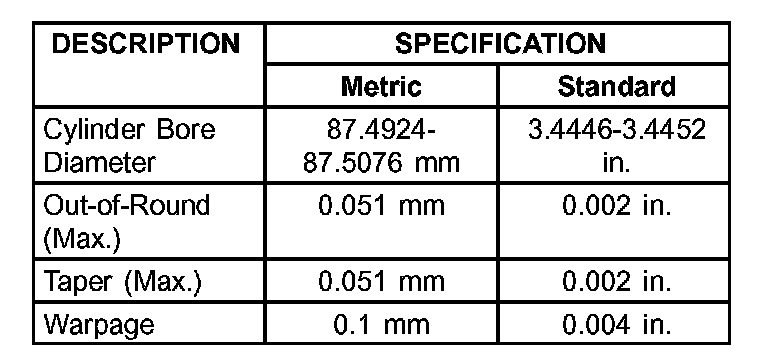

CYLINDER BLOCK:

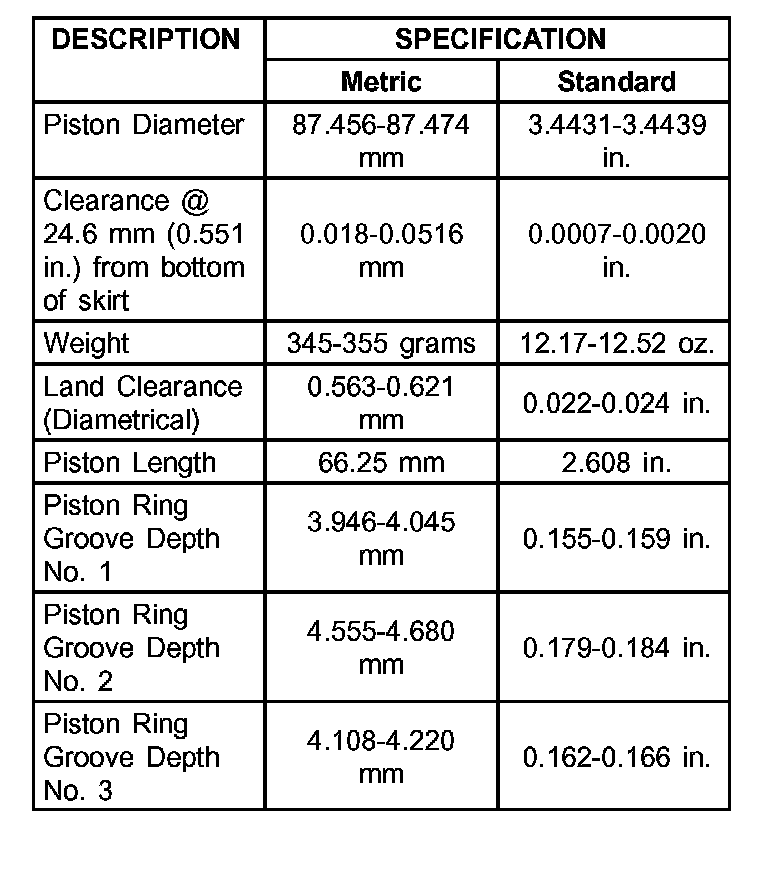

PISTONS:

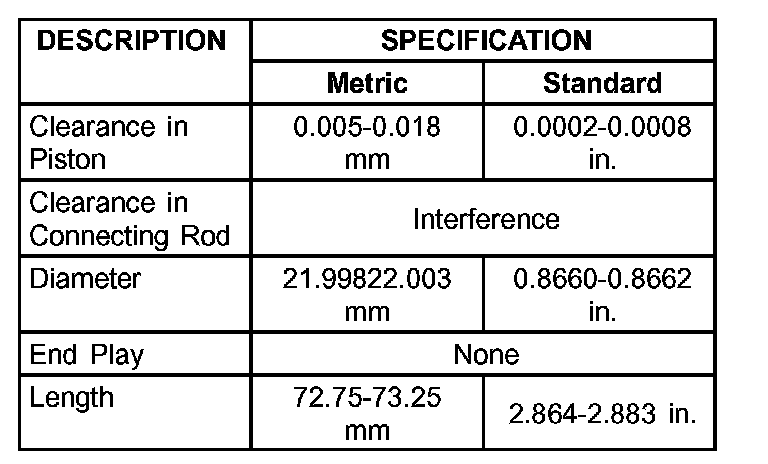

PISTON PINS:

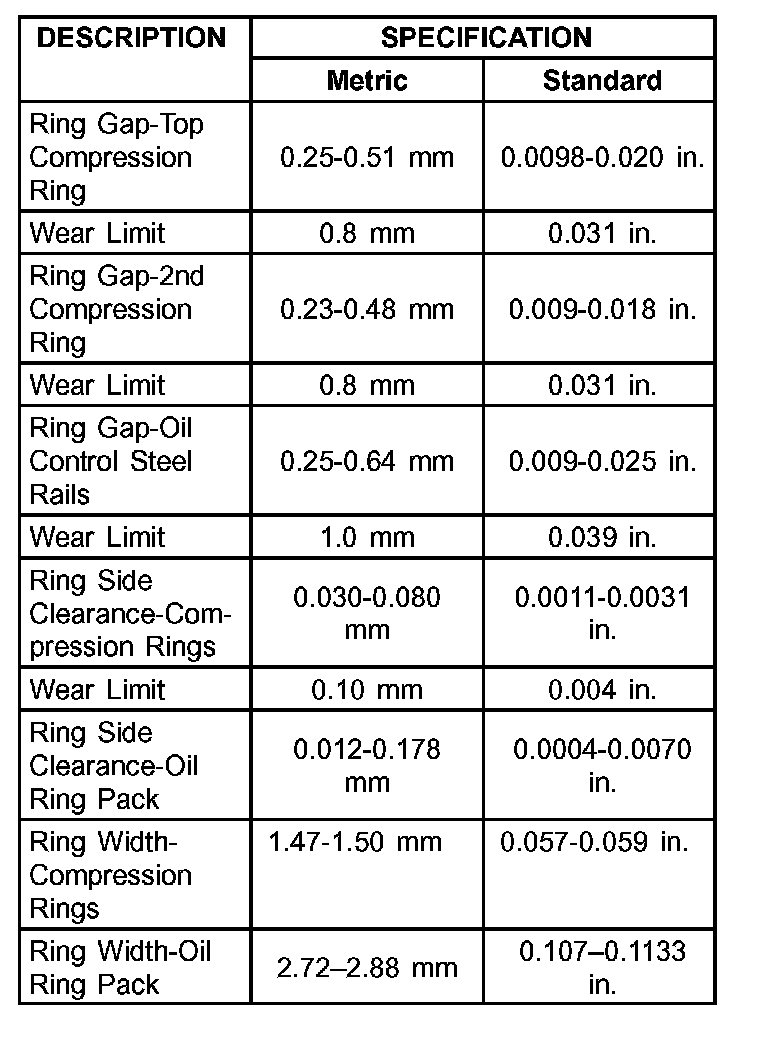

PISTON RINGS:




CONNECTING ROD:

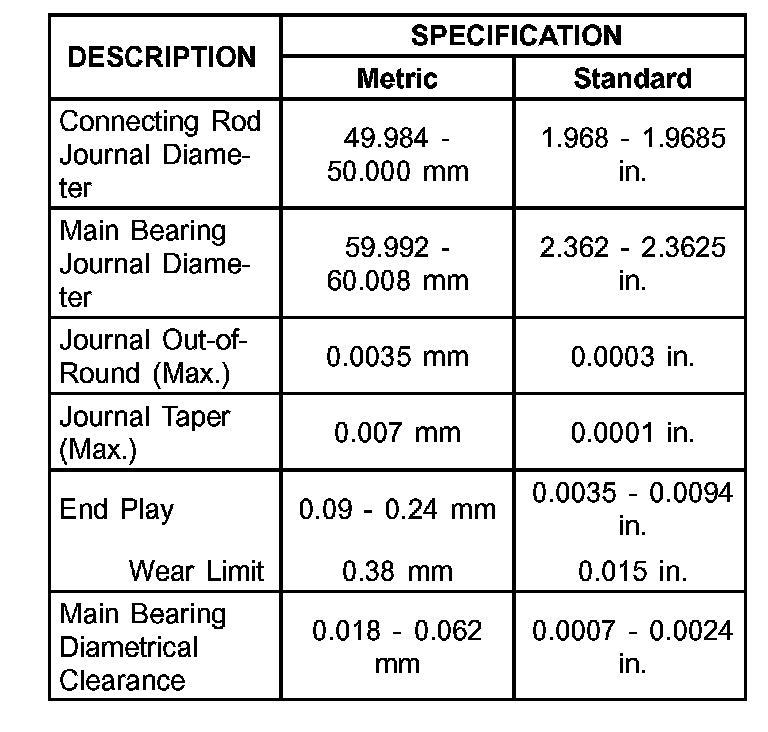

CRANKSHAFT:

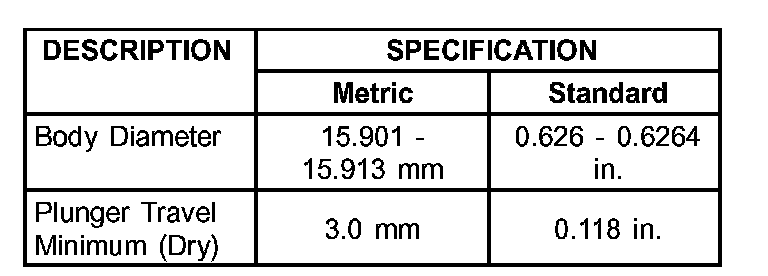

HYDRAULIC LASH ADJUSTER:

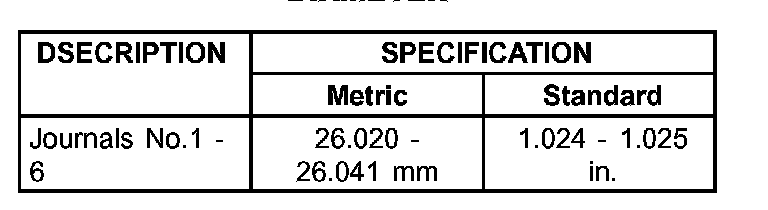

CYLINDER HEAD CAMSHAFT BEARING BORE DIAMETER:

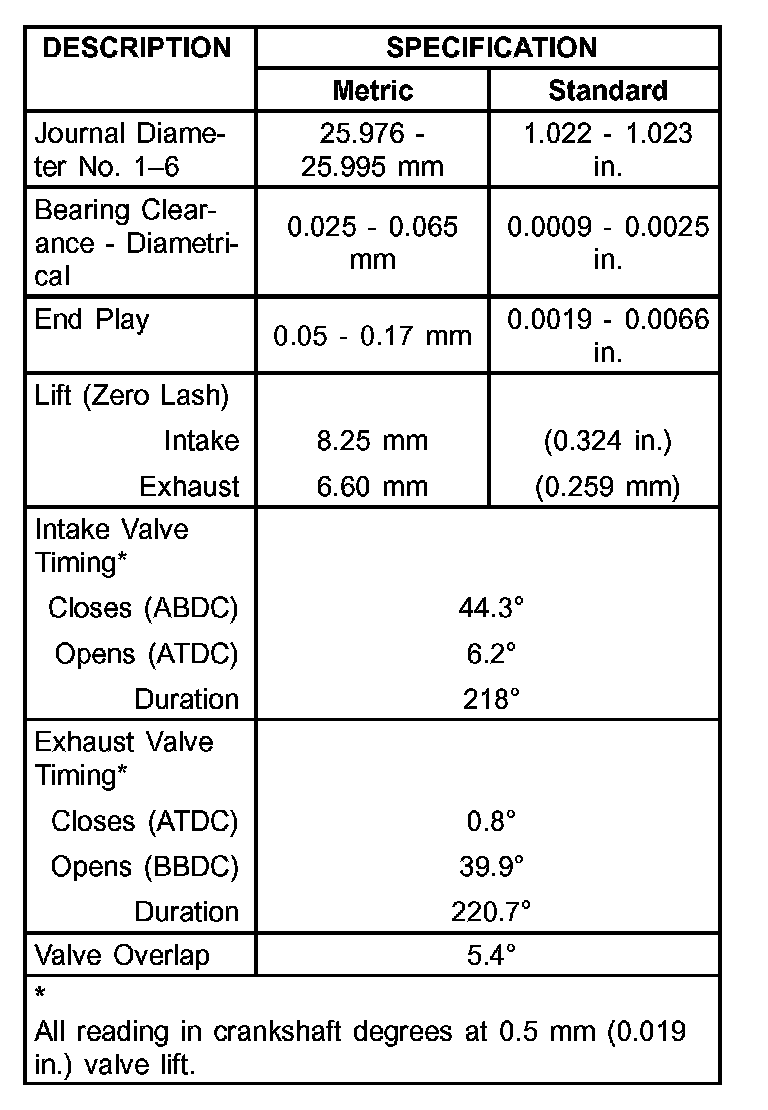

CAMSHAFT:

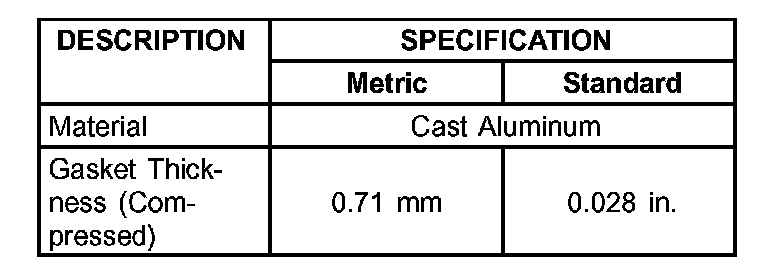

CYLINDER HEAD:

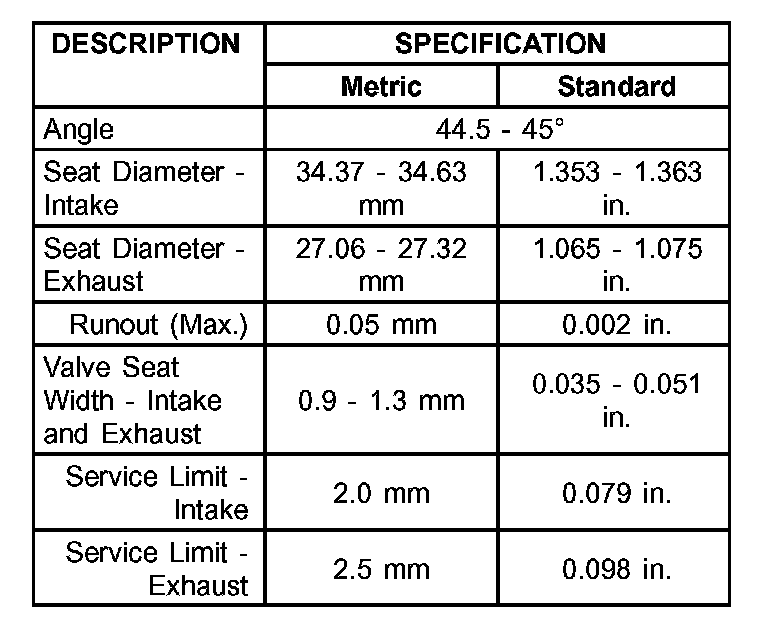

VALVE SEAT:

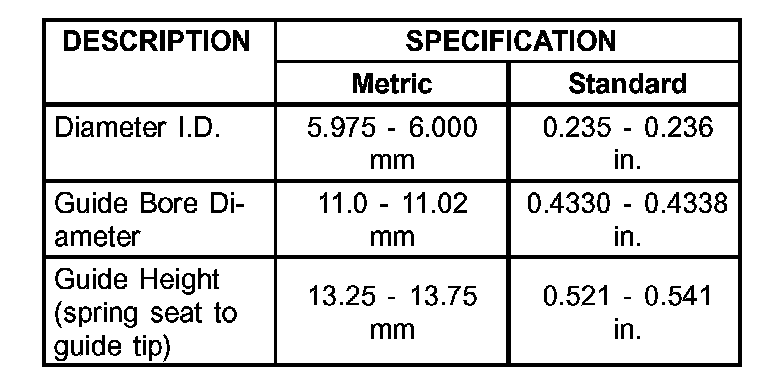

VALVE GUIDE:

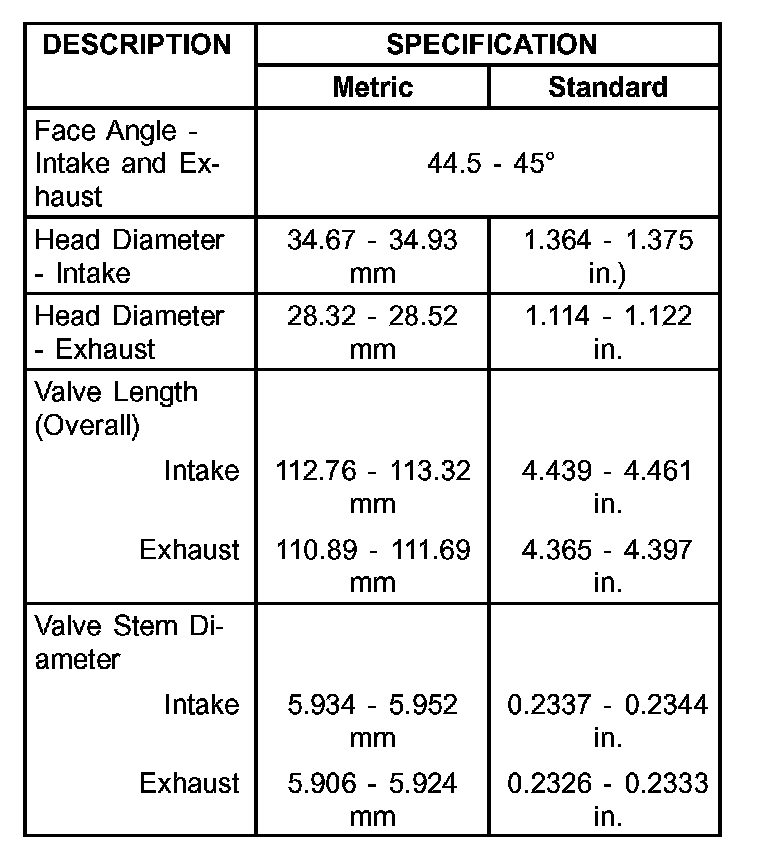

VALVES:




VALVE MARGIN:

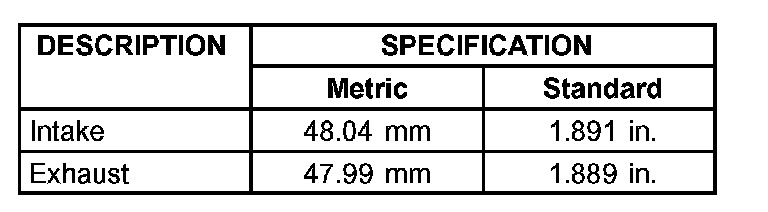

VALVE STEM TIP HEIGHT:

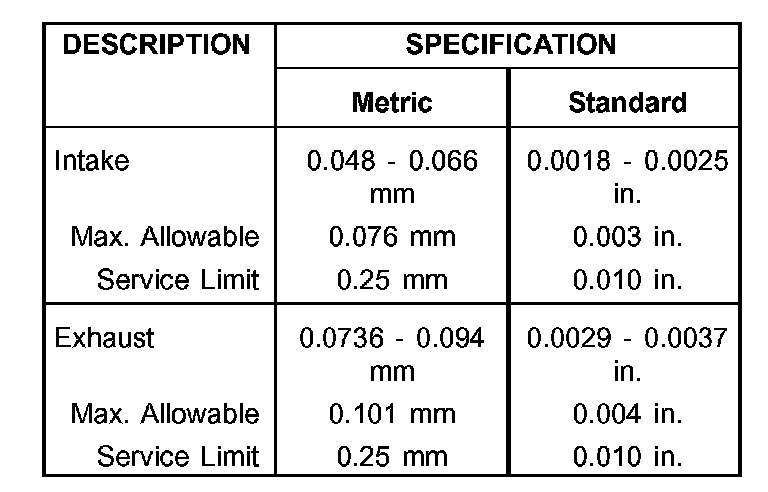

VALVE STEM TO GUIDE CLEARANCE:

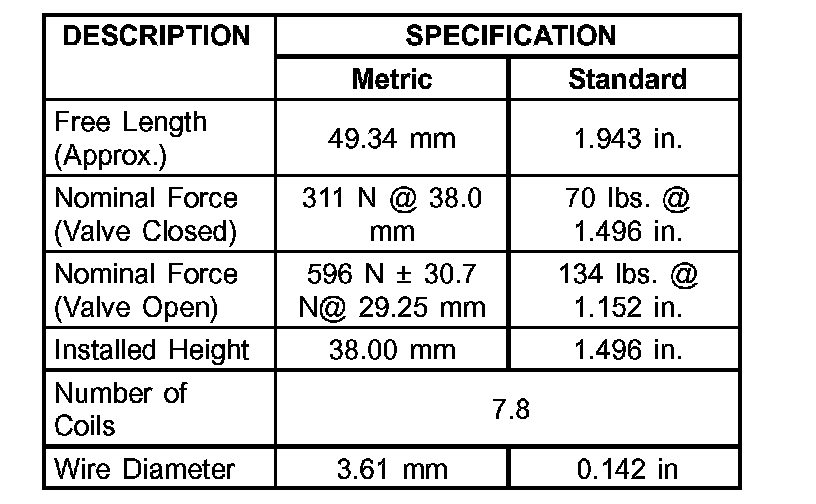

VALVE SPRINGS:

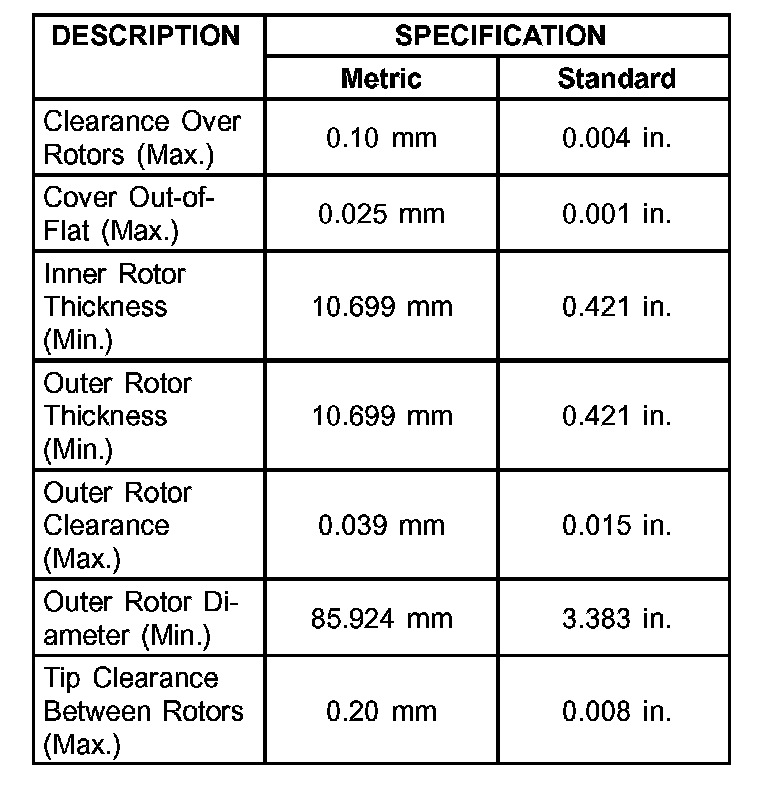

OIL PUMP:




OIL PRESSURE:
