Symptom Related Diagnostic Procedures

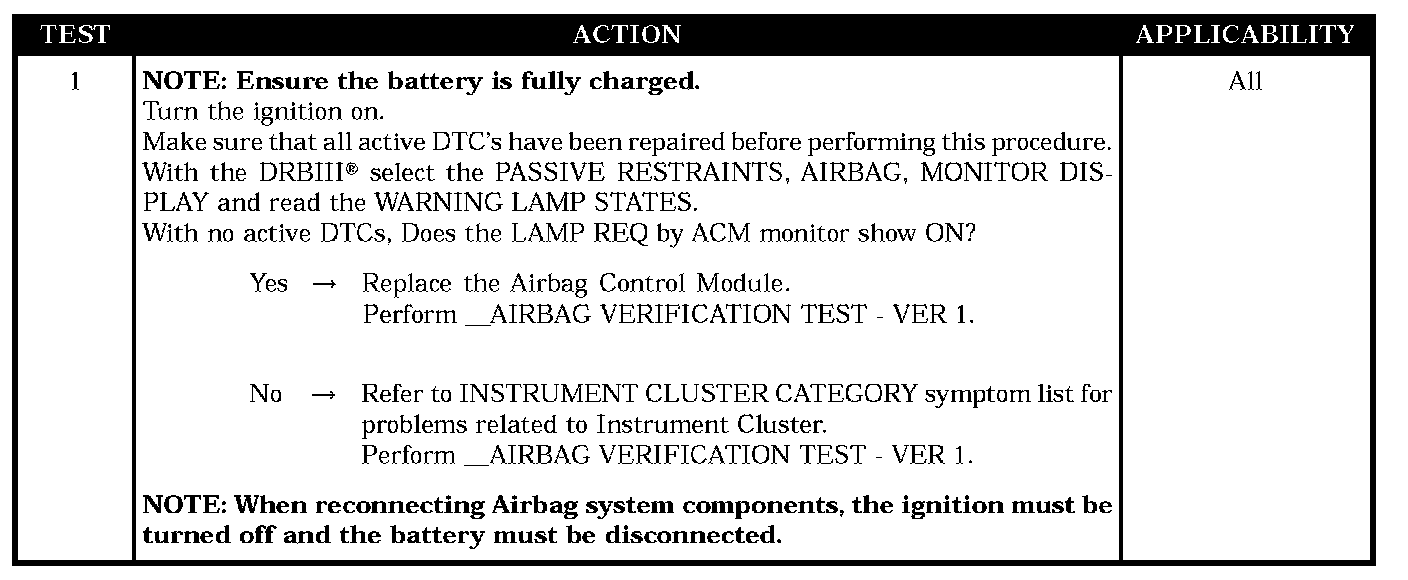

Test 1:






SYMPTOM
AIRBAG INDICATOR ON WITHOUT ACTIVE TROUBLE CODES

POSSIBLE CAUSES
- Airbag warning indicator on without active trouble codes
- Instrument cluster problems
