Transmission Noisy With No DTCS Present

Symptom: *TRANSMISSION NOISY WITH NO DTC's PRESENT

POSSIBLE CAUSES
- INTERNAL TRANSMISSION PROBLEM - NOISY
- INTERNAL TRANSMISSION PROBLEM - NOISY WHILE STANDING STILL

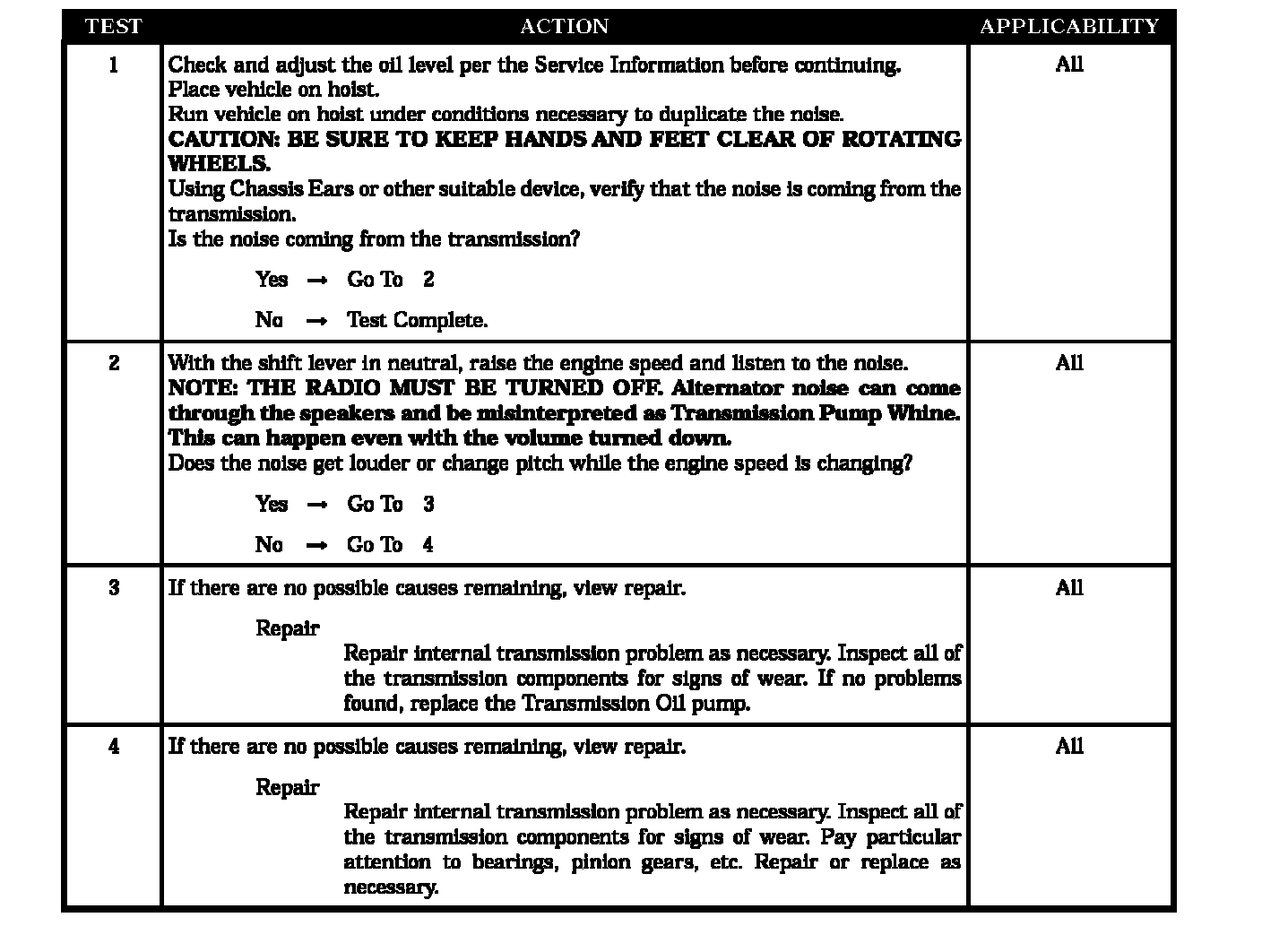

Test 1 - Test 4:
