DRBIII State Display Test Mode
>>

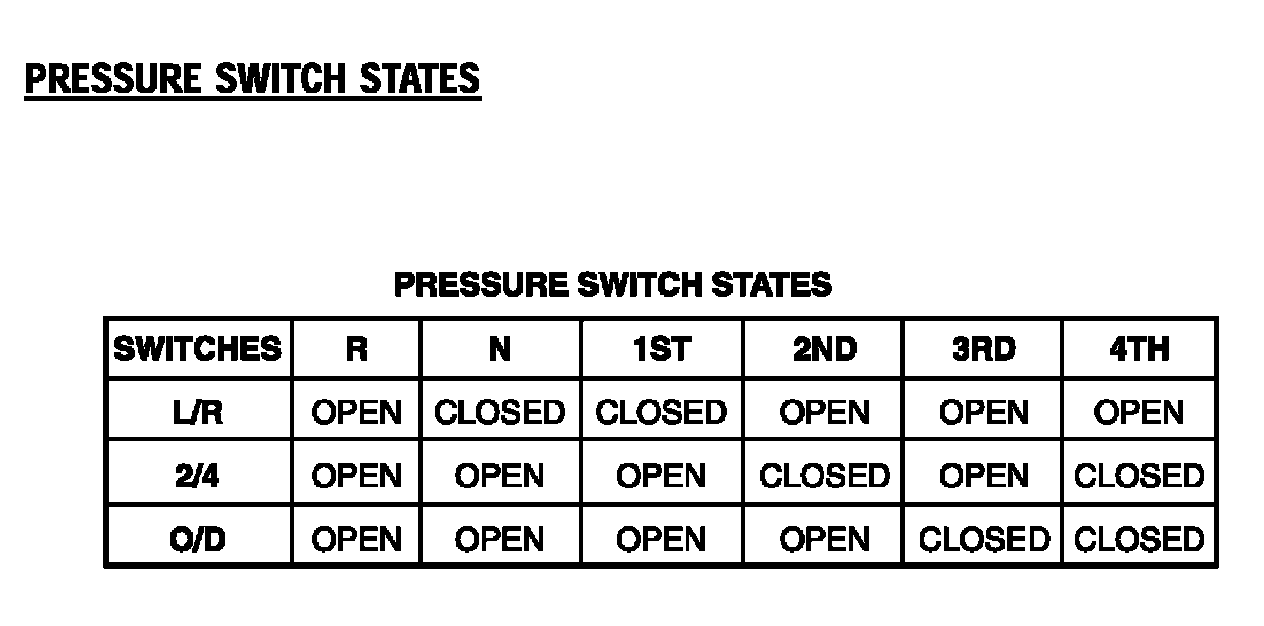

Pressure Switch States
Pressure Switch States
PRESSURE SWITCH STATES:
