Vehicle Speed Sensor: Service and Repair

T350 MANUAL TRANSAXLE

VEHICLE SPEED SENSOR

REMOVAL
(1) Raise vehicle on hoist.

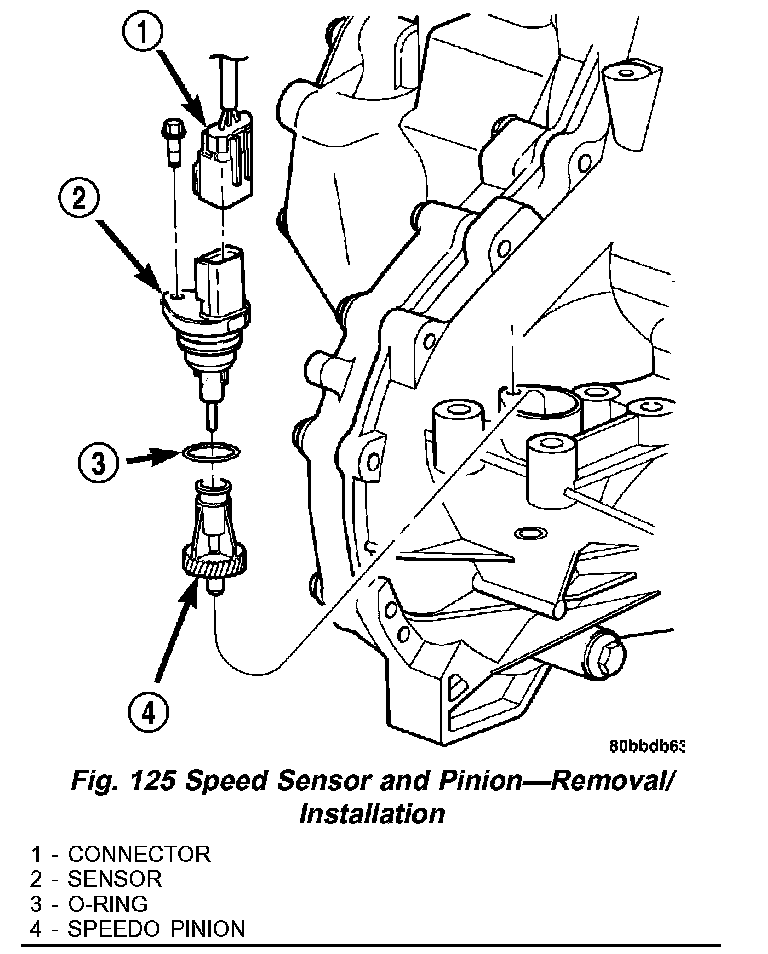

Fig.125 Speed Sensor And Pinion-Removal/Installation:

(2) Disconnect the speed sensor connector (1) (Fig. 125).

CAUTION: Clean area around speed sensor before removing to prevent dirt from entering the transaxle during speed sensor removal.

(3) Remove speed sensor retaining bolt.
(4) Remove speed sensor from transaxle.

CAUTION: Carefully remove vehicle speed sensor so that sensor drive gear does not fall into transaxle. Should sensor drive gear fall into the transaxle during sensor removal, drive gear must be reattached to sensor.

(5) Remove speed sensor drive gear from speed sensor.

INSTALLATION

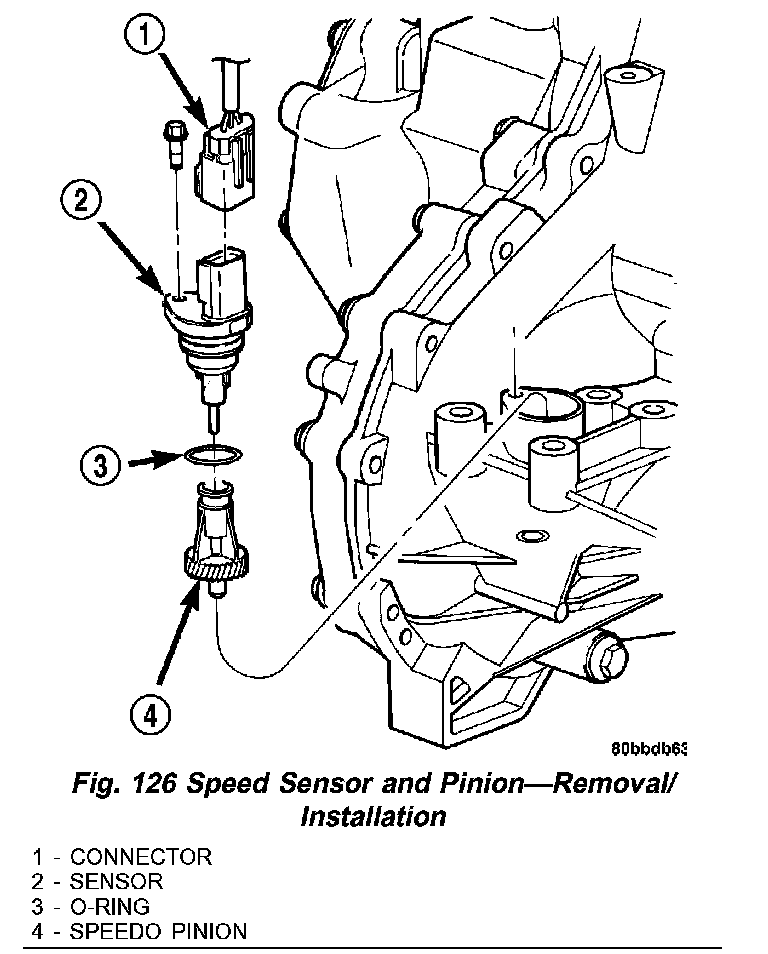

Fig.126 Speed Sensor And Pinion-Removal/Installation:

(1) Install pinion gear to speed sensor (1) (Fig. 126).
(2) Using a NEW O-ring (3), install the speed sensor (2) to the transaxle.
(3) Install the bolt and torque to 7 Nm (60 inch lbs.).
(4) Connect speed sensor connector (1).
(5) Lower vehicle and road test to verify proper speedometer operation.
