Checking the A/C Relay Output

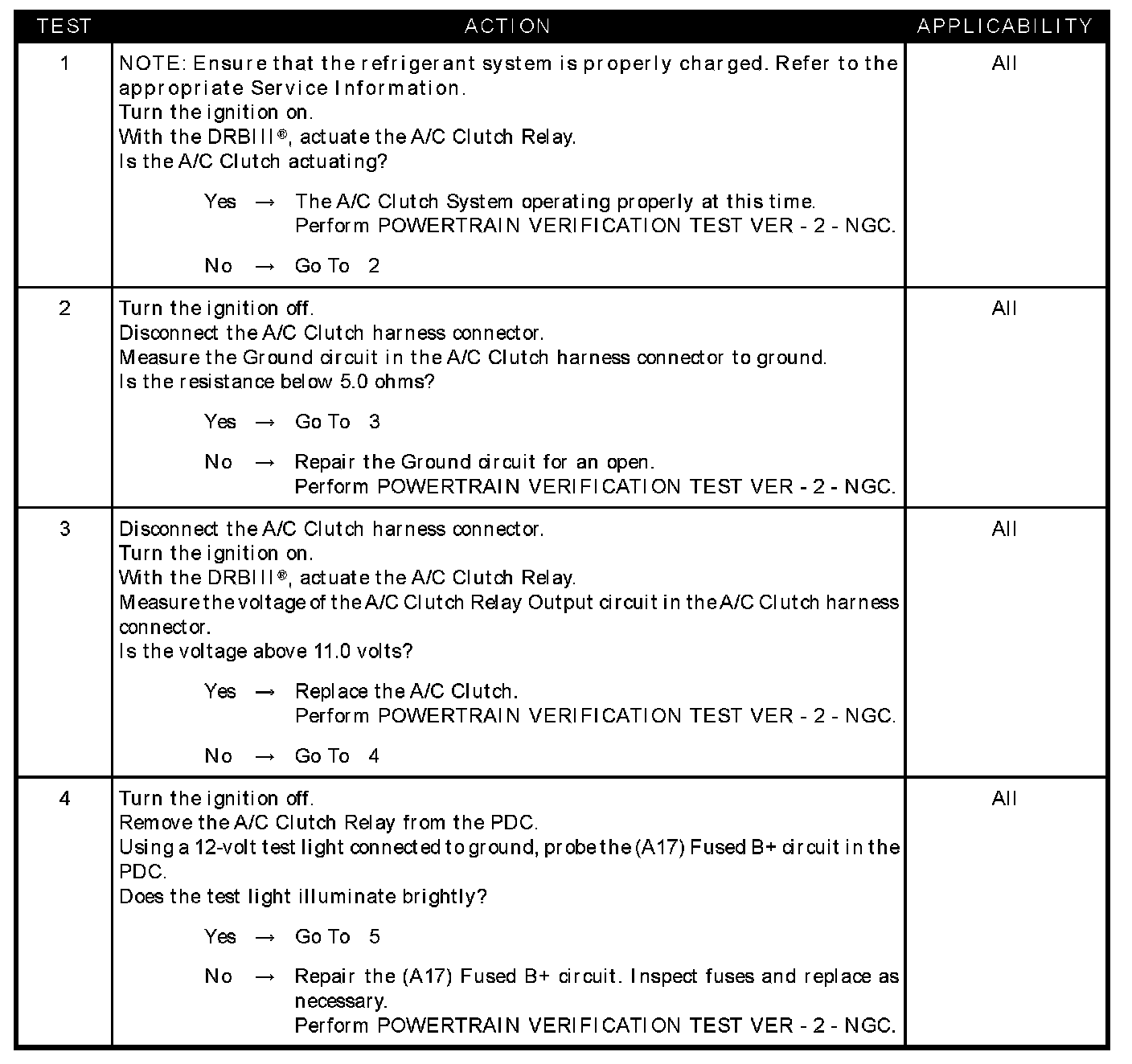

Test 1 - Test 4:

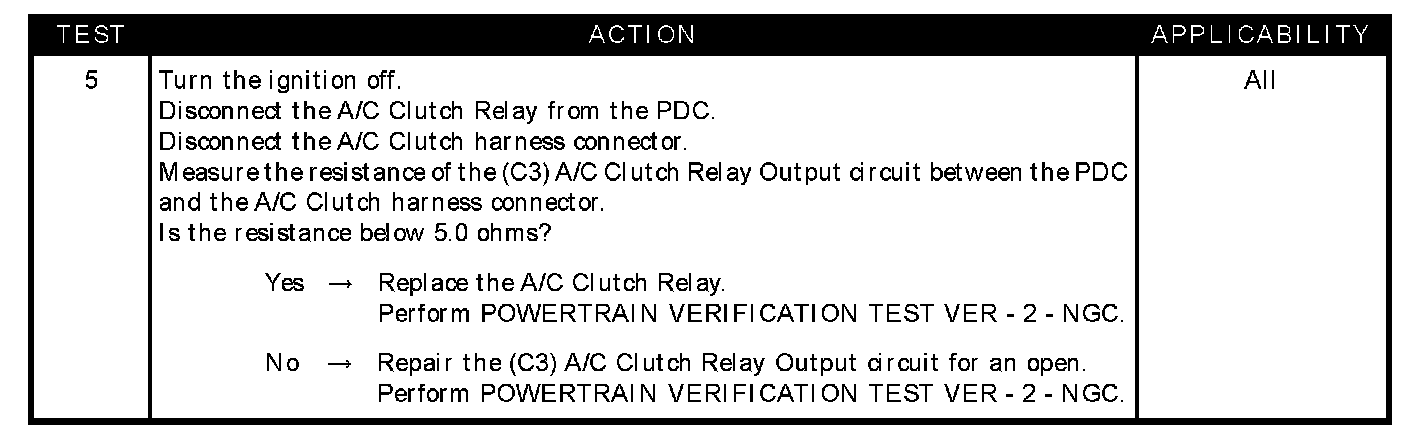

Test 5:

SYMPTOM
CHECKING THE A/C RELAY OUTPUT

POSSIBLE CAUSES
- A/C clutch relay operation
- Ground circuit open
- A/C clutch
- (A17) Fused B+ circuit
- (C3) A/C clutch output circuit
- A/C clutch relay
