Drive Belt: Description and Operation

DRIVE BELTS

DESCRIPTION

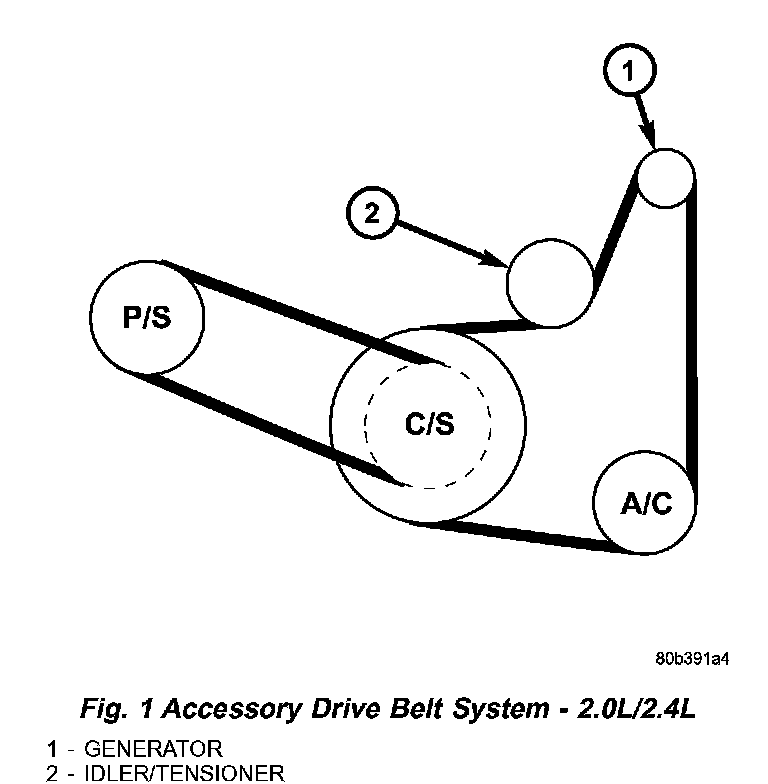

Fig. 1:

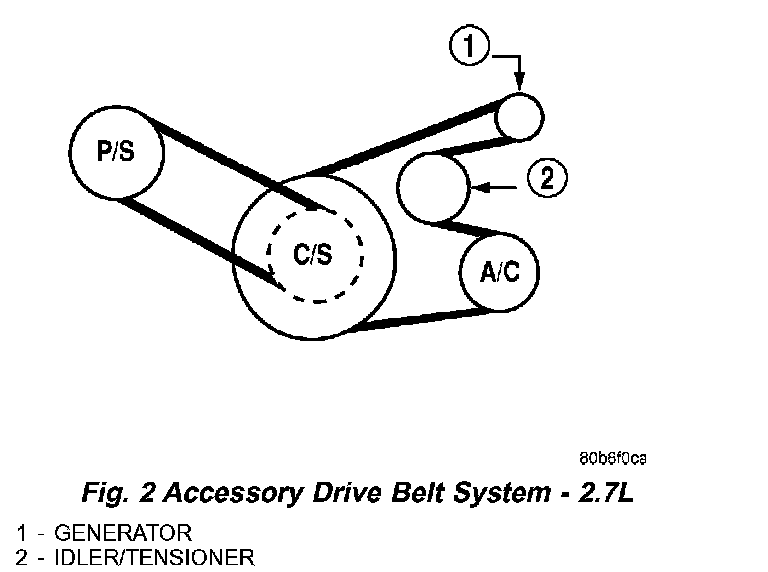

Fig. 2:

The accessory drive consists of two Poly-V type belts (Fig. 1) or (Fig. 2). One belt drives the power steering pump, the other drives the generator and air conditioning compressor. Both belts on the 2.7Lengine are manually tensioned. The power steering belt on the (2.0L/2.4L) engine is manually tensioned. The air conditioning/generator belt on the (2.0L/2.4L) engine has an automatic belt tensioner.
