Low Beam Headlamps Will Not Turn on

Test 1 - Test 4:

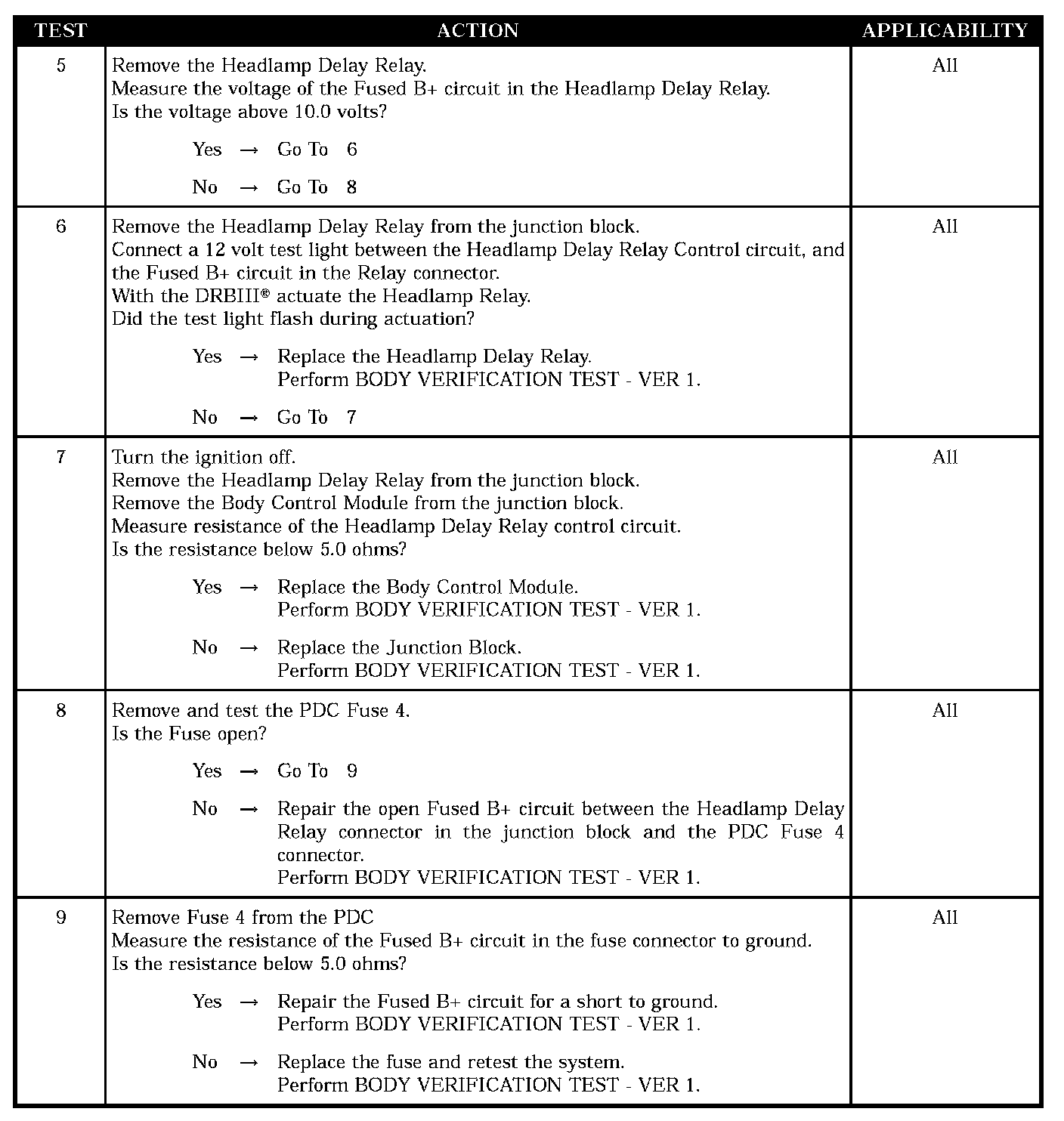

Test 5 - Test 9:

SYMPTOM
LOW BEAM HEADLAMPS WILL NOT TURN ON

POSSIBLE CAUSES
- Multifunction switch
- Junction block
- Fused low beam output circuit open
- Headlamp delay relay
- Headlamp delay relay
- Junction block
- Body control module
- Open fused B+ to junction block
- B+ circuit fuse
- Fused B+ circuit short to ground
