Horn: Service and Repair

HORN

REMOVAL
1. Disconnect and isolate the battery negative cable.
2. Remove right side headlamp unit.

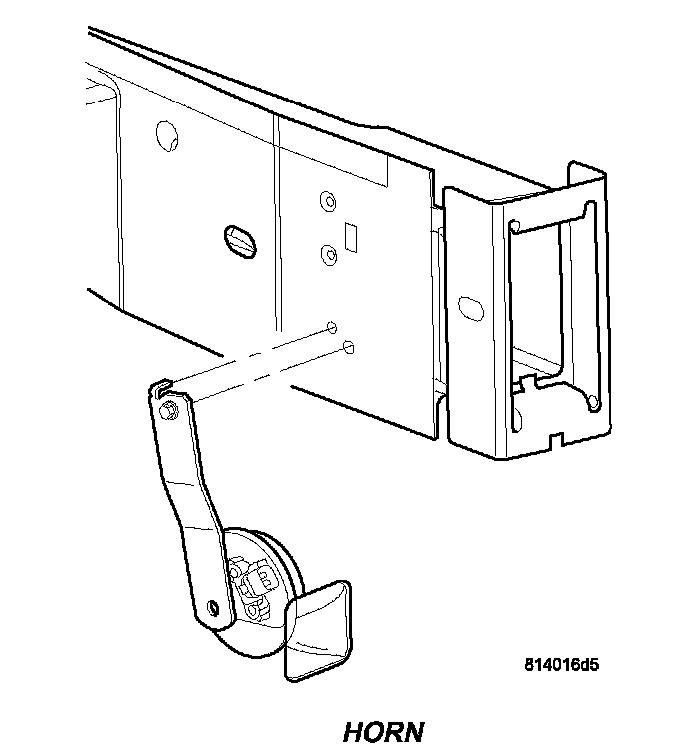

Horn:

3. Remove horn mounting bolt.
4. Disconnect wire harness connector and remove horn.

INSTALLATION
1. Connect wire harness connector.
2. Install horn mounting bolt.
3. Install right side headlamp unit.
4. Connect battery negative cable.
