Hazard Warning Lamps: Service and Repair

SIDE REPEATER LAMP UNIT -EXPORT

REMOVAL
1. Disconnect and isolate the battery negative cable.

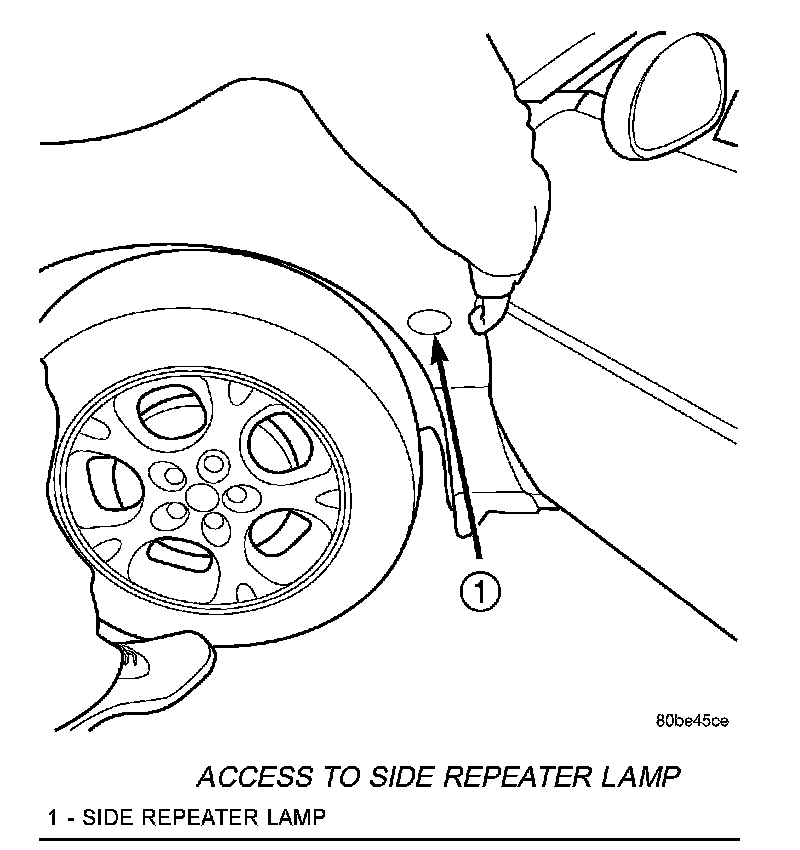

Access To Side Repeater Lamp:

2. Open door to gain access to the rear of side repeater lamp.
3. Depress upper and lower tabs on repeater lamp to release lamp from fender.

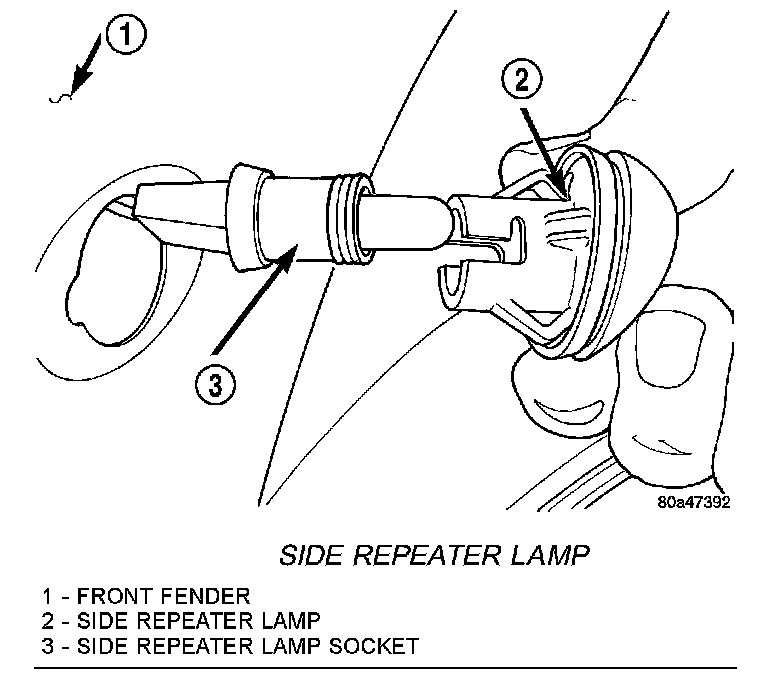

Side Repeater Lamp:

4. Rotate side repeater lamp socket counter clockwise and pull from lamp.
5. Remove bulb from socket.

INSTALLATION
1. Install lamp in socket.
2. Install side repeater lamp in lamp socket.
3. Install lamp into front fender opening.
4. Connect battery negative cable.
