Tachometer Not Operating Properly

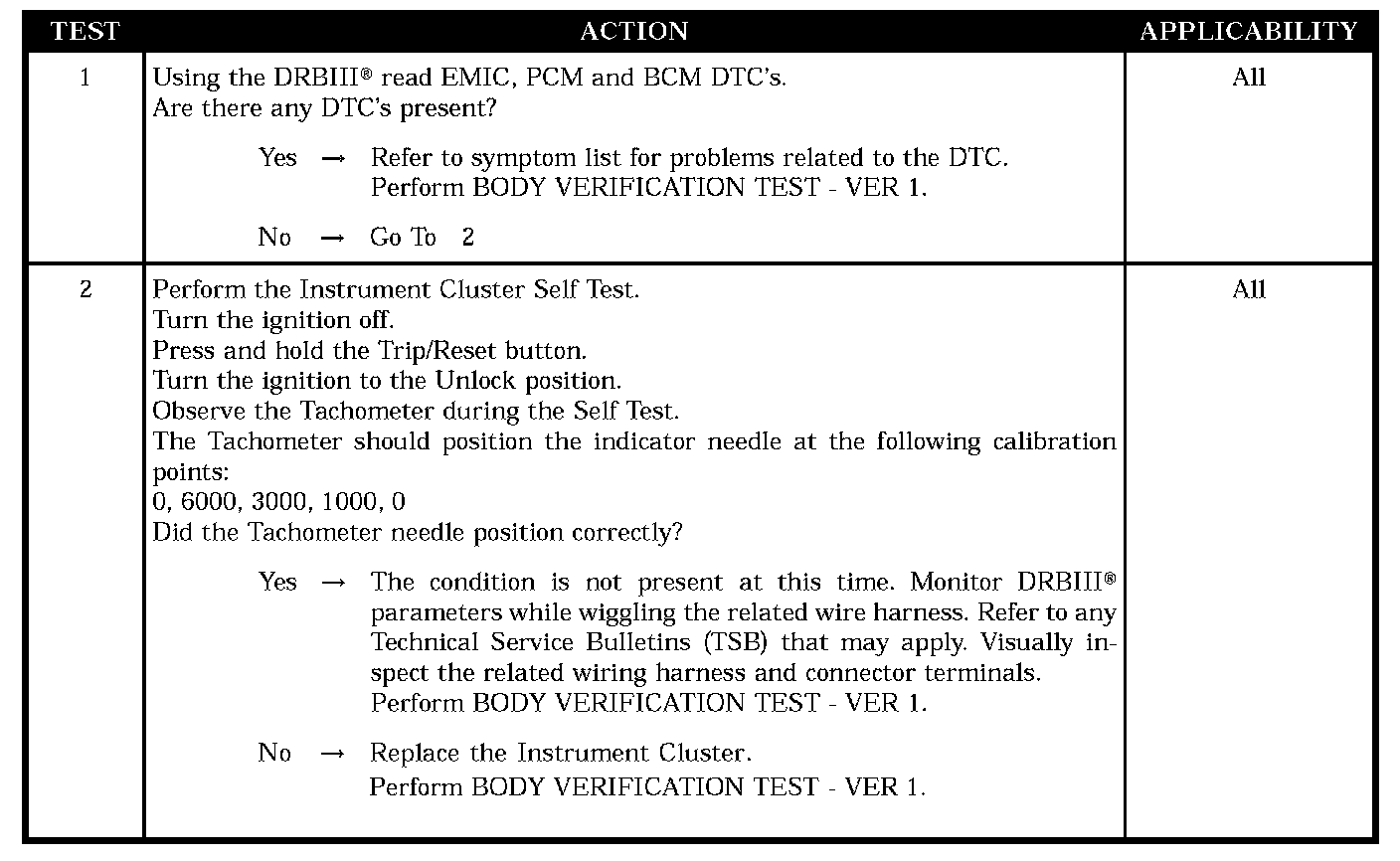

Test 1 - Test 2:






SYMPTOM
TACHOMETER NOT OPERATING PROPERLY

POSSIBLE CAUSES
- DTC present
- Intermittent condition
- Instrument cluster
