Engine Coolant Temperature Indicator Not Operating Properly

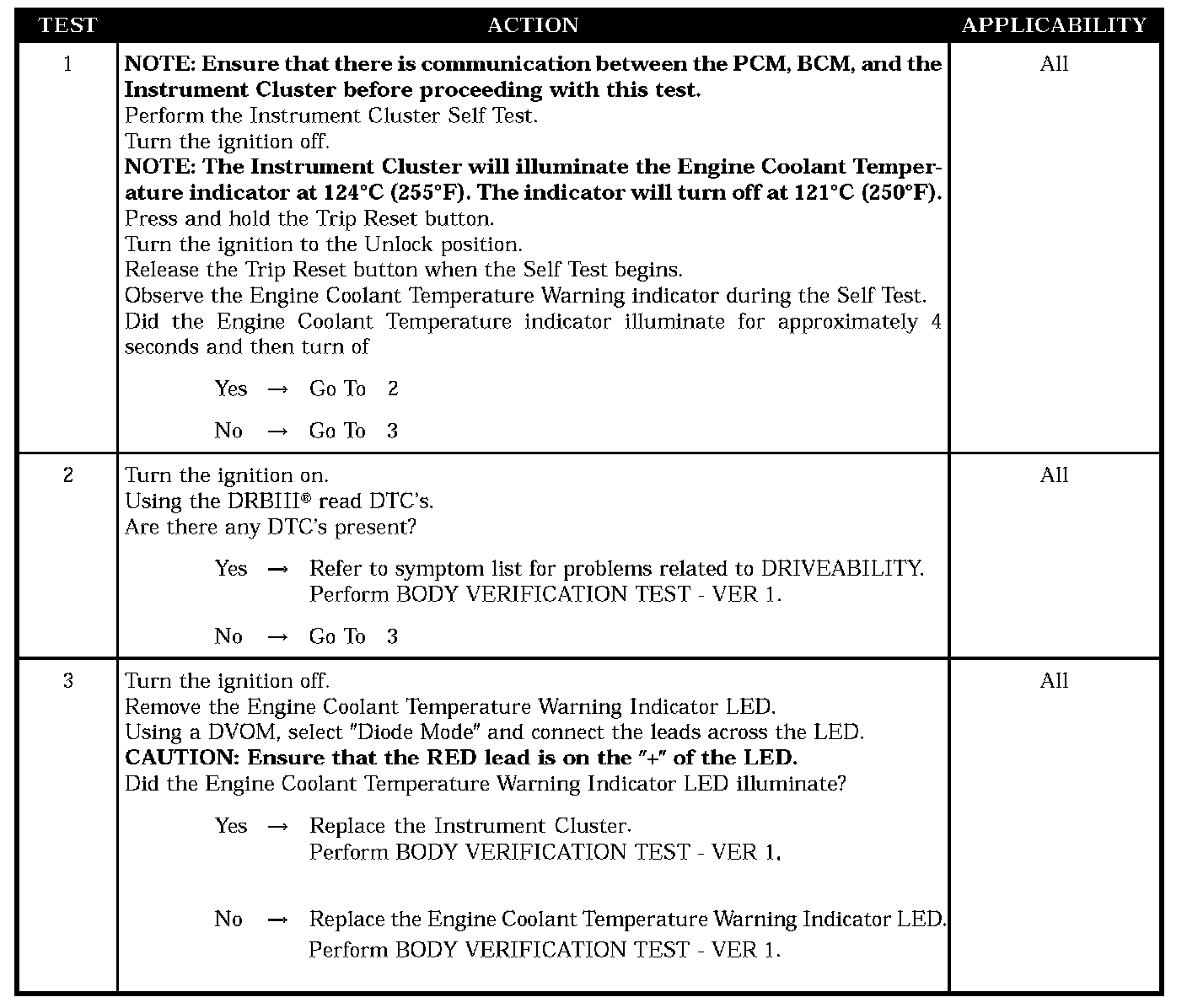

Test 1 - Test 3:






SYMPTOM
ENGINE COOLANT TEMPERATURE INDICATOR NOT OPERATING PROPERLY


POSSIBLE CAUSES
- DTC present
- Engine coolant temperature warning indicator LED
- Instrument cluster
