Cruise Engaged Indicator Inoperative
Cruise Engaged Indicator Inoperative

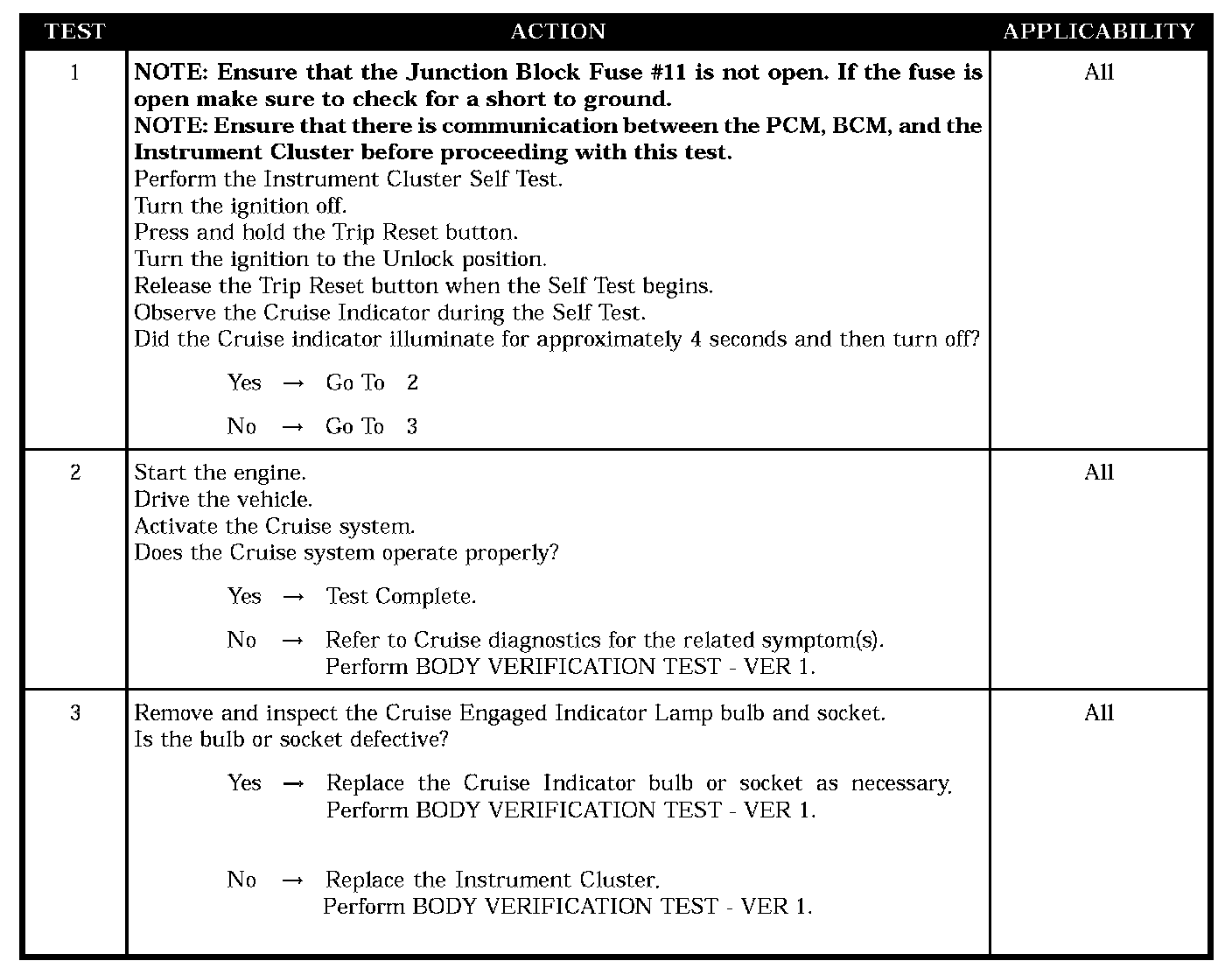

Test 1 - Test 3:
SYMPTOM
CRUISE ENGAGED INDICATOR INOPERATIVE
POSSIBLE CAUSES
-
No cruise operation
-
Indicator bulb
-
Instrument cluster
