Charging System Warning Indicator Not Operating Properly

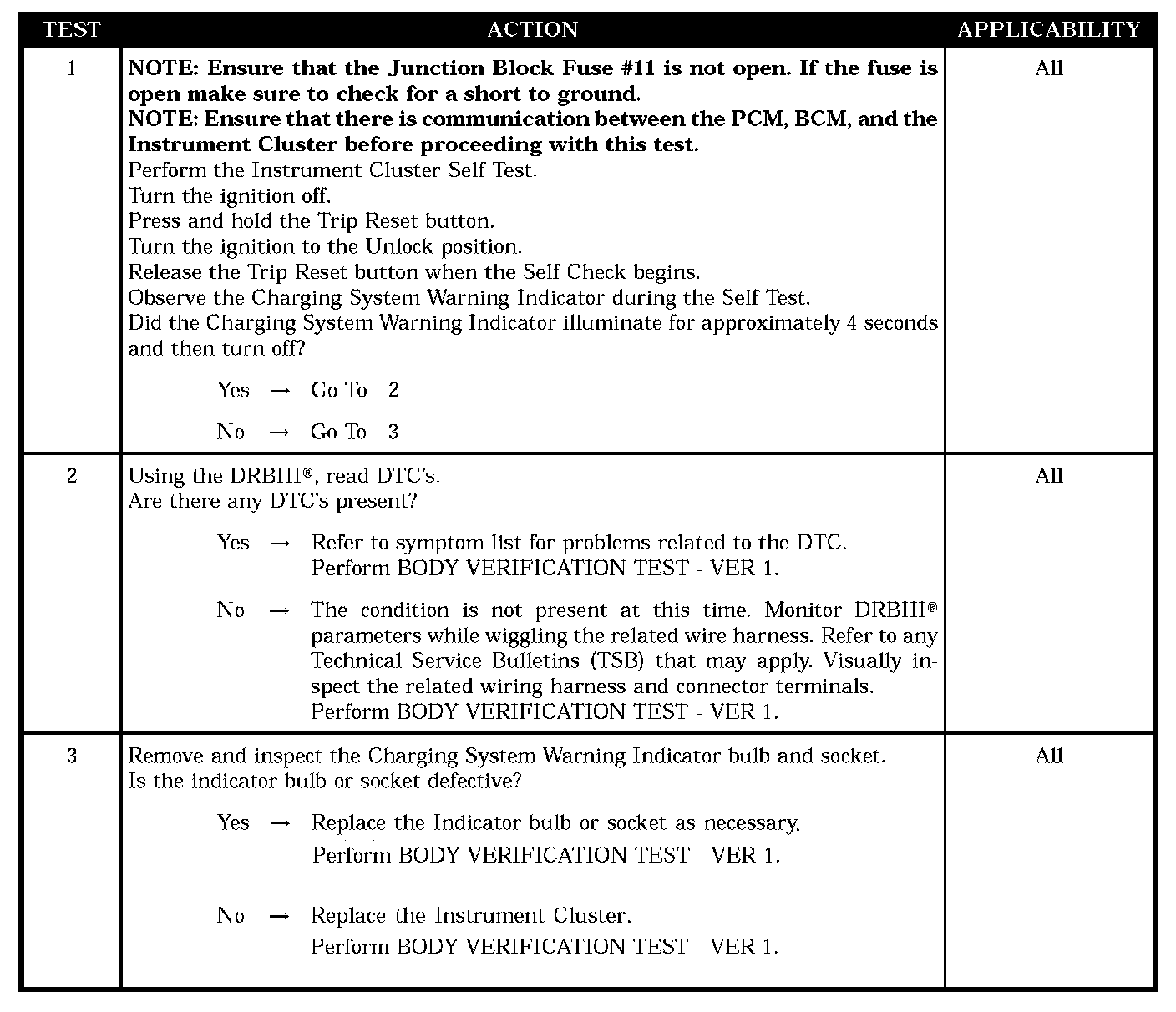

Test 1 - Test 3:






SYMPTOM
CHARGING SYSTEM WARNING INDICATOR NOT OPERATING PROPERLY

POSSIBLE CAUSES
- DTC present
- Intermittent condition
- Indicator bulb
- Instrument cluster
